Automatic Transaxle

VEHICLE SPEEDOMETER SENSOR REMOVAL/INSTALLATION [GF4A-EL]
1. Disconnect the negative battery cable.
2. Remove the battery component.
3. Remove the air cleaner component.
4. Disconnect the vehicle speedometer sensor connector.

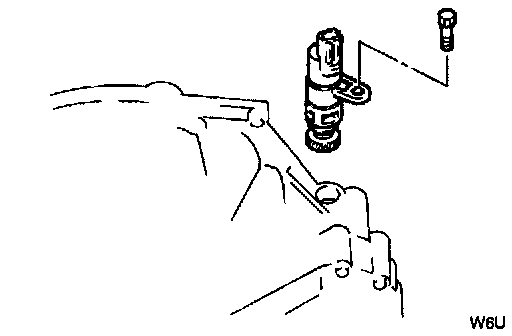

5. Remove the vehicle speedometer sensor.
6. Apply ATF to a new O-ring and install it on a new vehicle speedometer sensor.
7. Install the vehicle speedometer sensor.
Tightening torque 7.9 - 10.7 Nm (80 - 110 kgf-cm, 69.5 - 95.4 inch lbs.)
8. Connect the vehicle speedometer sensor connector.
9. Install the battery component.
10. Install the air cleaner component.
11. Connect the negative battery cable.
