Automatic Transaxle
VEHICLE SPEEDOMETER SENSOR INSPECTION [GF4A-EL] 1.

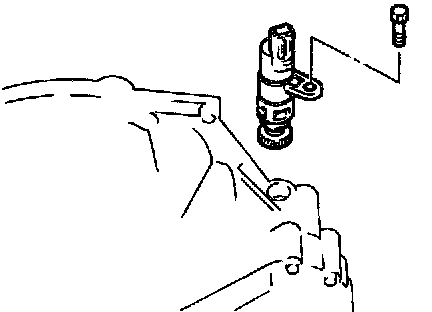

Remove the vehicle speedometer sensor.
1 of 2 2 of 2 2.

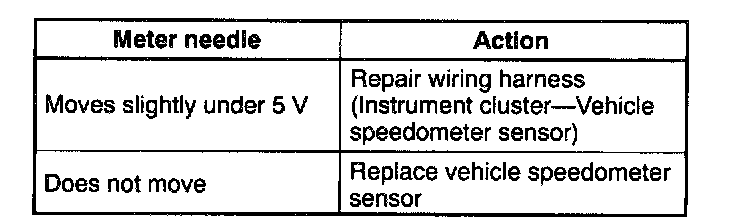

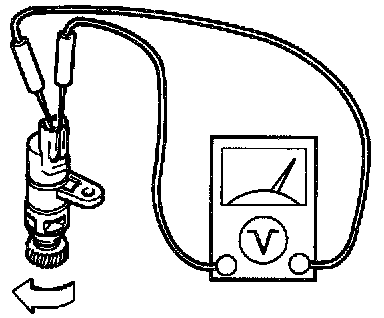

Measure the voltage between terminals of the vehicle speedometer sensor while rotating the driven gear.
3.
Install the vehicle speedometer sensor.
