Manual Transaxle
VEHICLE SPEEDOMETER SENSOR INSPECTION 1.
Remove the vehicle speedometer sensor.
1 of 2 2 of 2 2.

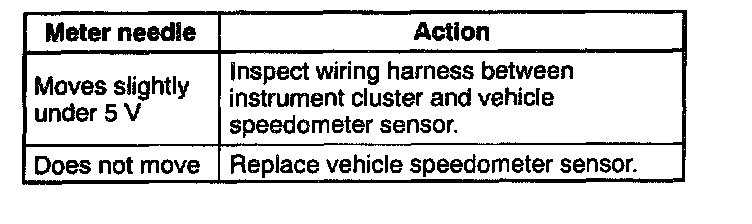

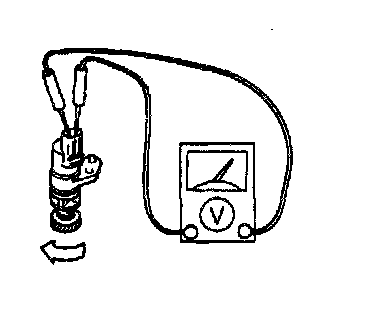

Measure voltage between terminals of the vehicle speedometer sensor while the gear is turning.
3.
Install the vehicle speedometer sensor.
