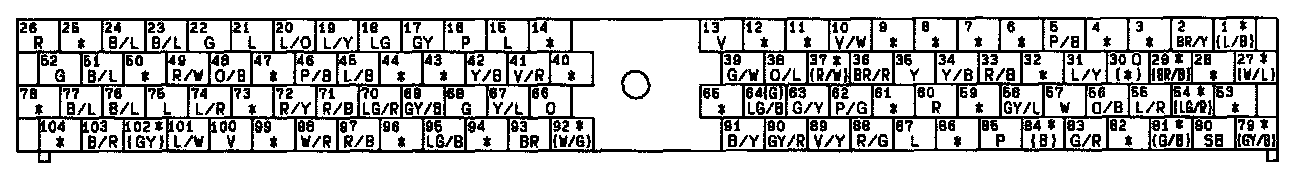

Engine Control Module

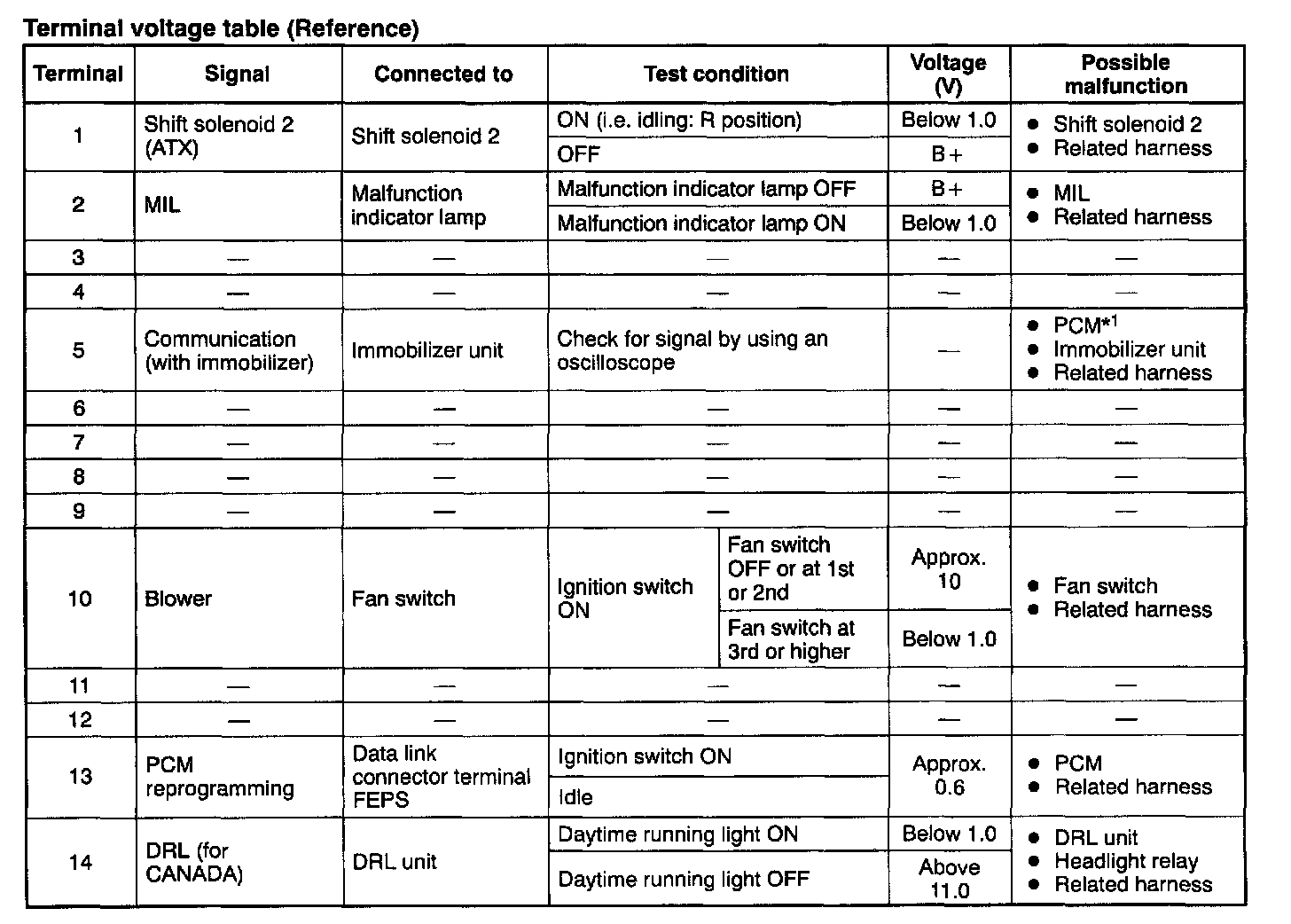

Terminal 1 - 14:

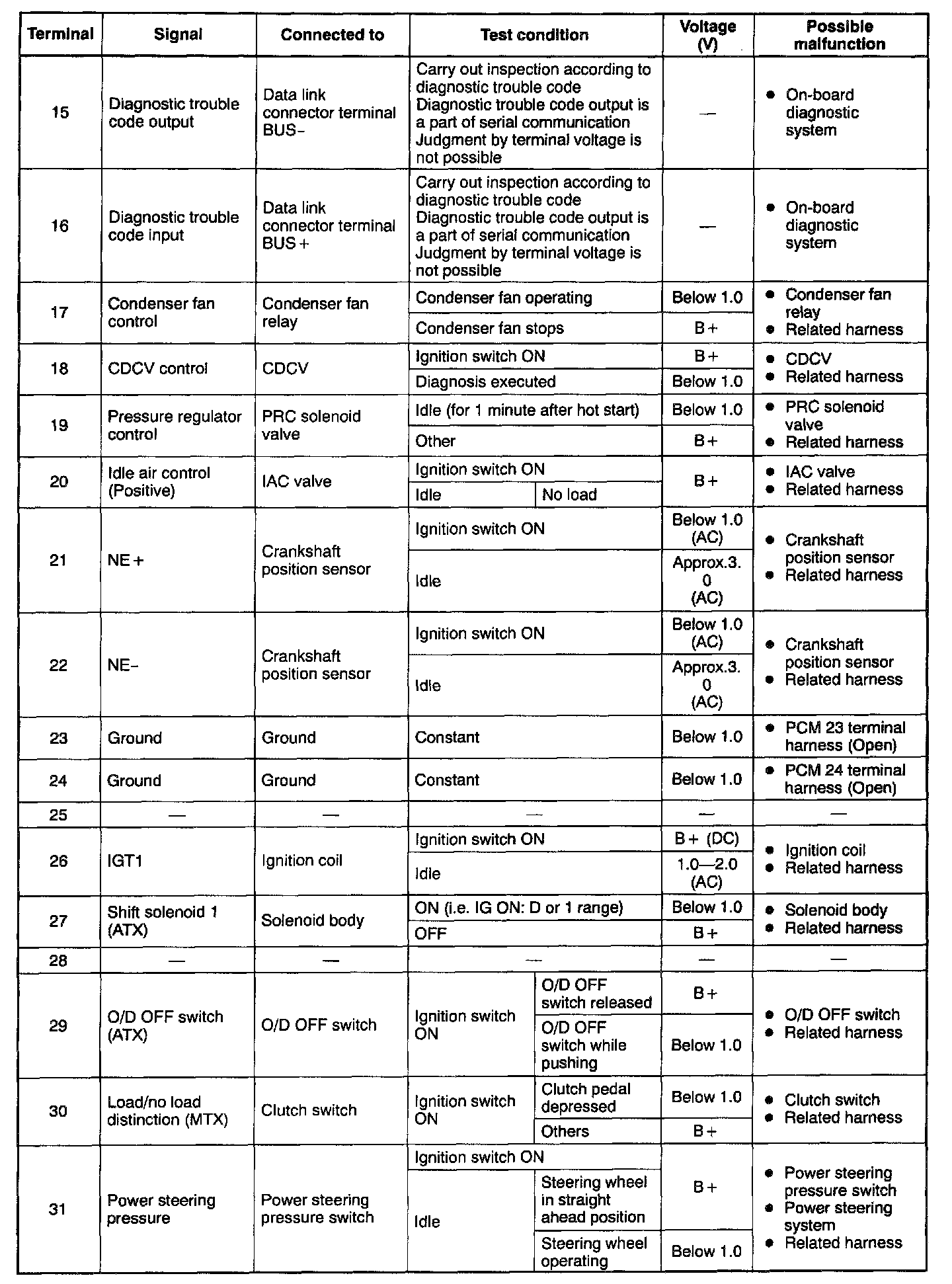

Terminal 15 - 31:

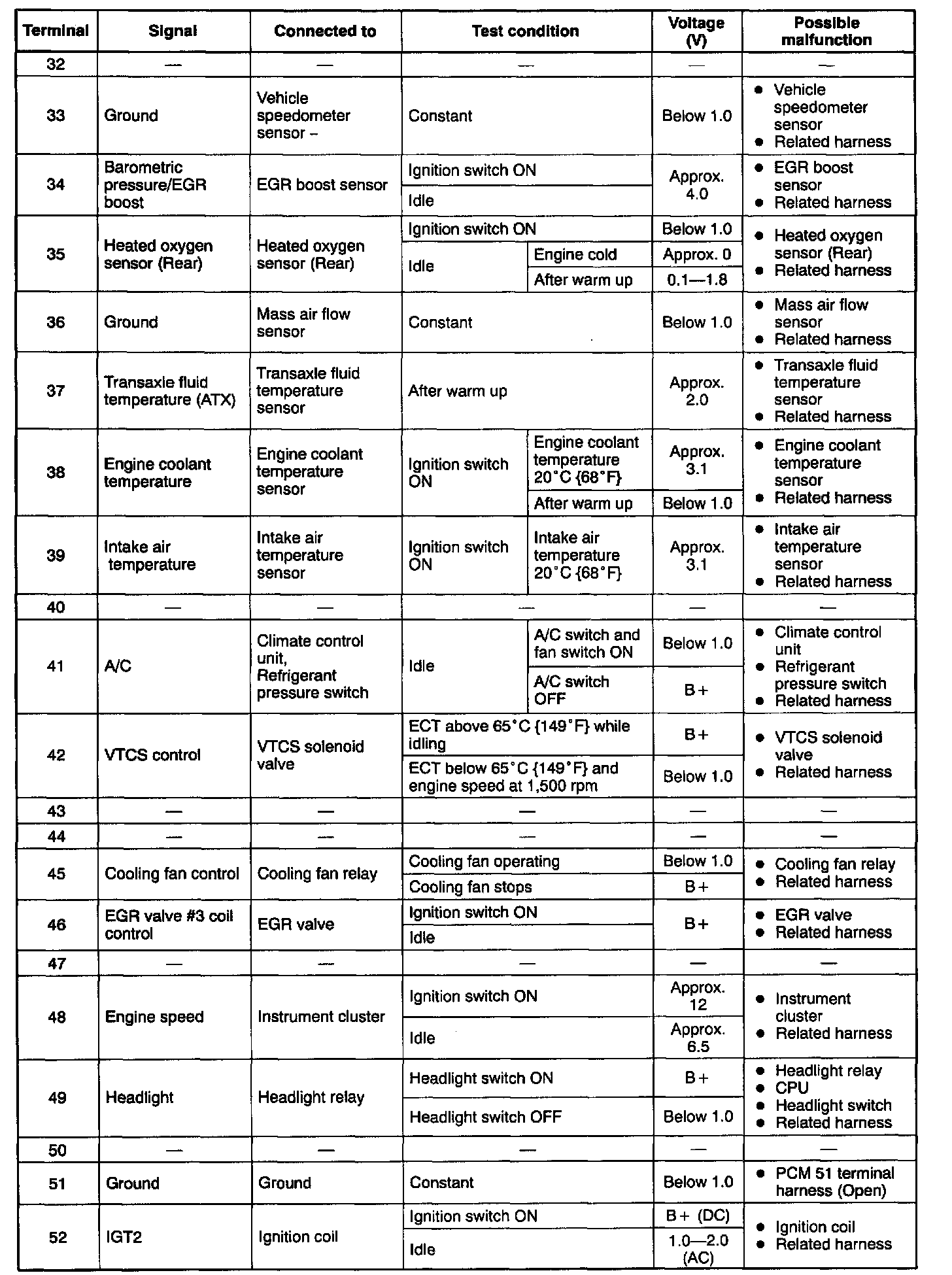

Terminal 32 - 52:

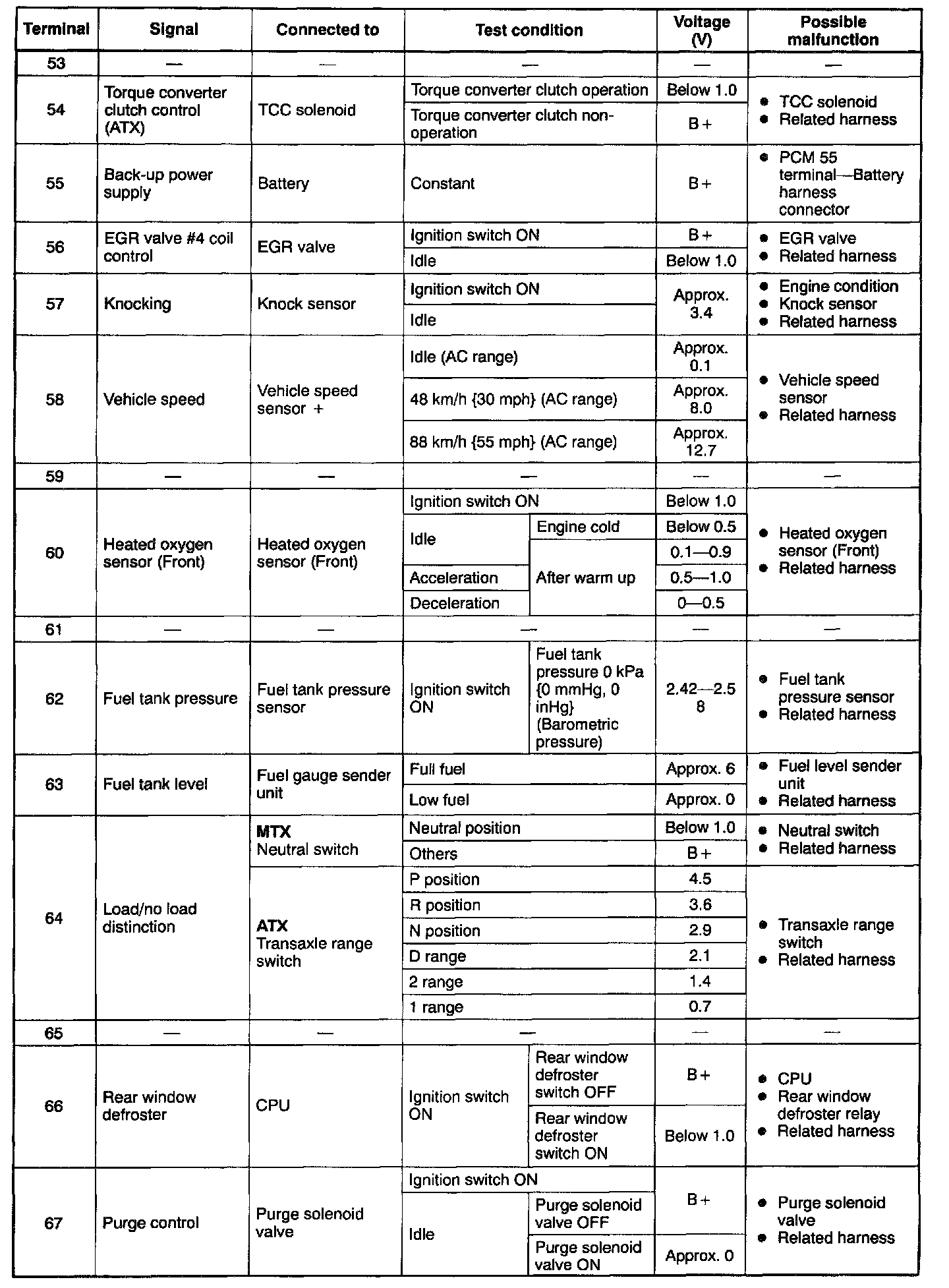

Terminal 53 - 67:

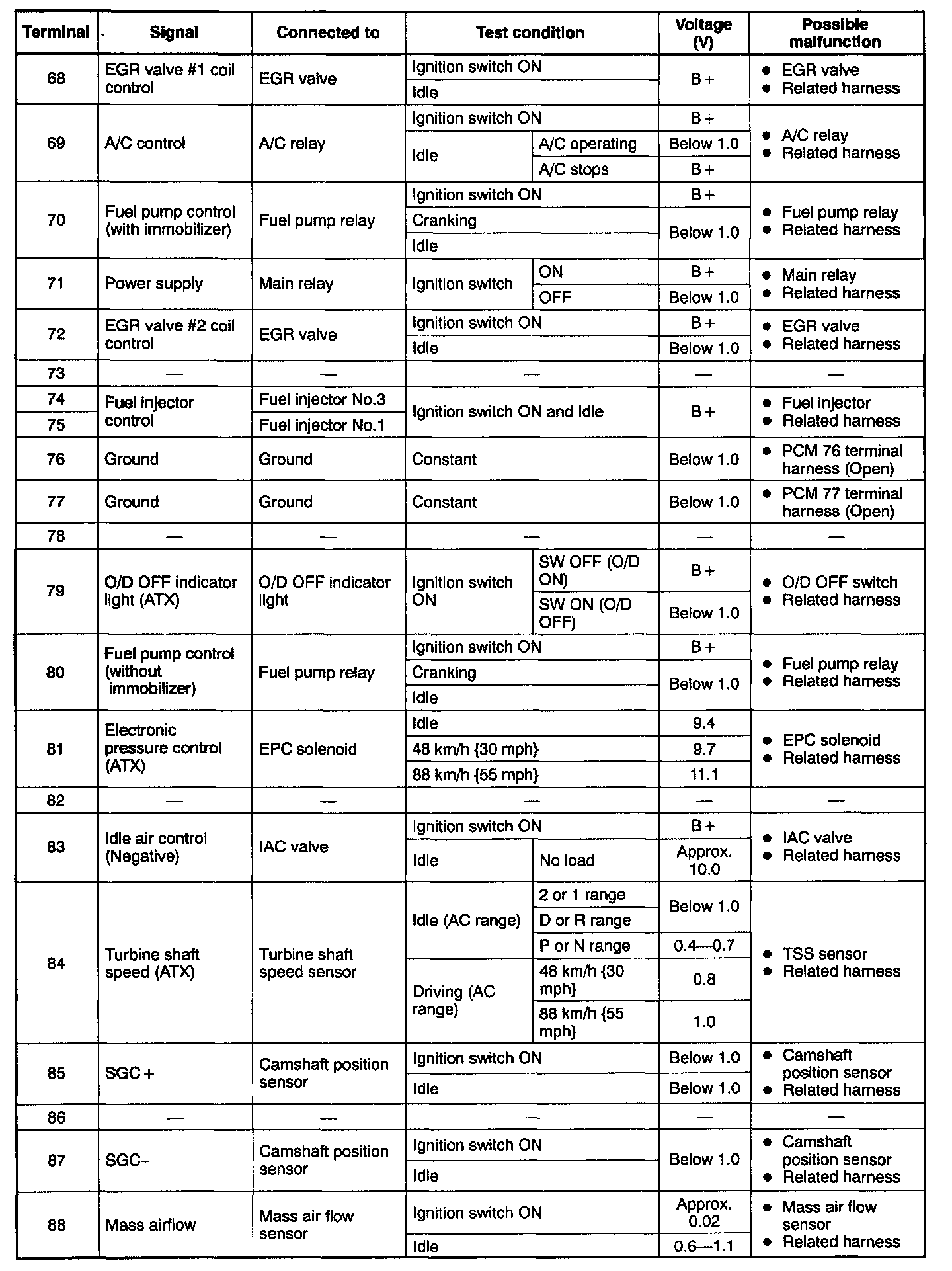

Terminal 68 - 88:

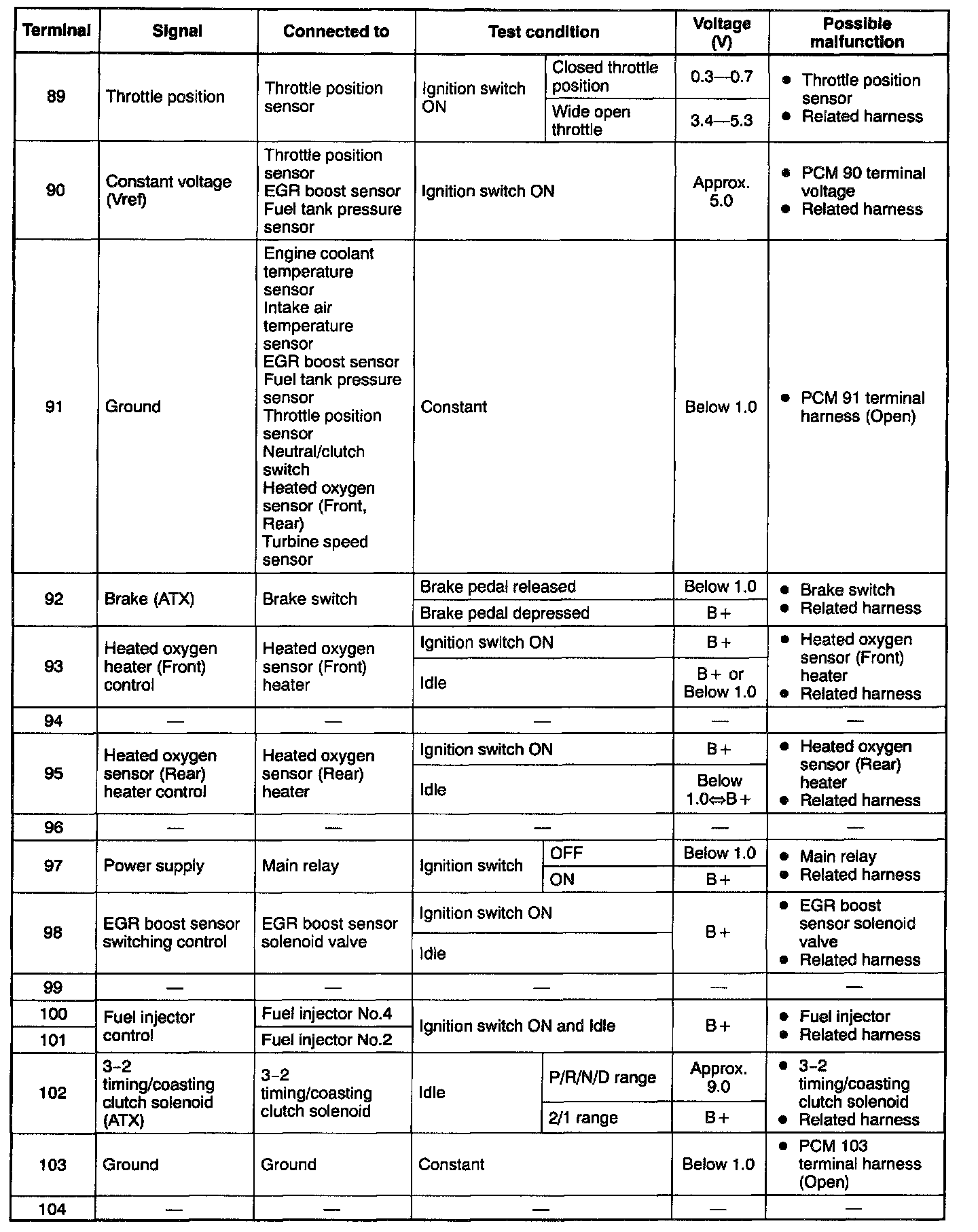

Terminal 89 - 104:







*1 the immobilizer unit functions normally, replace the PCM.
