Home
>>
Mazda
>>
2001
>>
626 LX V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

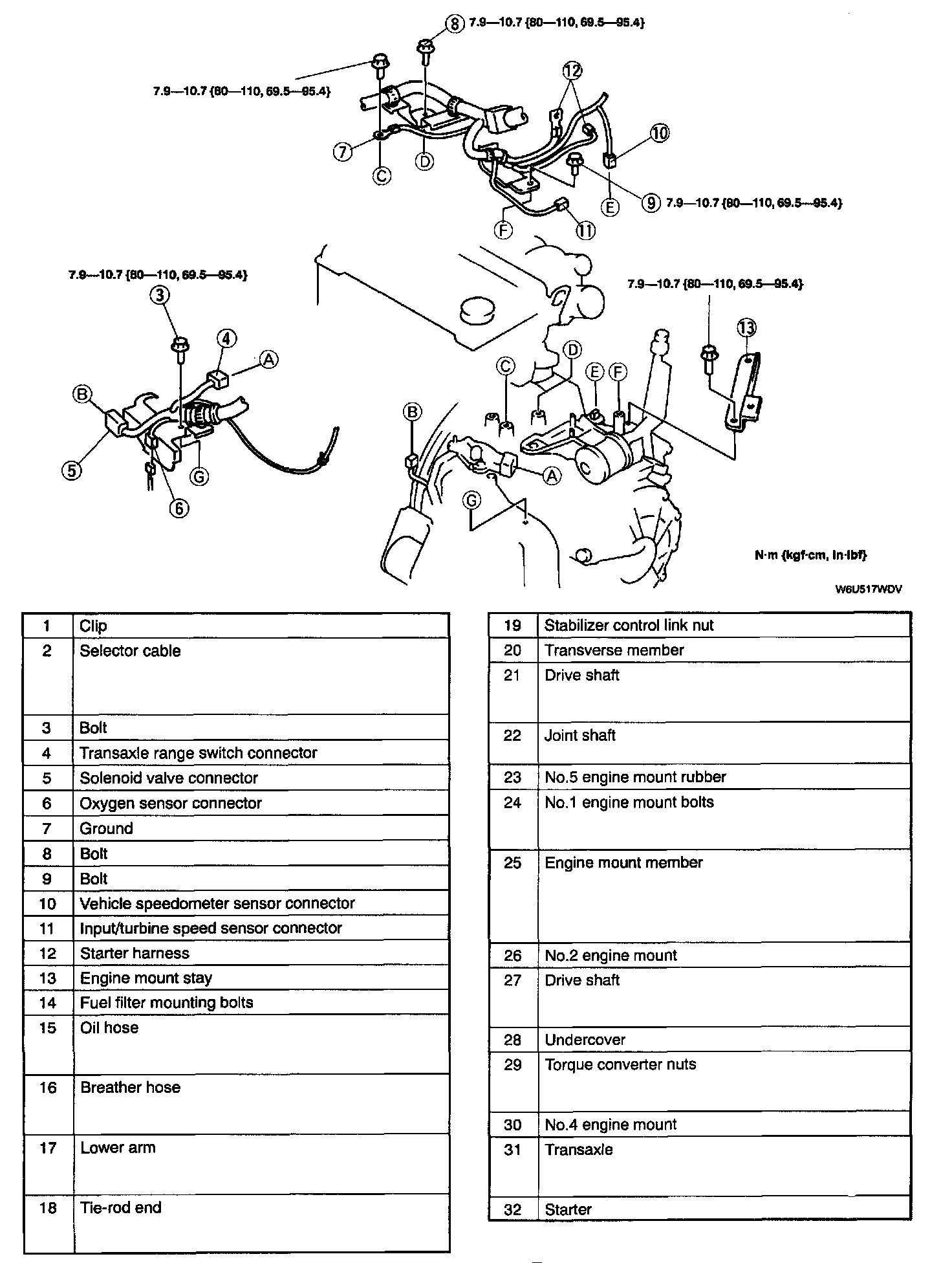

Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
1 of 2
2 of 2
