Using SST (NGS Tester)

PCM Inspection Using the SST (NGS Tester)

NOTE:
- PIDs for the following pats are not available on this model. Go to the appropriate part inspection.
- CMP sensor
- Main relay

1. Connect the NGS tester to the DLC-2.
2. Turn the ignition switch to ON.
3. Select the "PID/DATA MONITOR AND RECORD" function on the NGS display and press TRIGGER.
4. Select the appropriate PID on the NGS display and press START.
5. Measure the PID value.
- If PID value is not within the specification, follow the instructions in Action column.

Part 1:

Part 2:

Part 3:

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

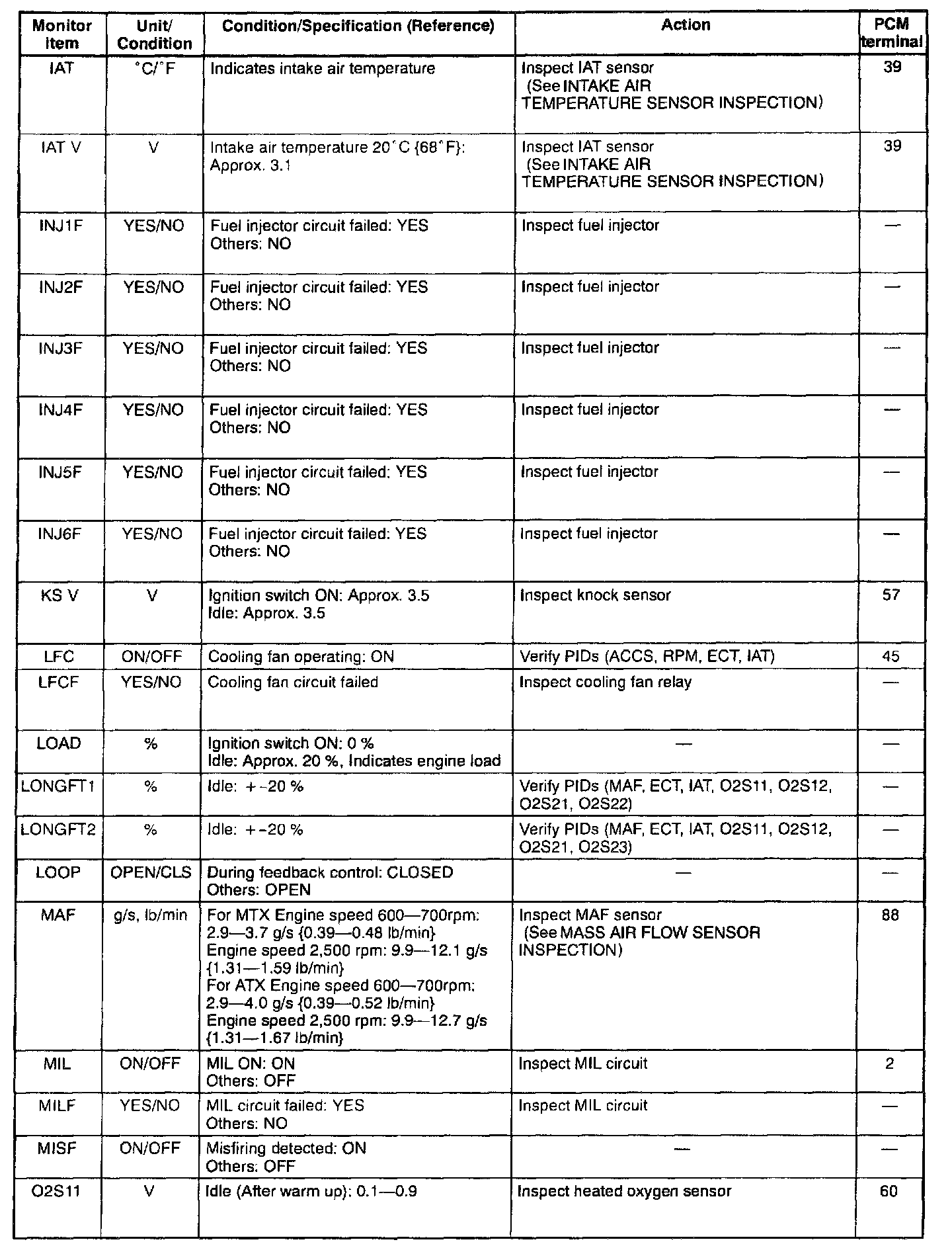

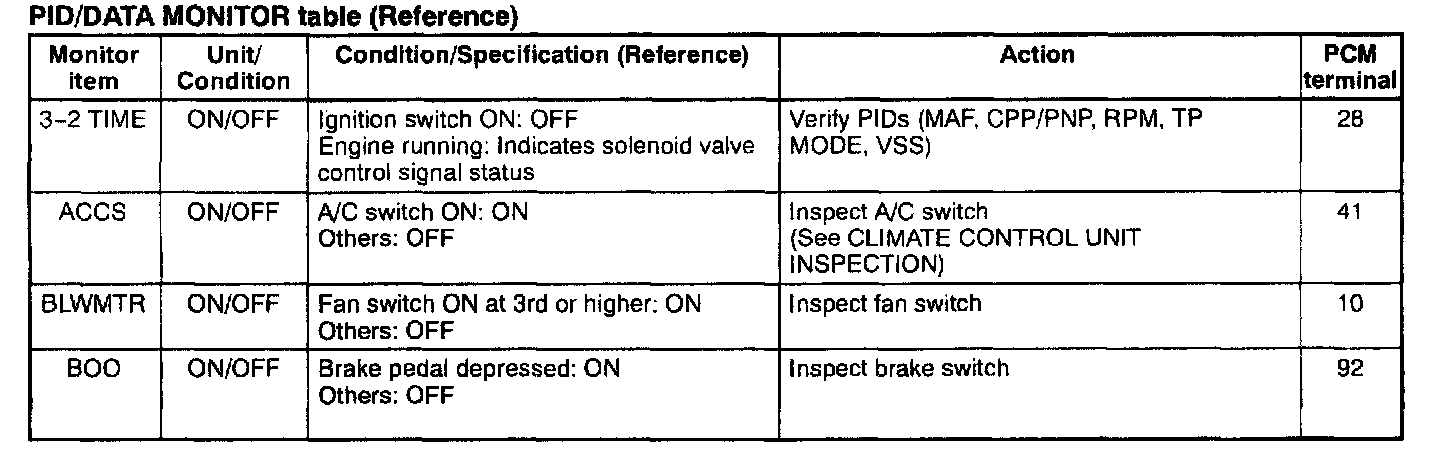

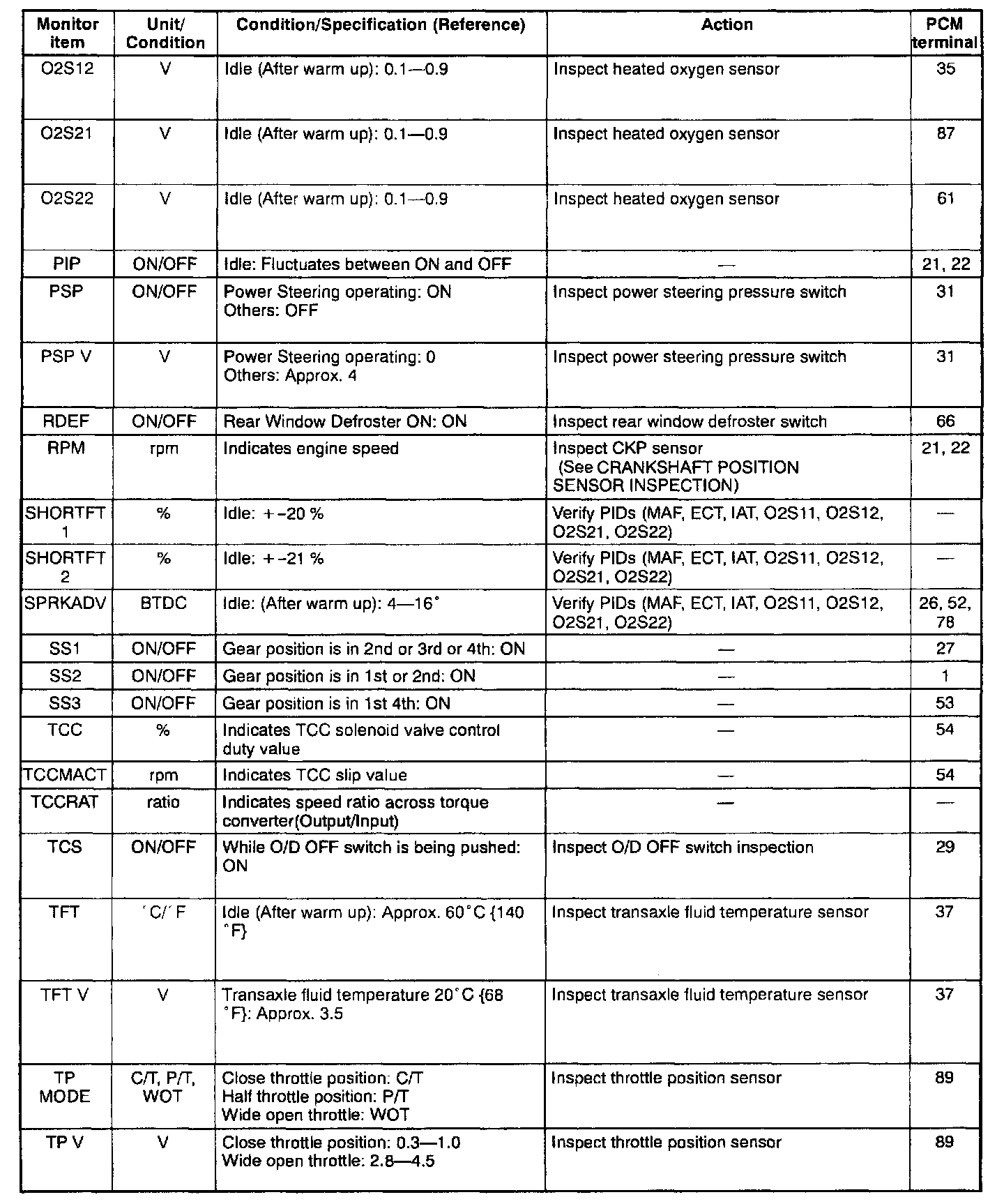

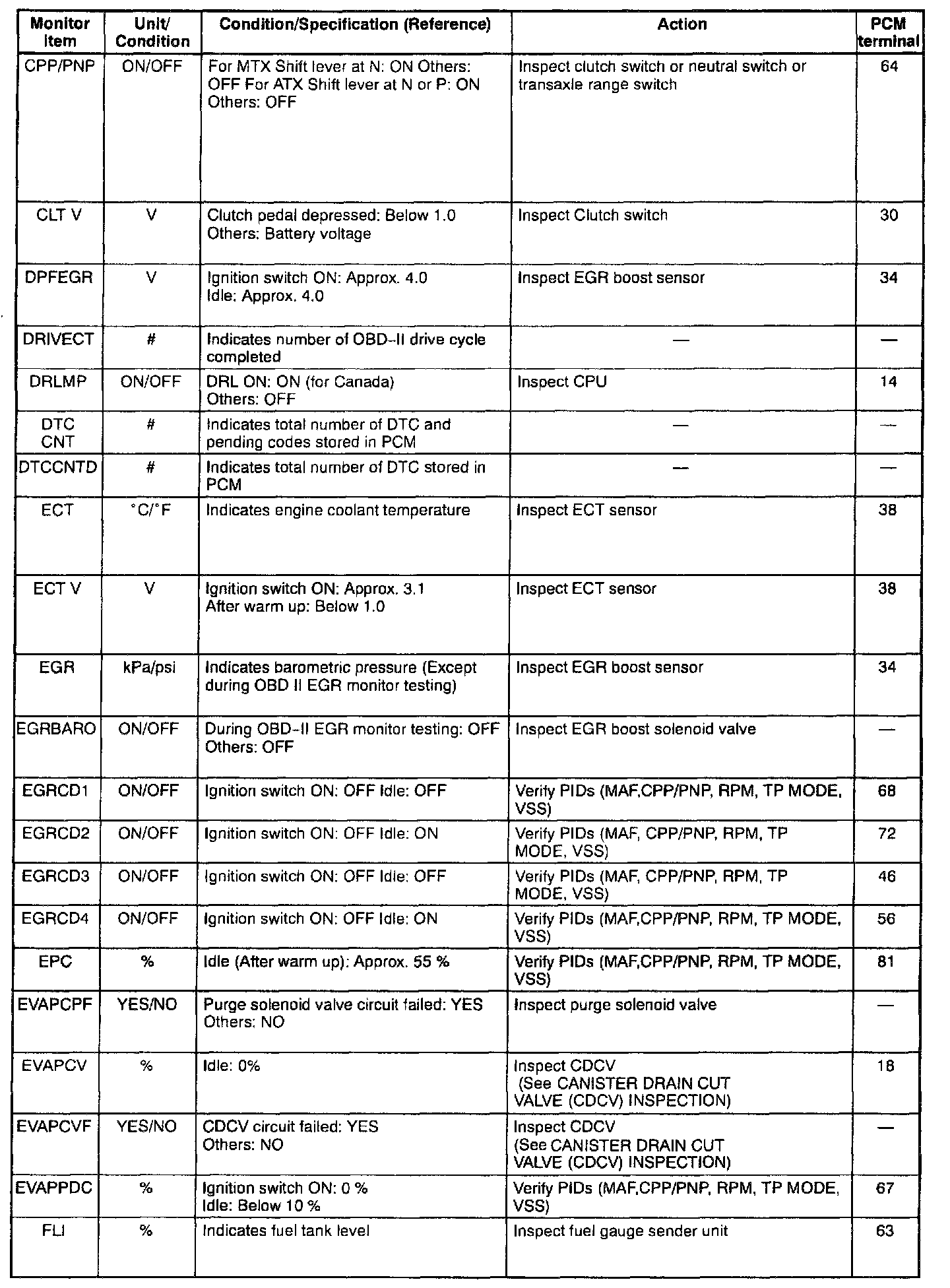

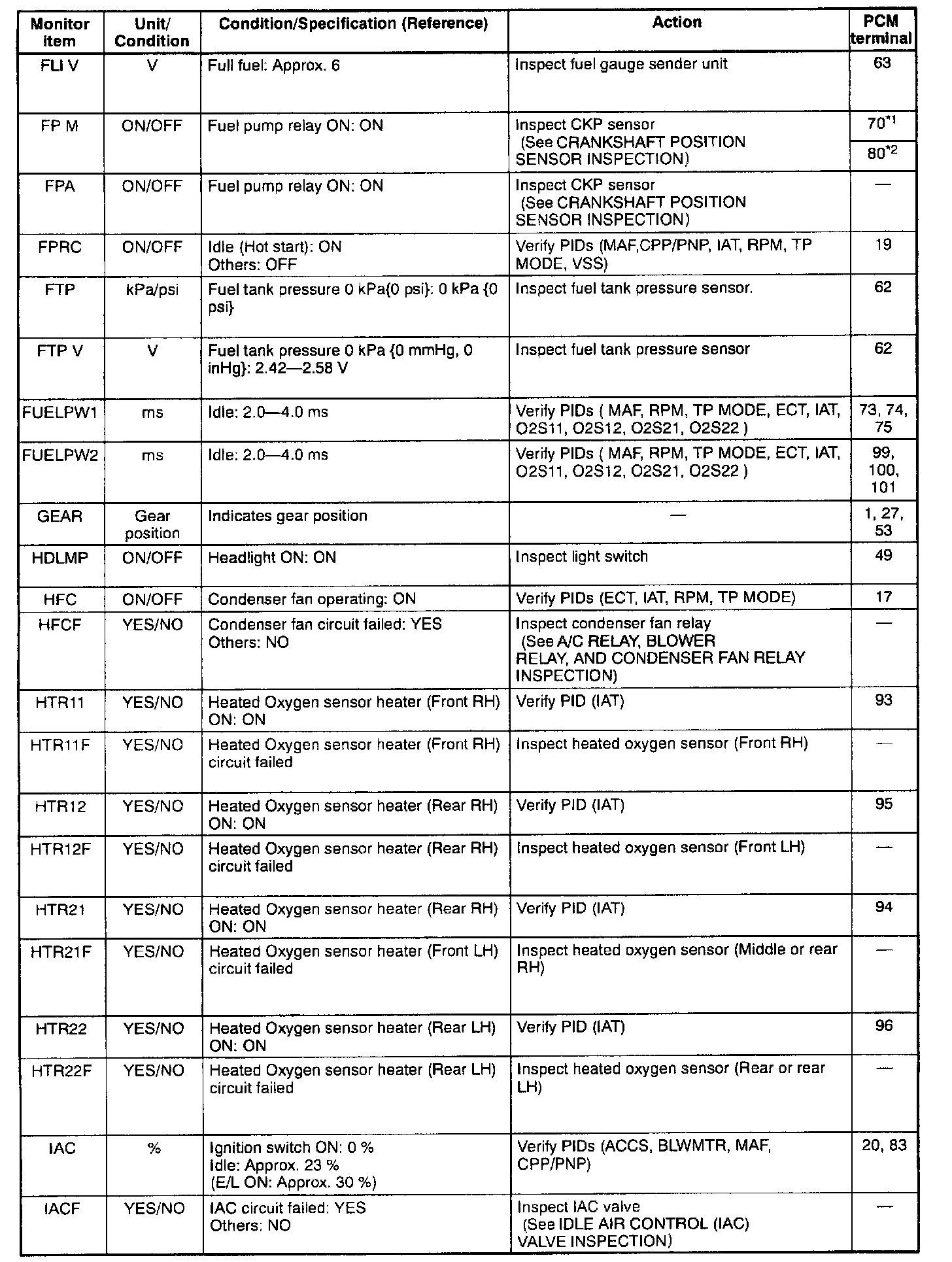

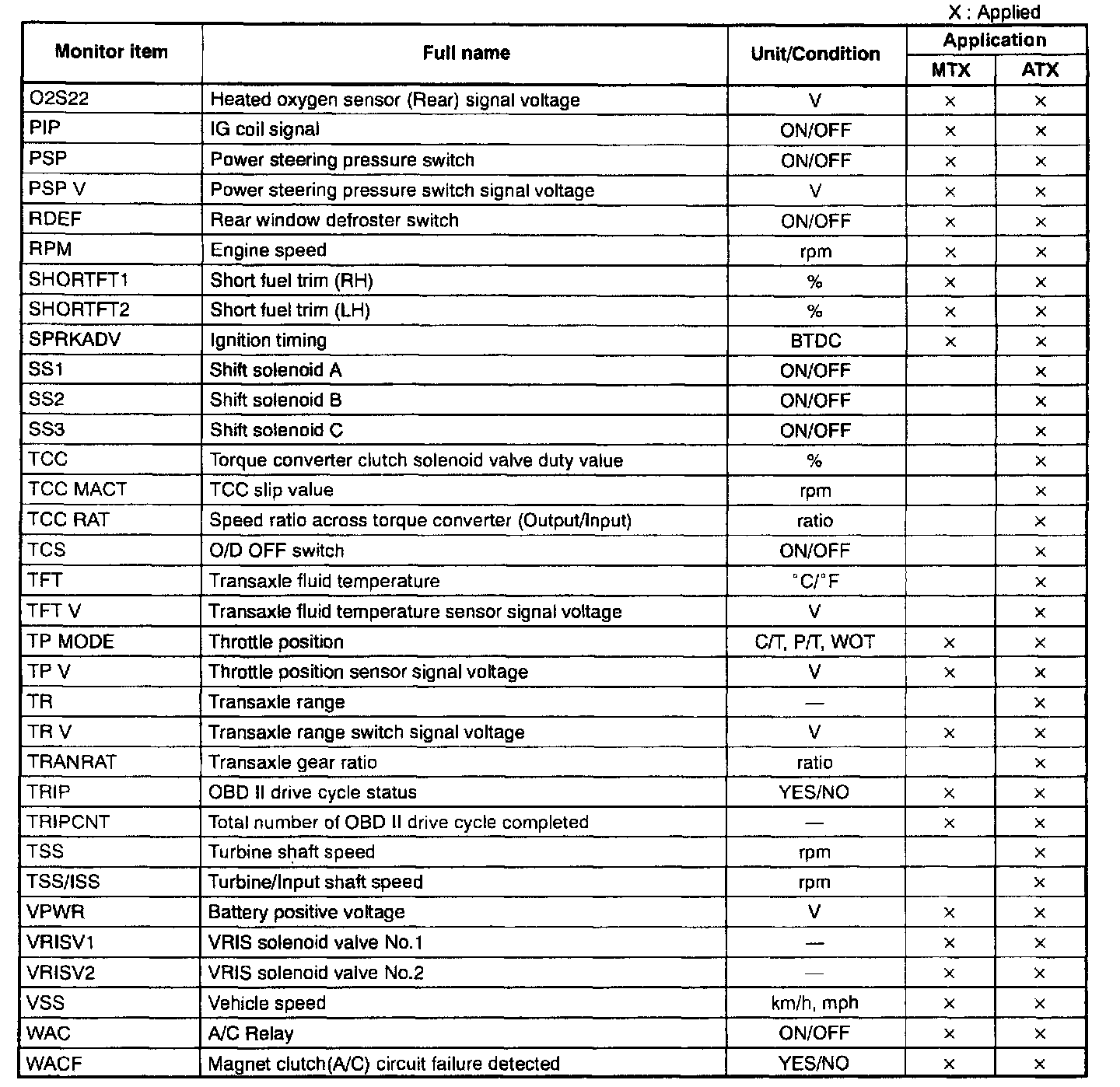

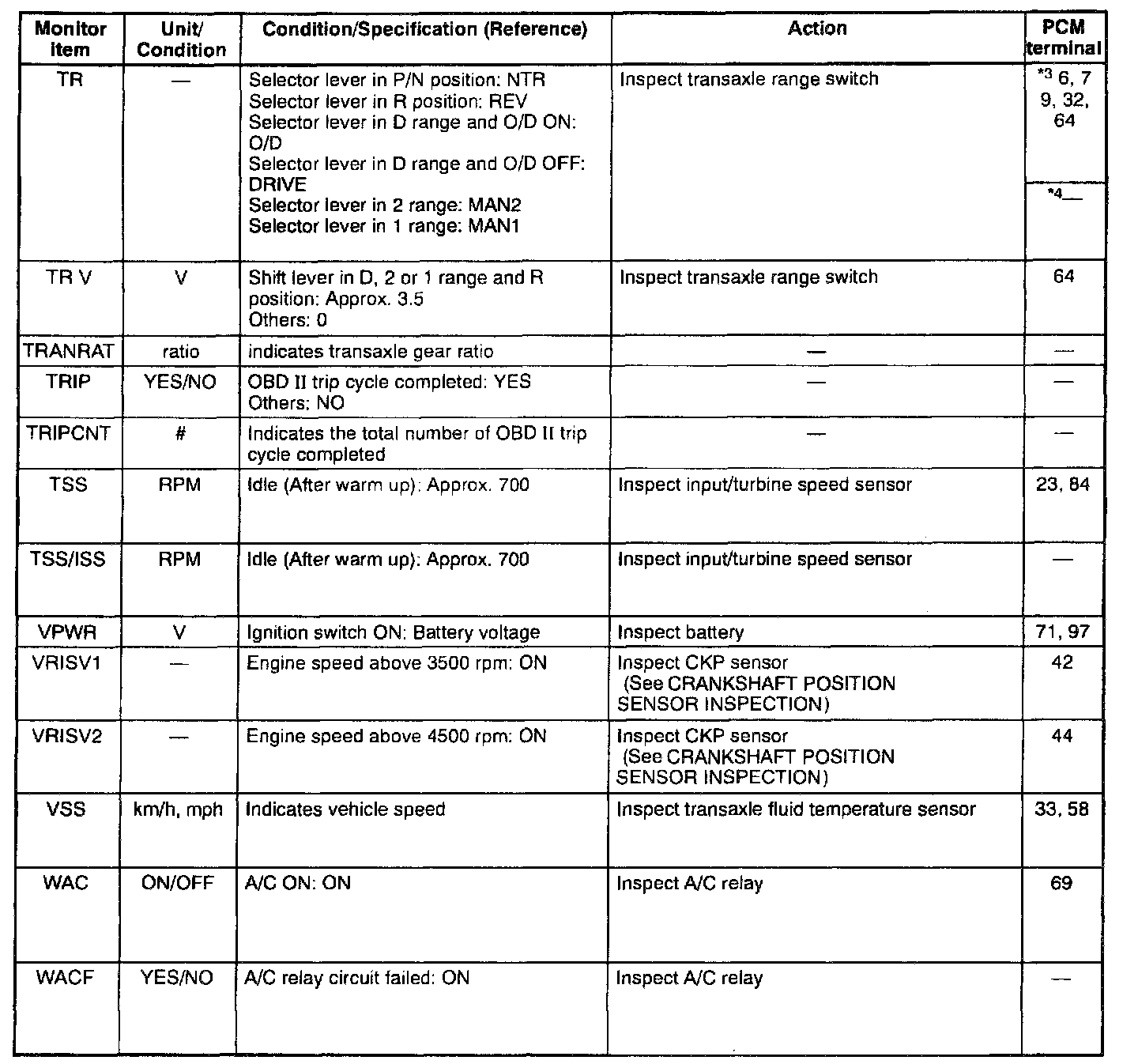

PID/DATA MONITOR item table

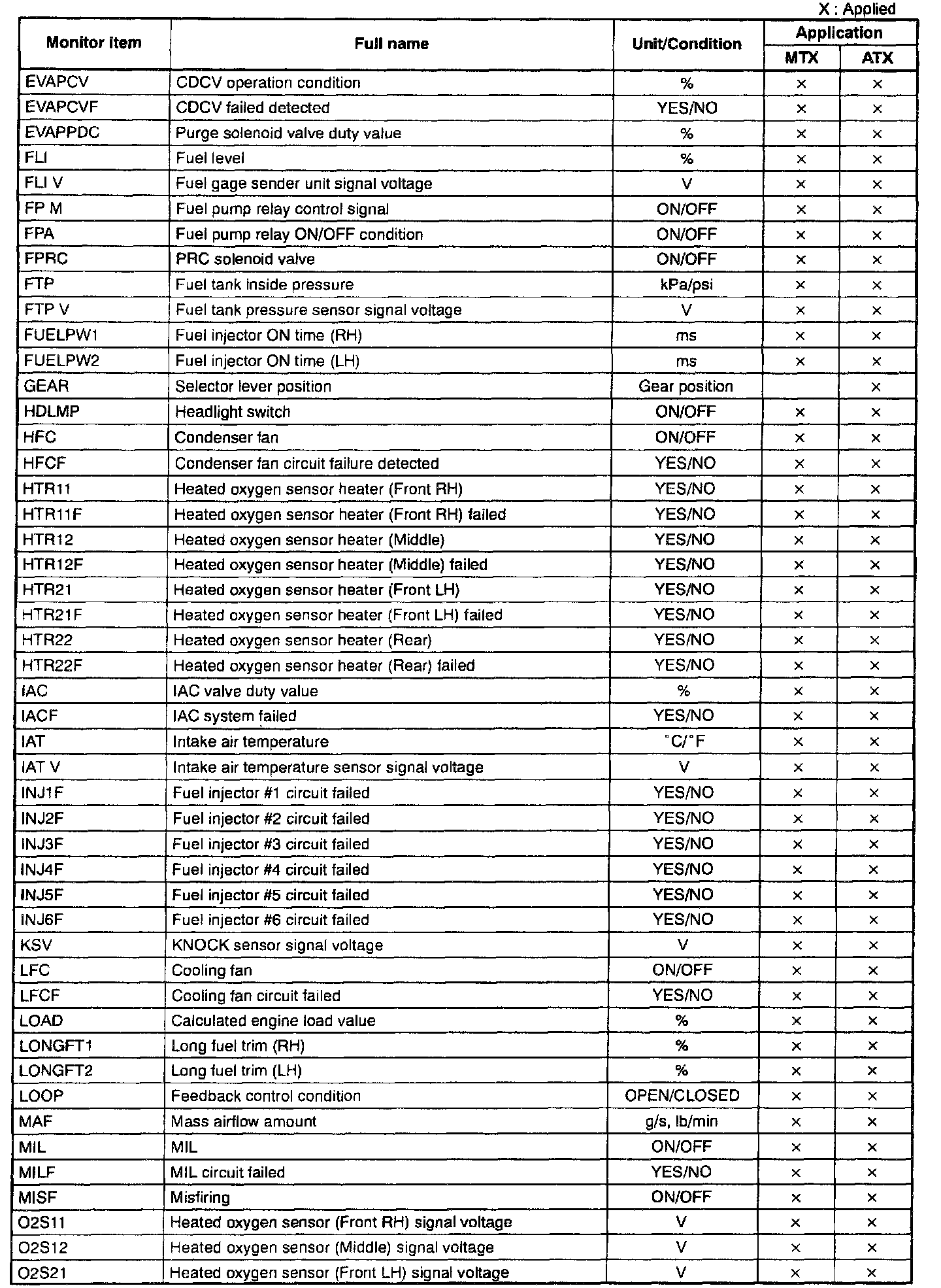

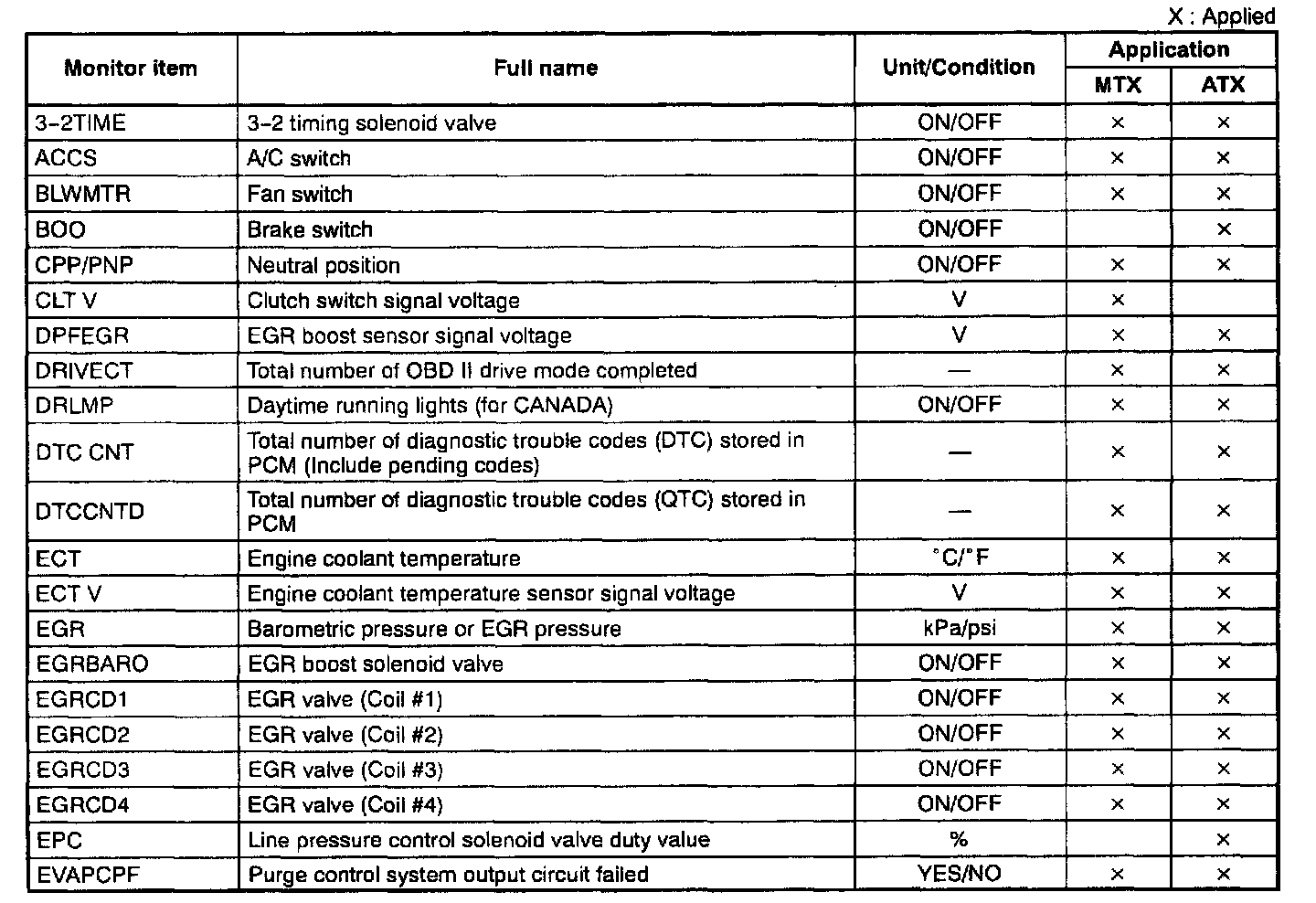

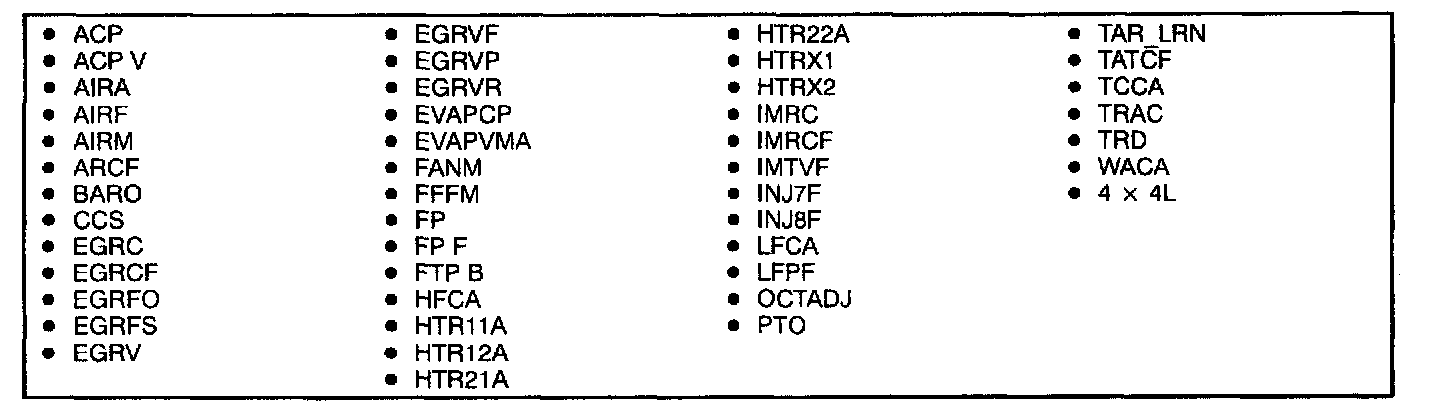

NOTE: The following PIDs may be displayed on the NGS tester, but they are not used for inspection, because these device are not applied to this model.

*1 : With immobilizer system
*2 : Without immobilizer system
*3 : ATX
*4 : MTX
