Axle Nut

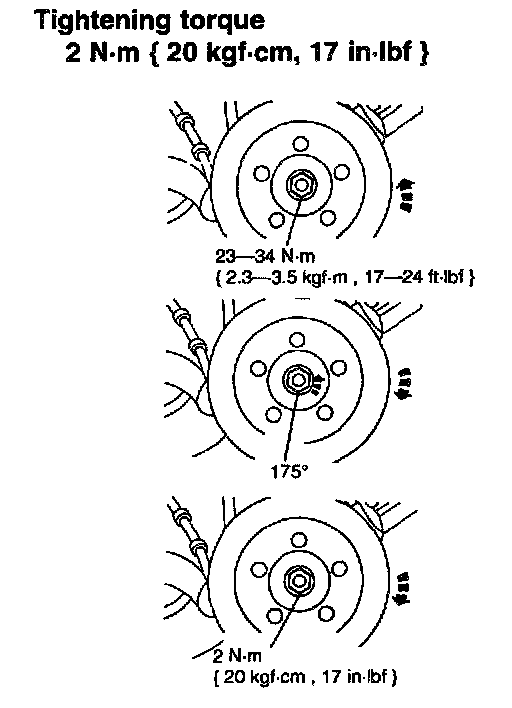

Hub and Rotor Installation Note

Note: The front disc brake hub and rotor should be rotated while adjusting front wheel bearing end play.





1. Tighten spindle nut.
2. Loosen the spindle nut 175°.
3. Tighten the spindle nut.
Tightening torque 2 Nm (20 kgf-cm, 17 inch lbs.)
