Tightening Specifications

Cylinder Head

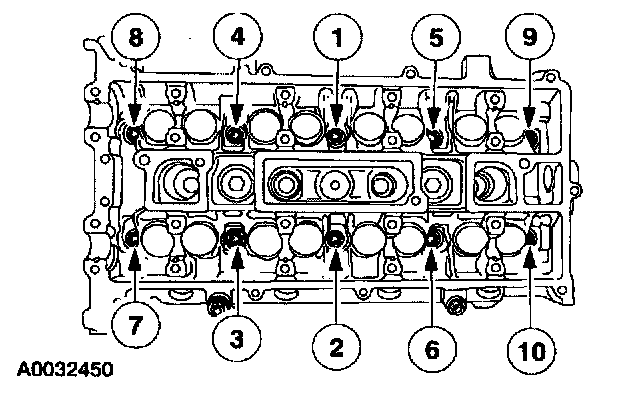

Install the cylinder head and lubricate the cylinder head bolts with clean engine oil. Install the cylinder head bolts and tighten the bolts in the sequence shown in five stages.
^ Stage 1: Tighten the bolts to 5 Nm (44 inch lbs.).
^ Stage 2: Tighten the bolts to 15 Nm (11 ft. lbs.).
^ Stage 3: Tighten the bolts to 45 Nm (33 ft. lbs.).
^ Stage 4: Turn the bolts 90 degrees.
^ Stage 5: Turn the bolts an additional 90 degrees.

Related Torque Specifications





Part 1 of 3





Part 2 of 3





Part 3 of 3
