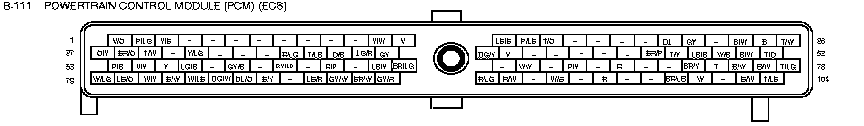

Engine Control Module

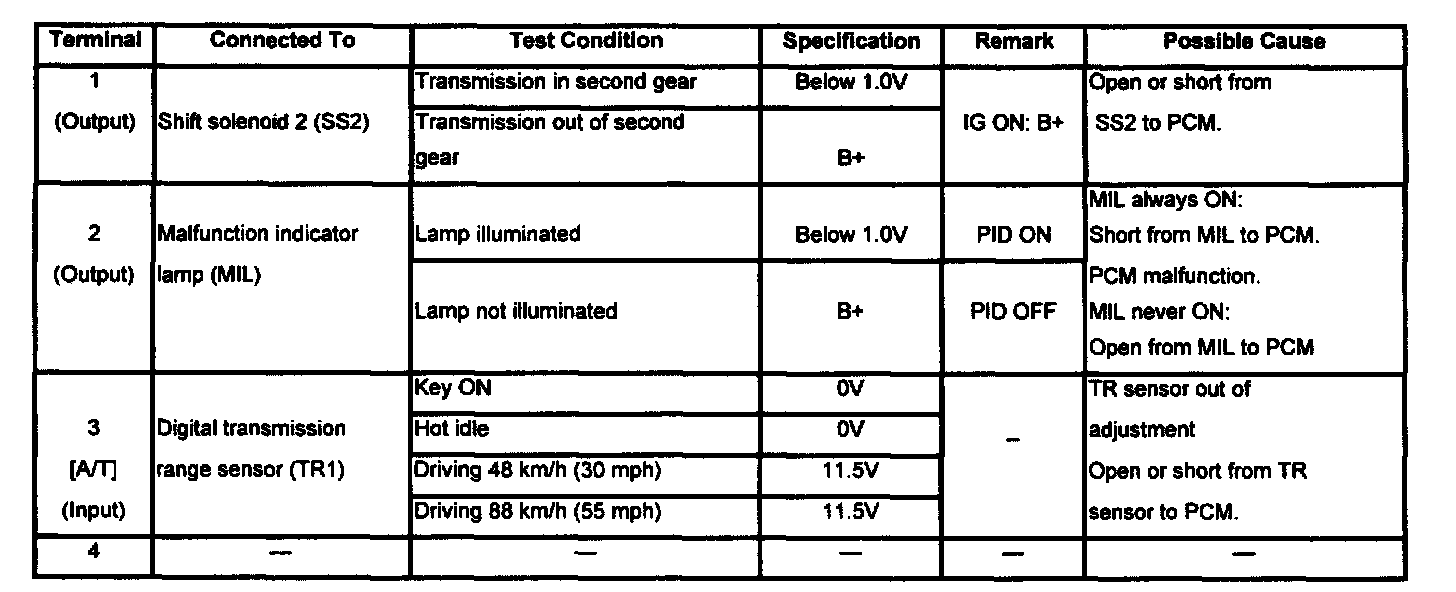

Terminals 1 - 4:

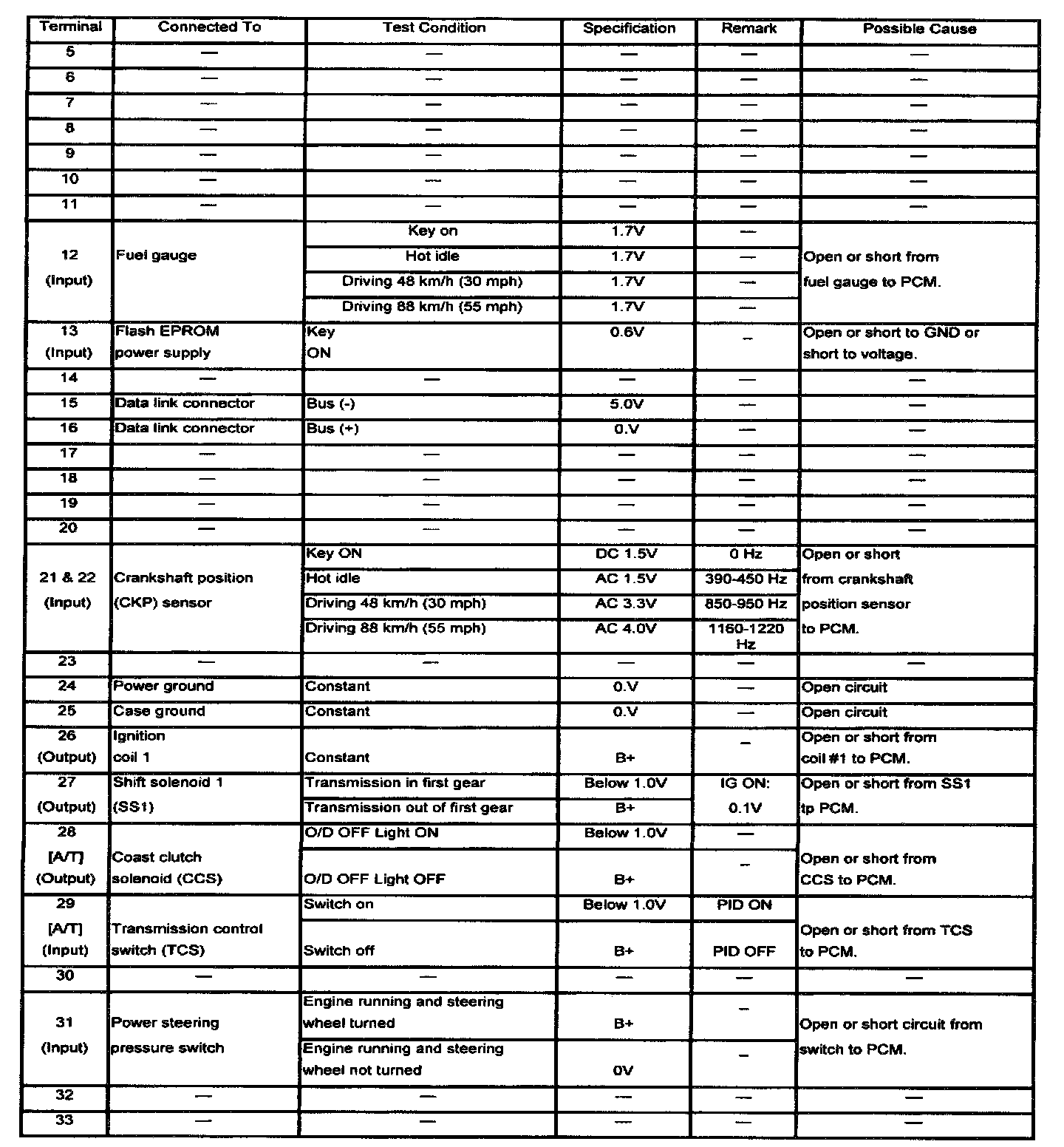

Terminals 5 - 33:

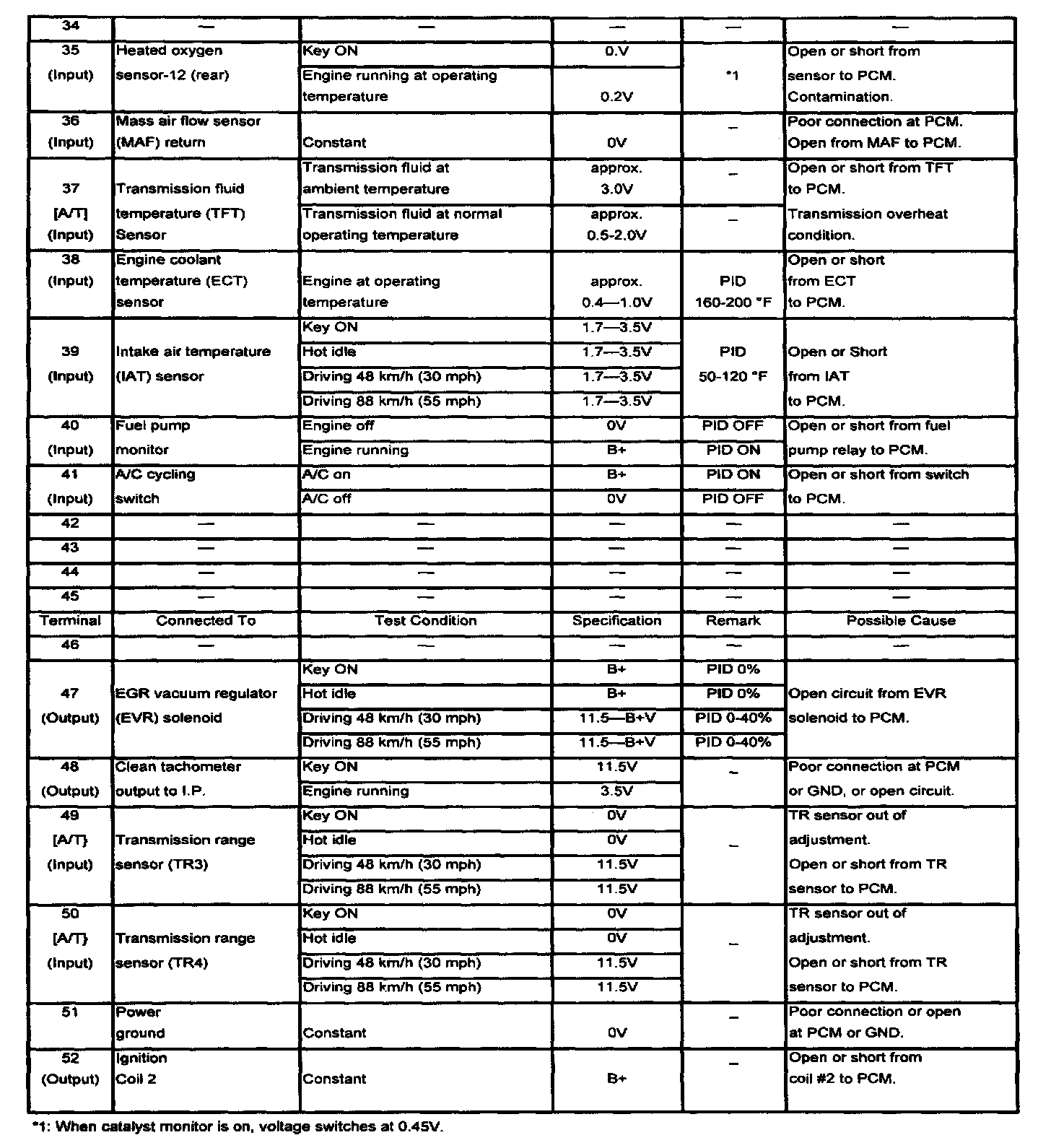

Terminals 34 - 52:

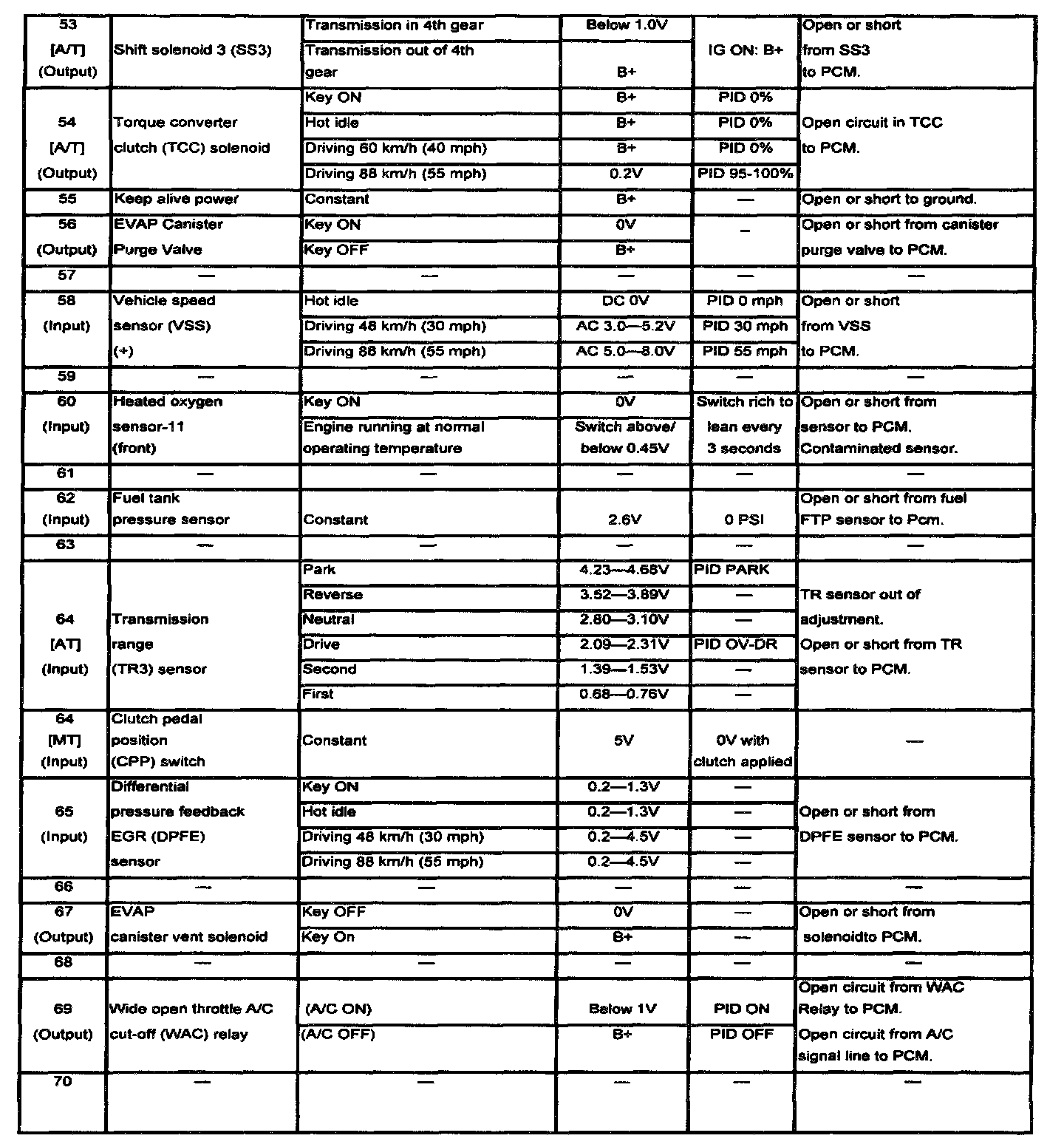

Terminals 53 - 70:

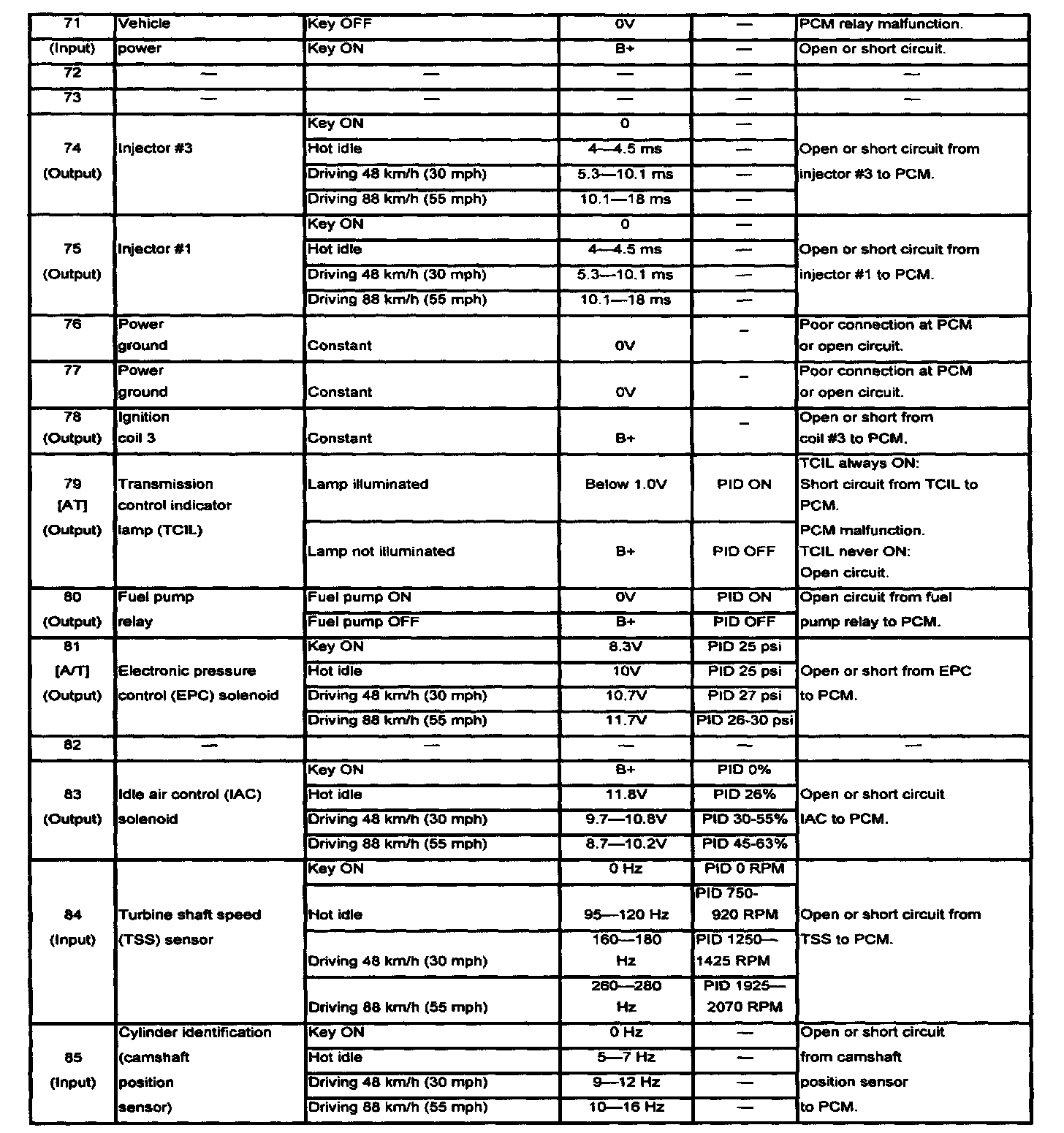

Terminals 71 - 85:

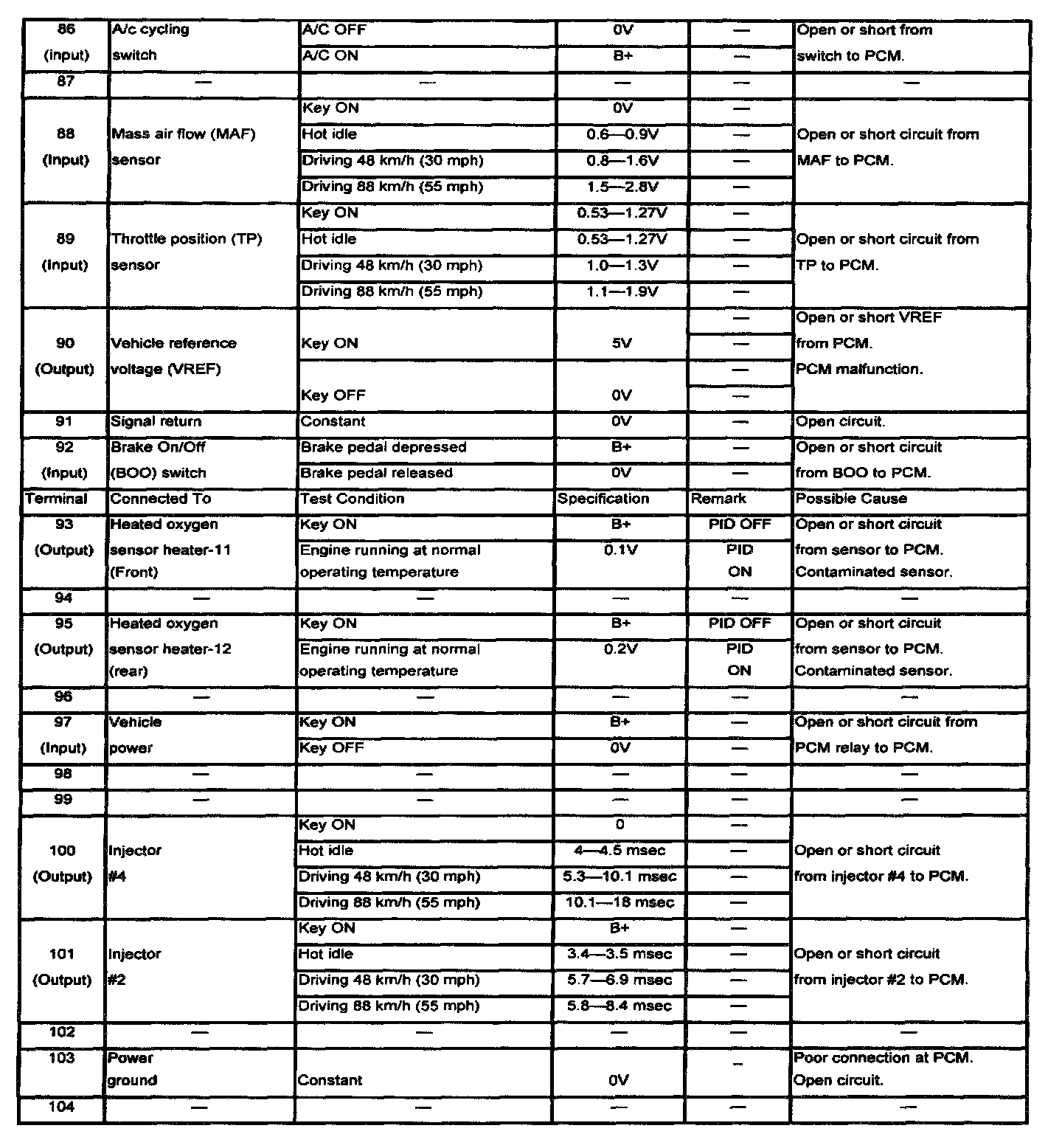

Terminals 86 - 104:
