Locations
>>
Connector Locations
>>

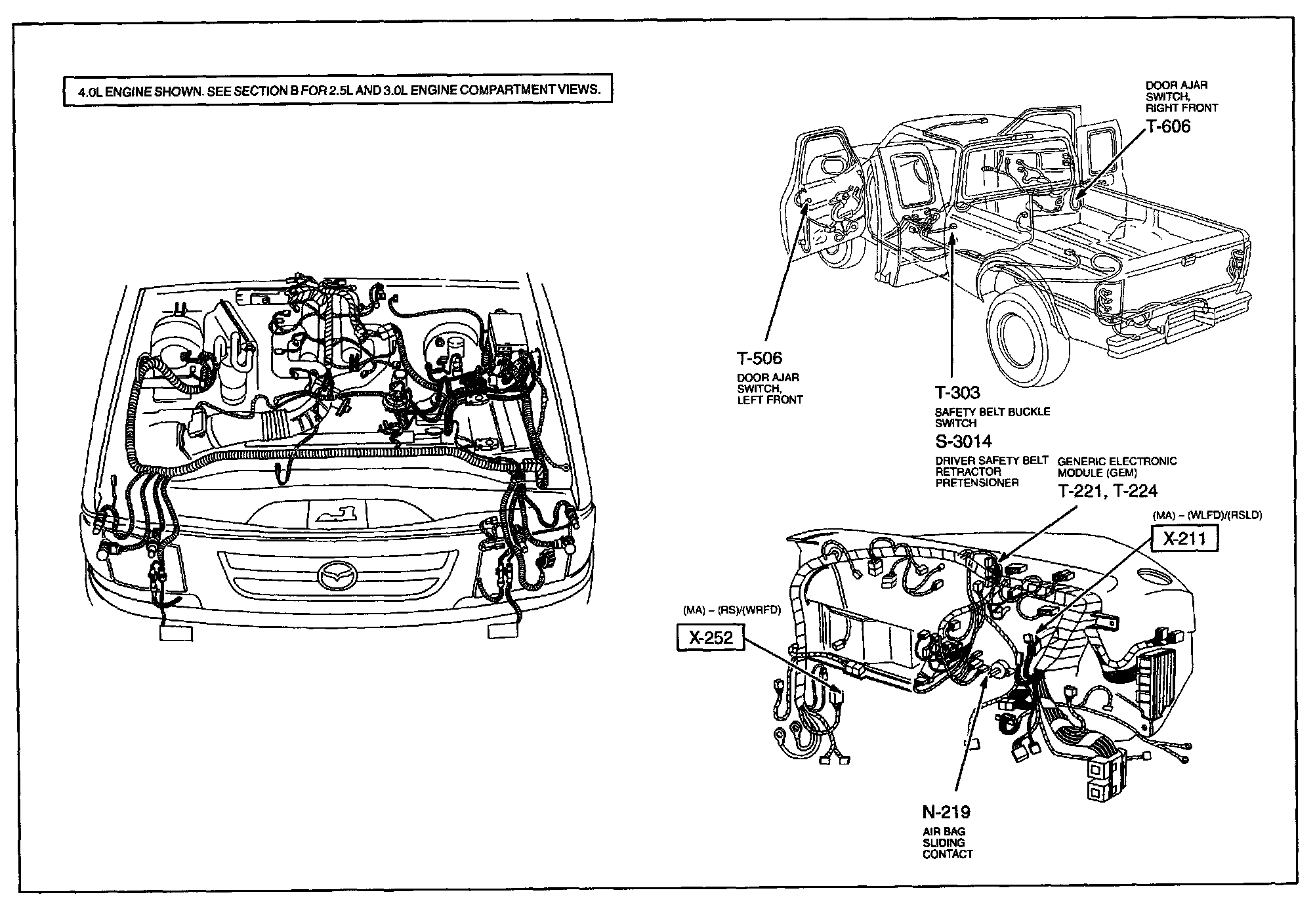

T-1 - Generic Electronic Module (GEM) System

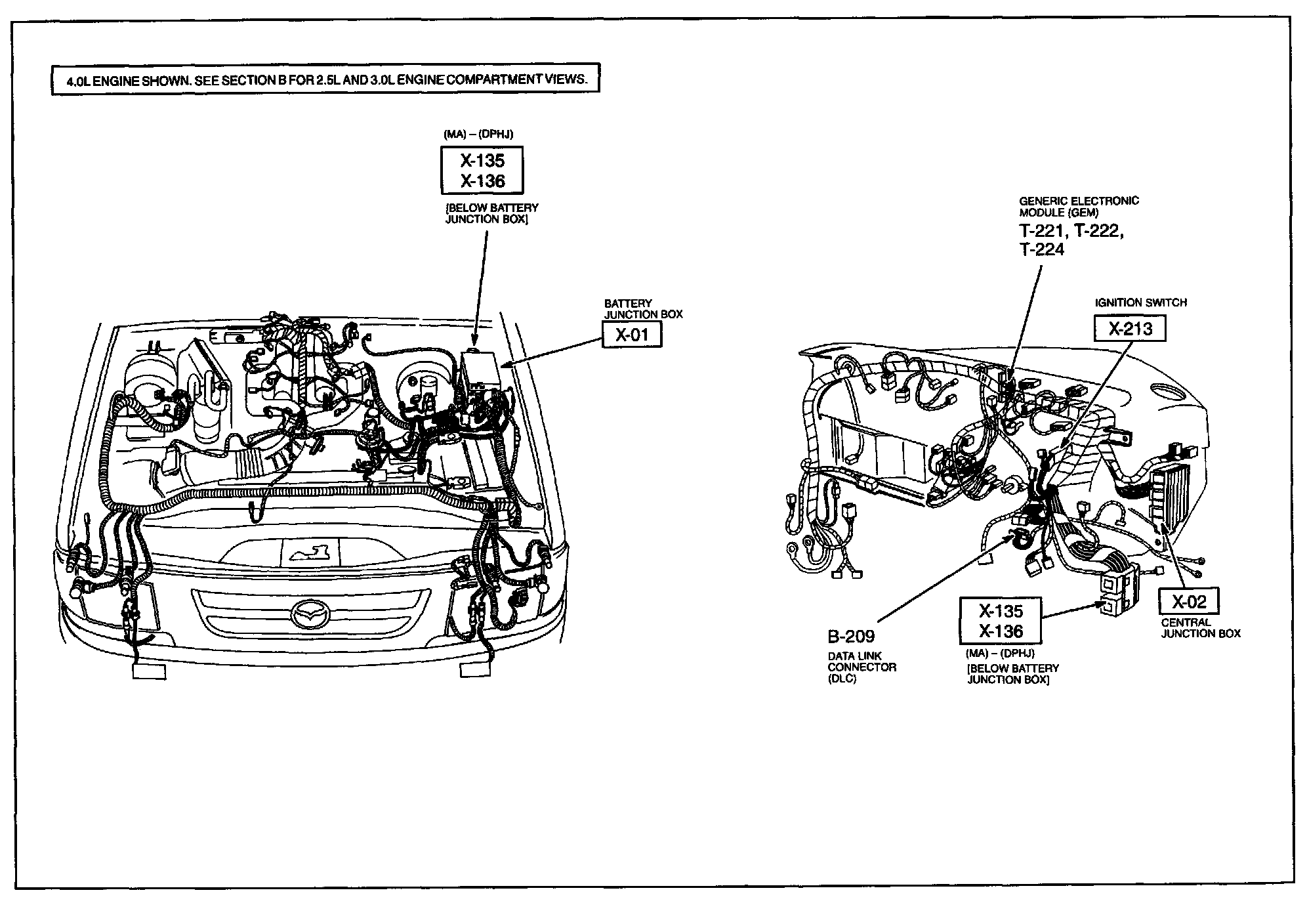

T-1 - Generic Electronic Module (GEM) System
T-1a - Generic Electronic Module (GEM) System Harness/Connector Symbols:
T-1b - Generic Electronic Module (GEM) System Harness/Connector Symbols:
