Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR REMOVAL / INSTALLATION

Removal and Installation




1. Remove the water pump inlet tube.

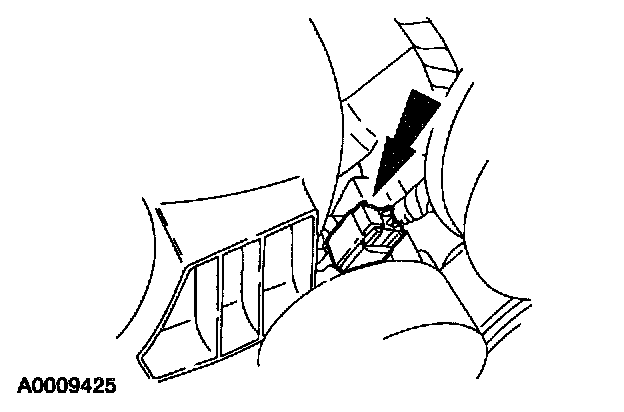

2. Disconnect the crankshaft position (CKP) sensor electrical connector.

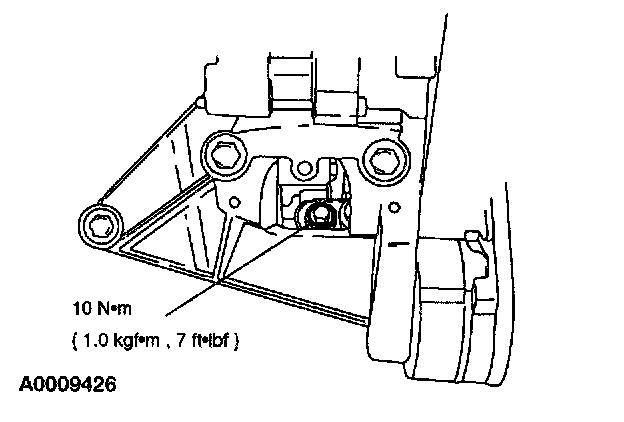

3. Remove the bolt and the CKP sensor.
4. To install, reverse the removal procedure.
