Service Specifications

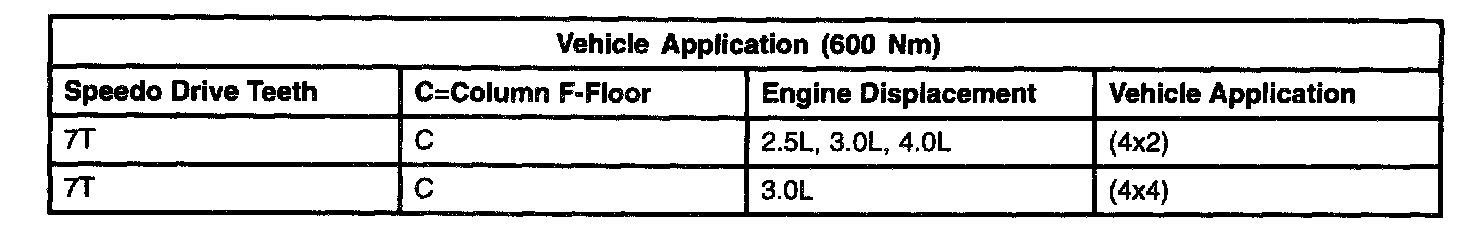

GENERAL SPECIFICATIONS
END PLAY SPECIFICATIONS (4R44E ONLY)

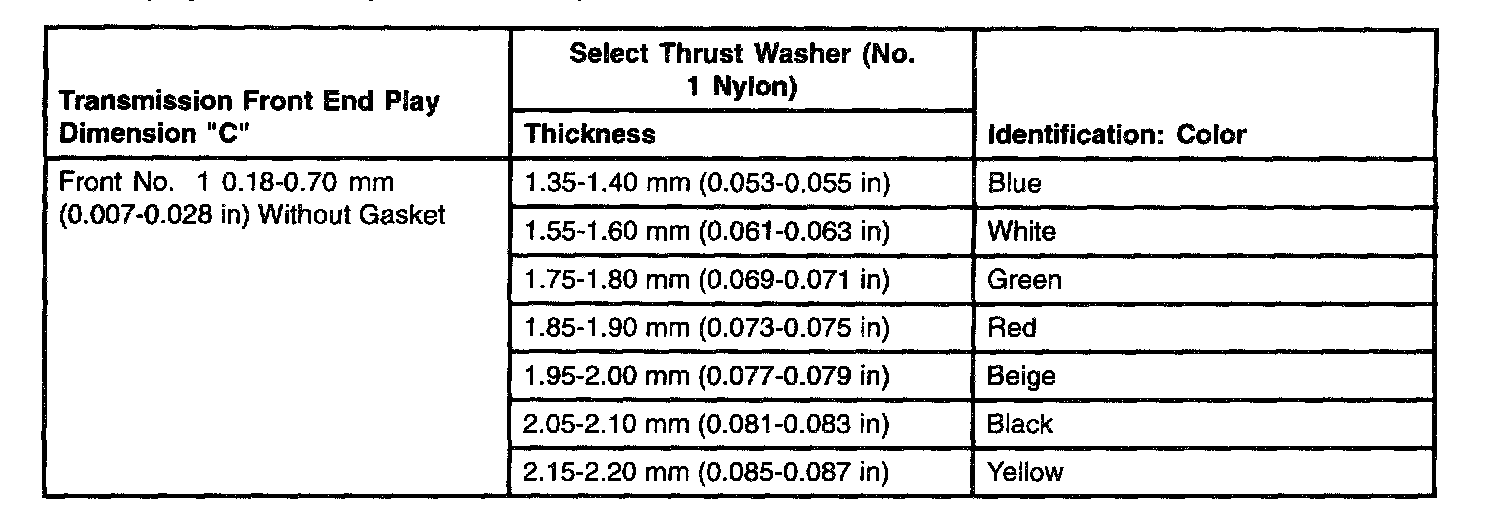

Front

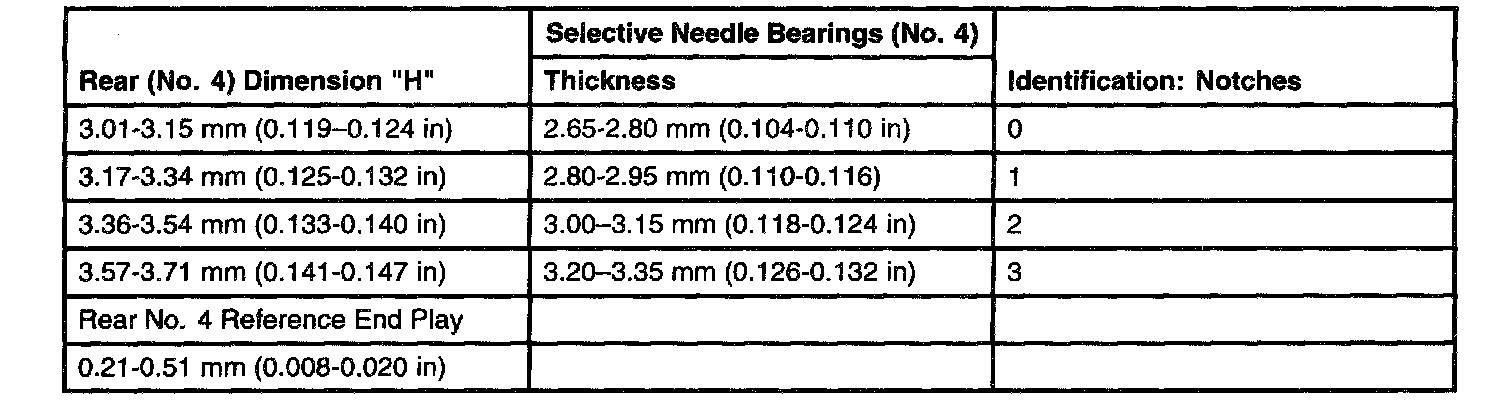

Rear
END PLAY SPECIFICATIONS (5R55E and 5R44E ONLY)

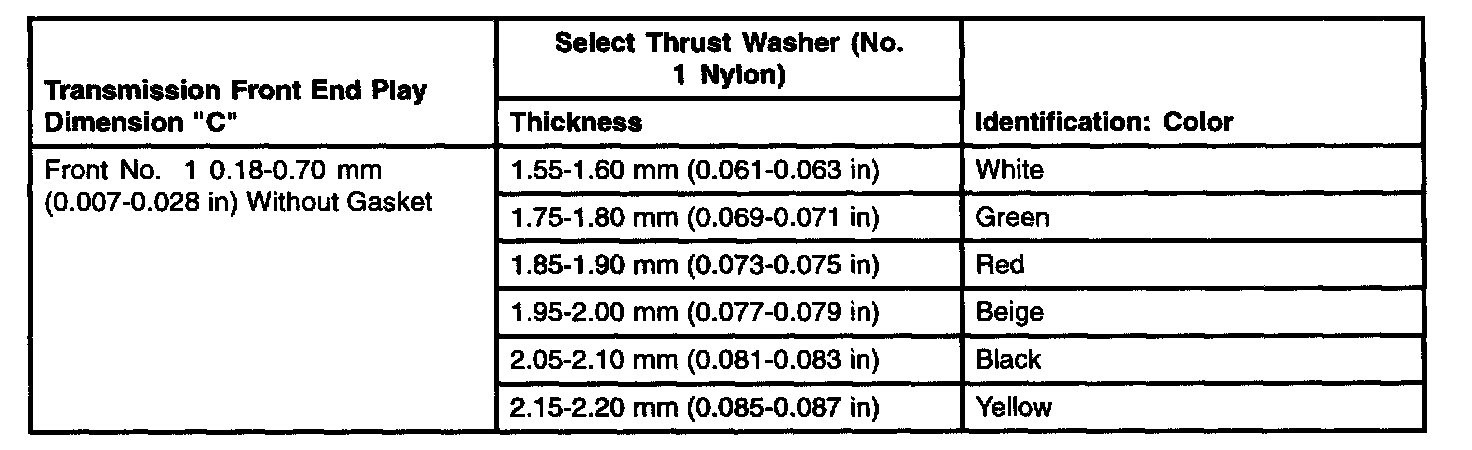

Front

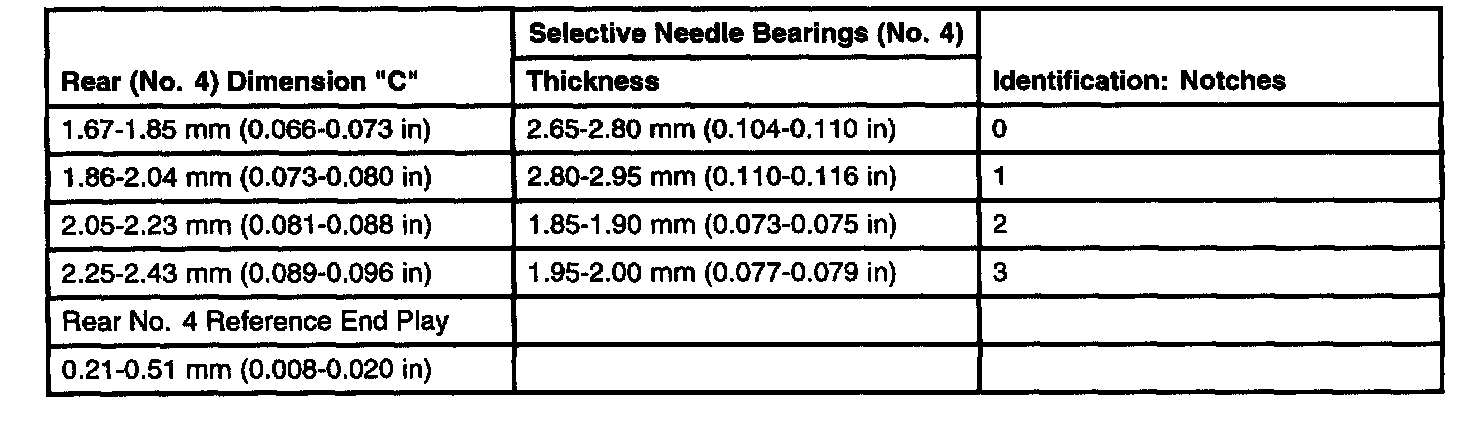

Rear
TORQUE CONVERTER END PLAY SPECIFICATIONS (All Models)

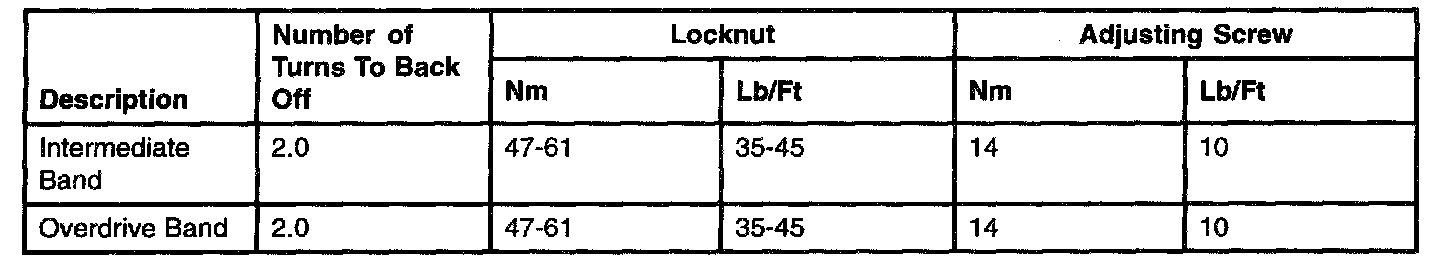

BAND ADJUSTMENT AND TORQUE CHART (All Models)

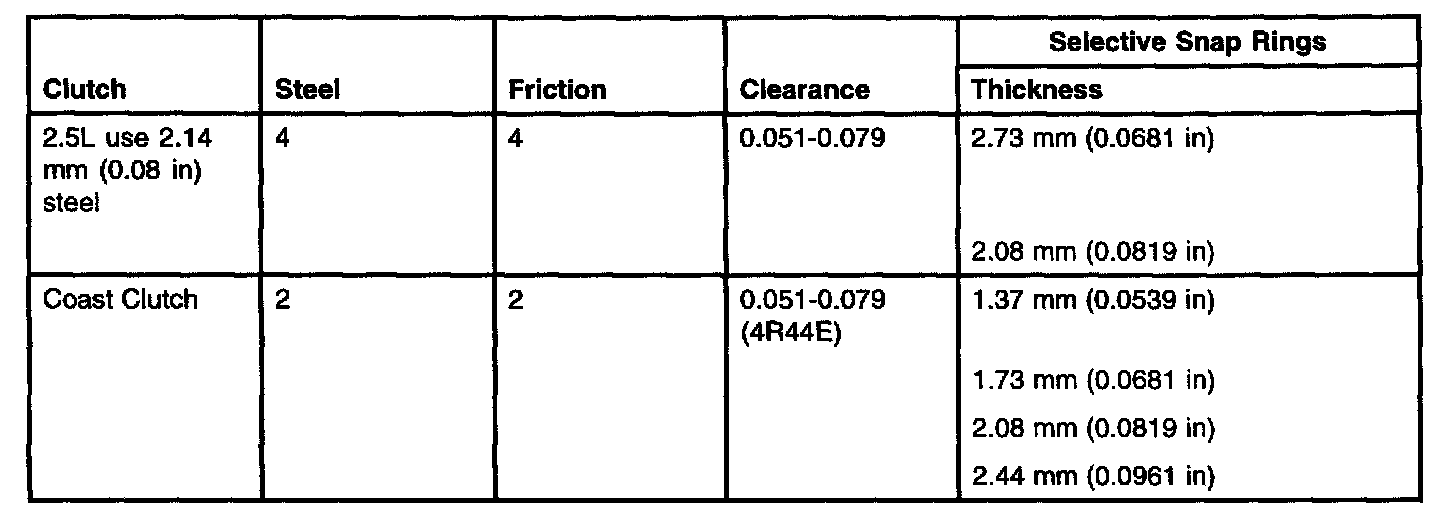

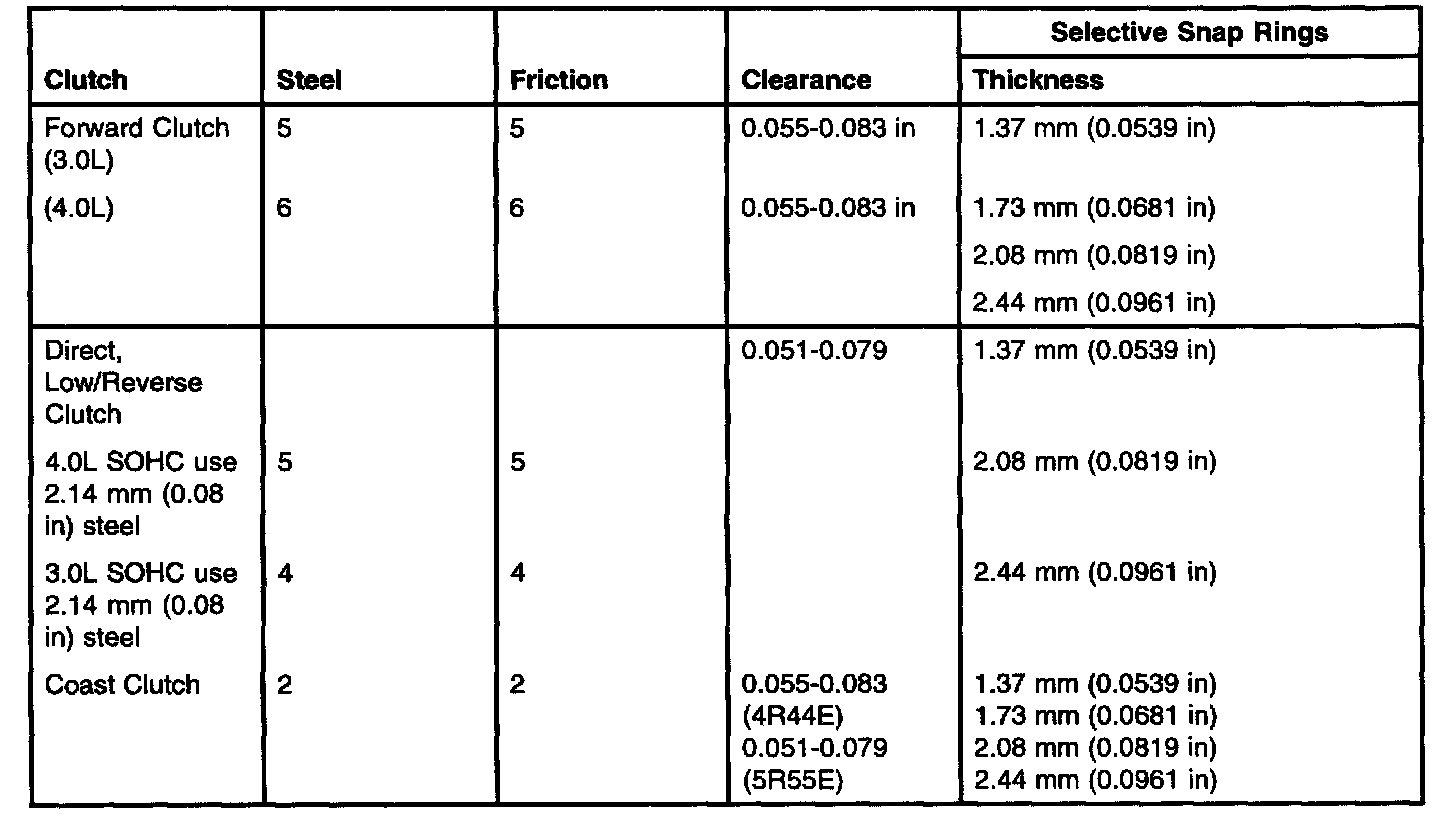

CLUTCH PLATE USAGE AND CLEARANCE SPECIFICATIONS (4R44E ONLY)
CLUTCH PLATE USAGE AND CLEARANCE SPECIFICATIONS (5R55E and 5R44E ONLY)
SELECTIVE SNAP RINGS (All Models)

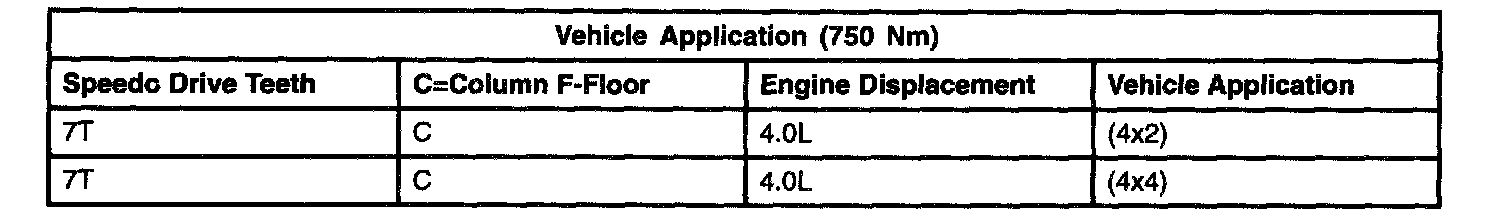

SERVICE IDENTIFICATION MODEL CHART (4R44E)
SERVICE IDENTIFICATION MODEL CHART (5R55E and 5R44E)

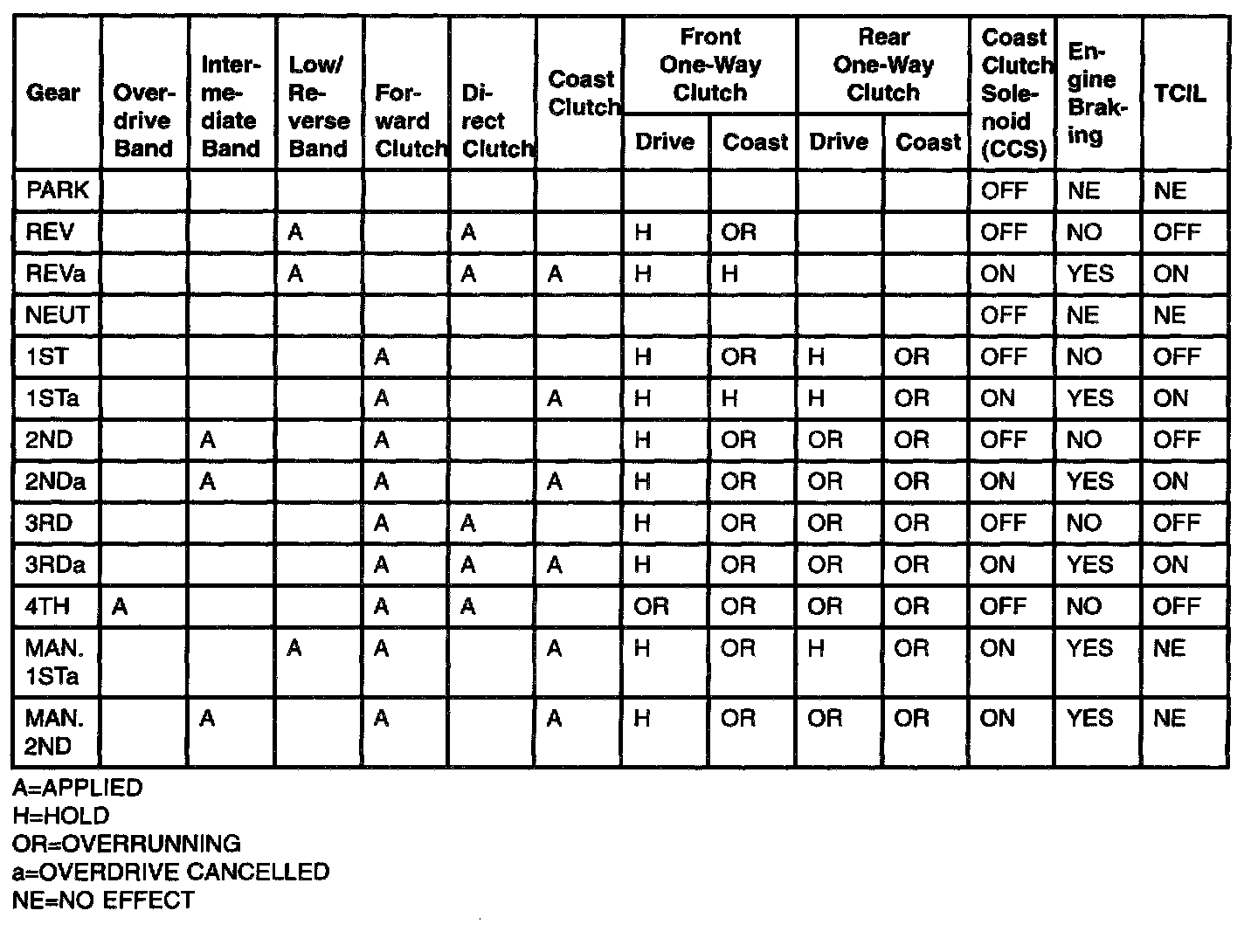

BAND/CLUTCH APPLICATION CHART (4R44E)

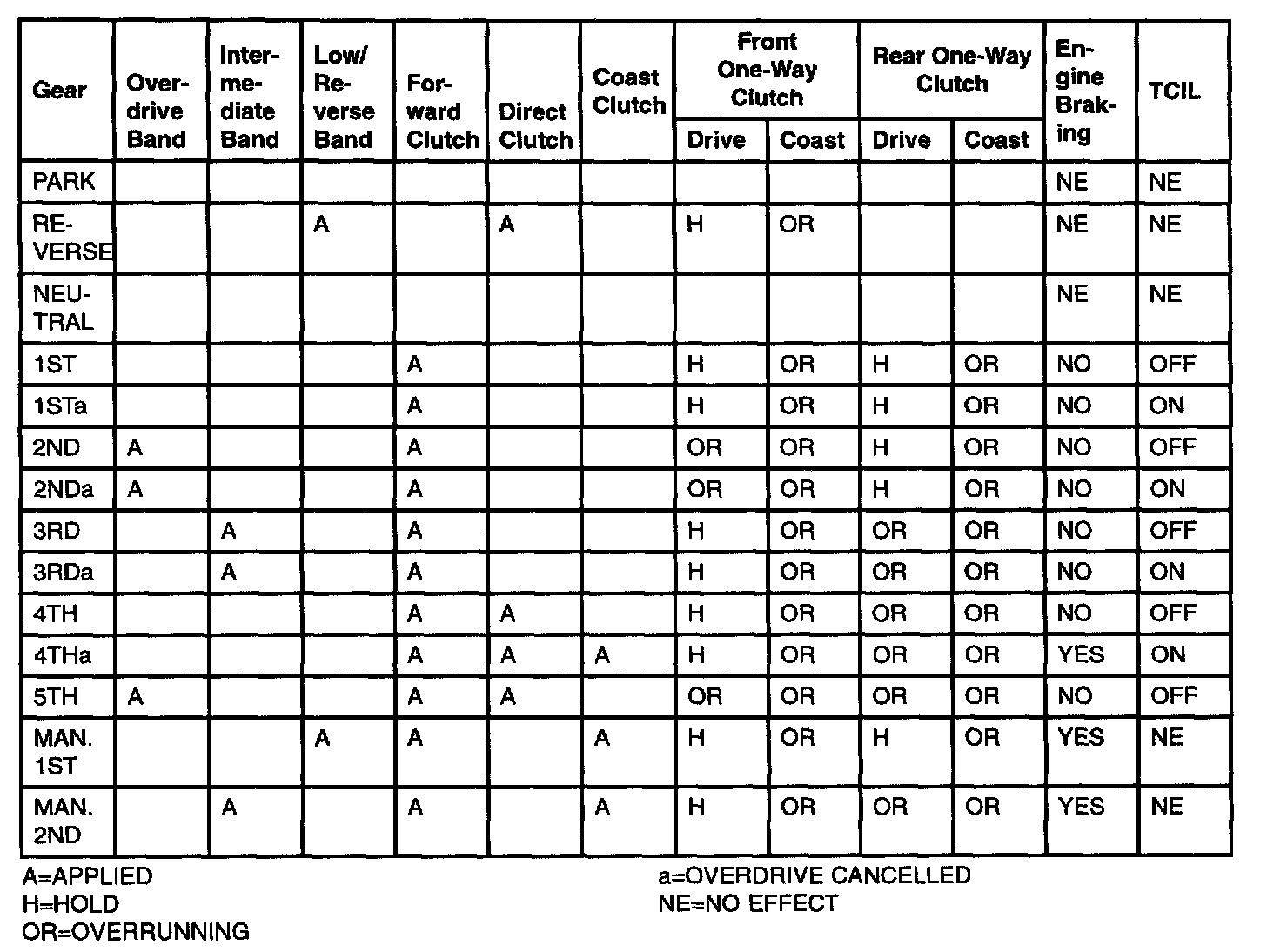

BAND/CLUTCH APPLICATION CHART (5R55E)
