Home >> Mazda >> 2001 >> B3000 SE Cab Plus 2WD V6-3.0L OHV >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine >> Technical Data

Technical Data





General Specifications












Cylinder Head And Valve Train

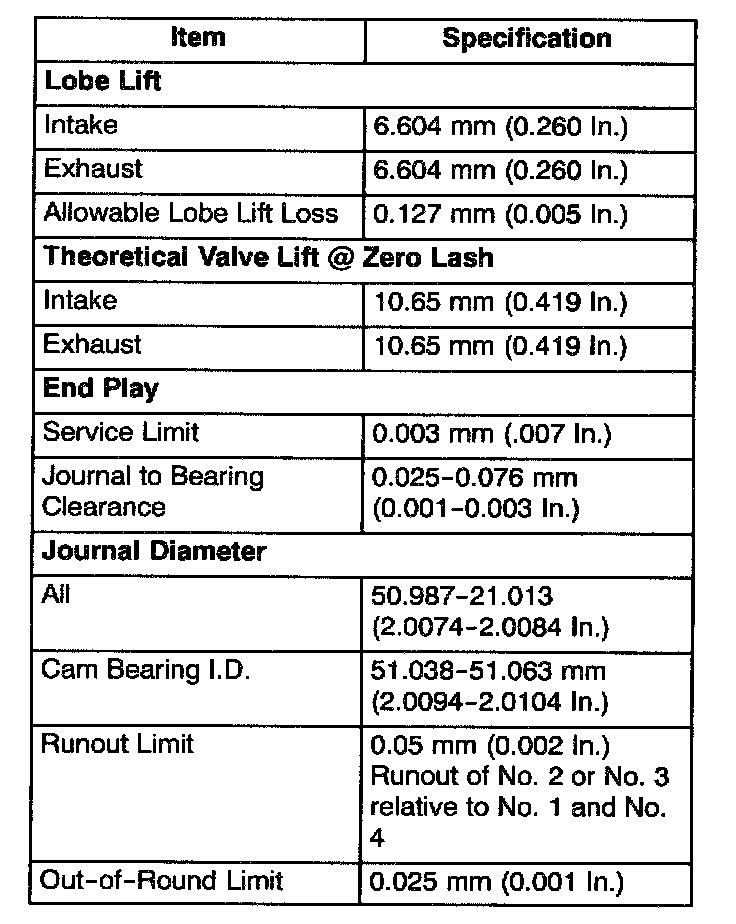

Camshaft Specifications






Cylinder Block Specifications









Crankshaft And Flywheel Specifications












Connecting Rod, Piston And Rings Specifications
