Transfer Case

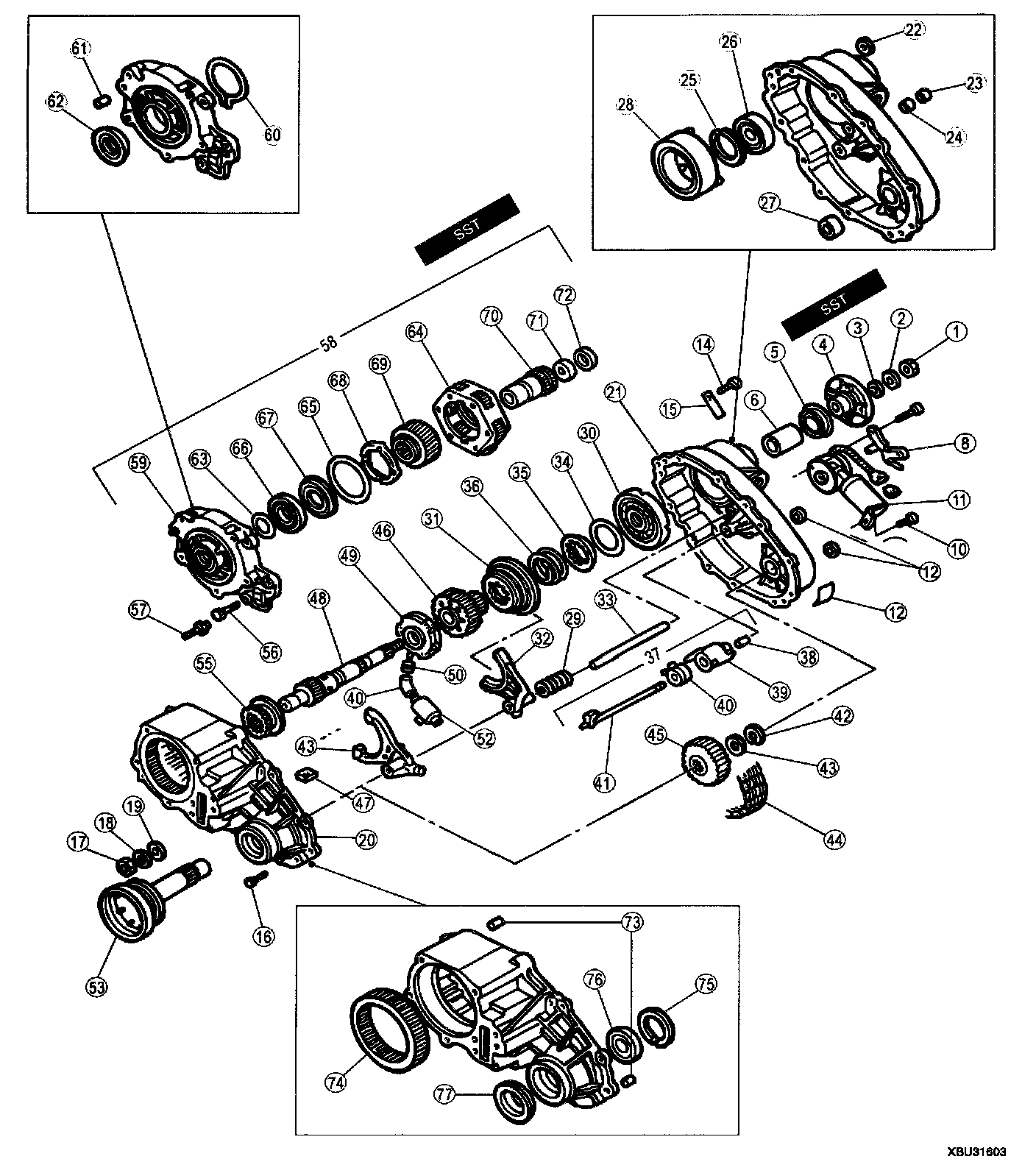

Transfer Case Disassembled View Overhaul w/ Related Components





Part 1 of 2





Part 2 of 2
