Cam Position Sensor Mount: Service and Repair

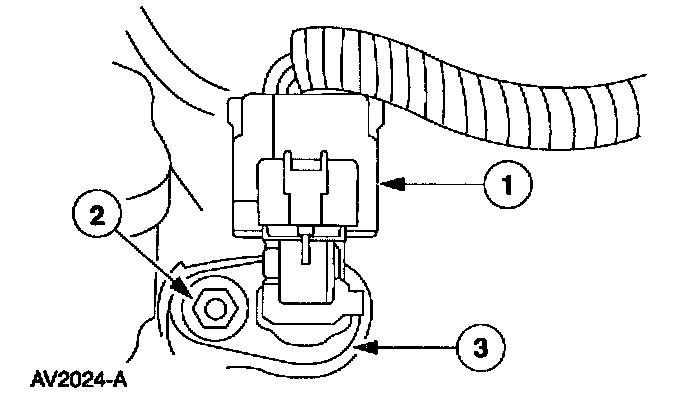

1. Remove the camshaft position (CMP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

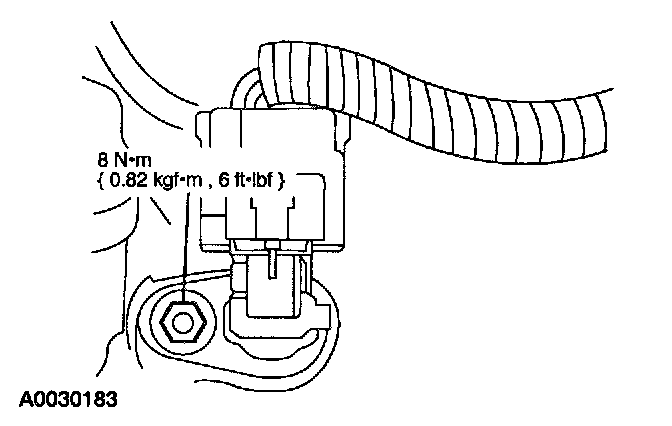

2. To install, reverse the removal procedure.
