Home >> Mazda >> 2001 >> B4000 SE Cab Plus 4 4WD V6-4.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

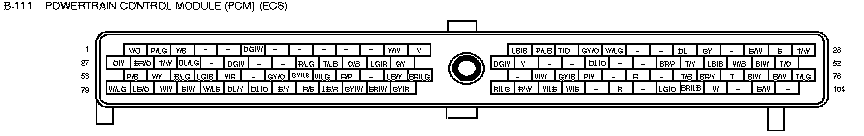

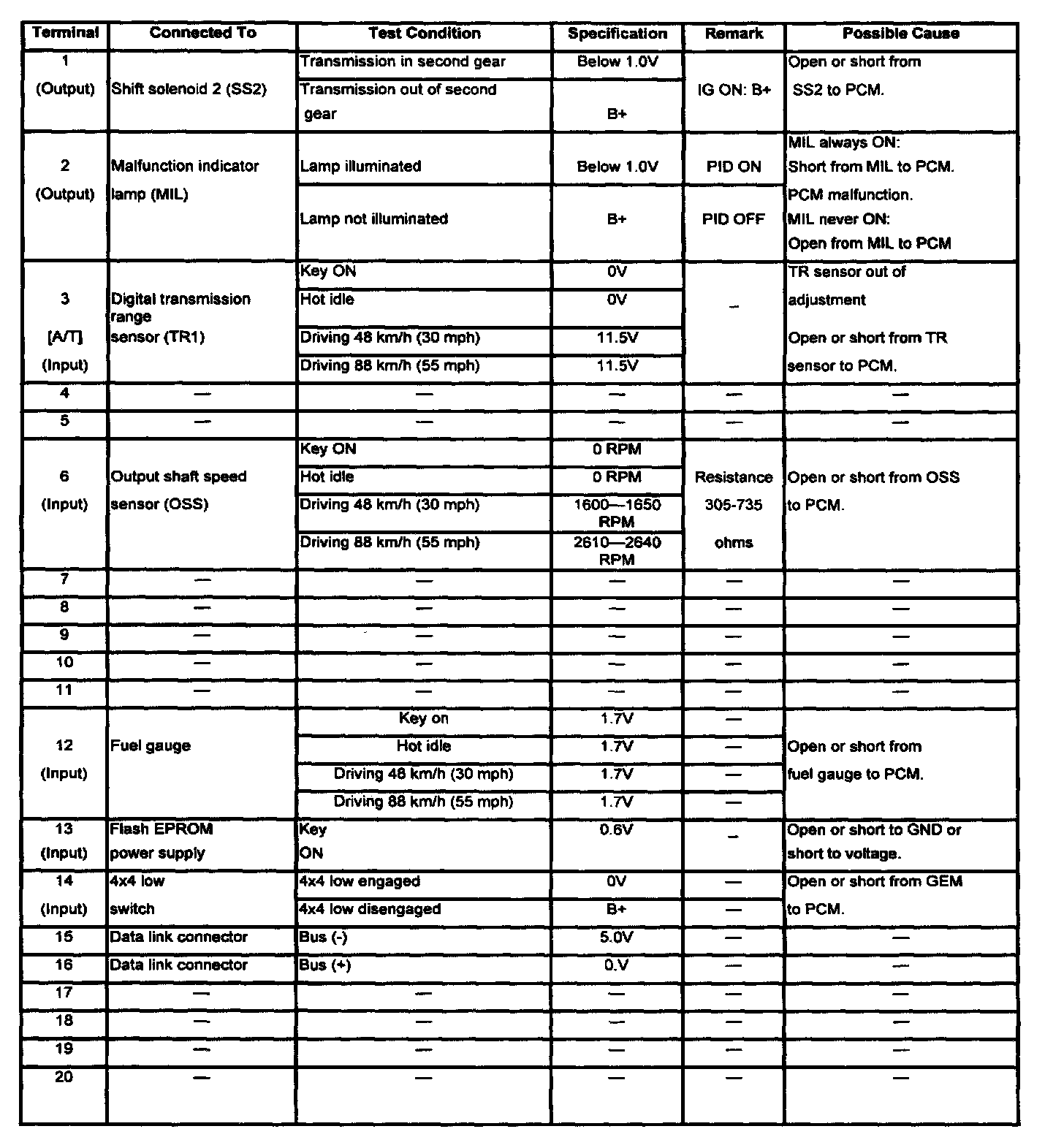

Terminals 1 - 20:

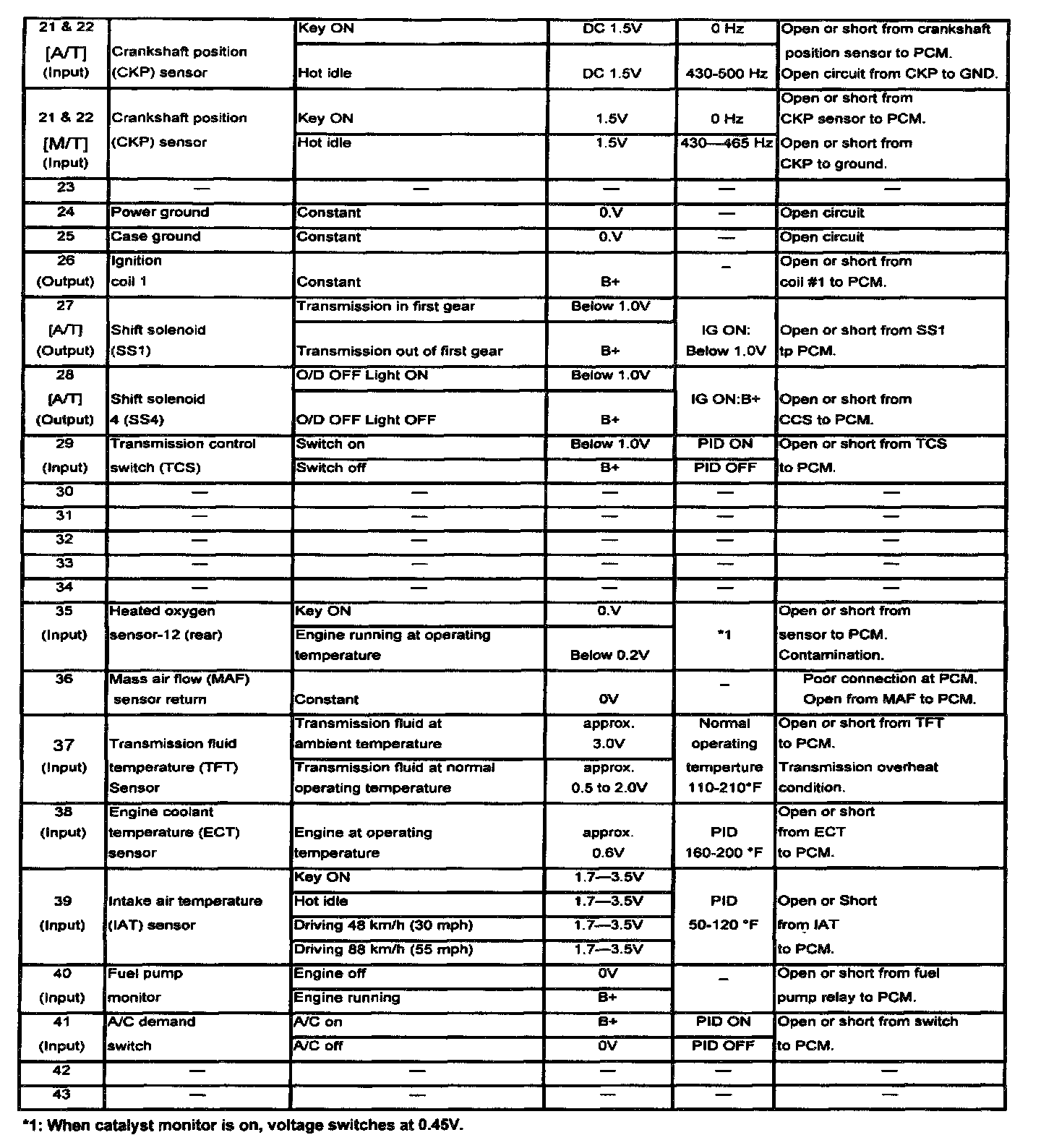

Terminals 21 - 43:

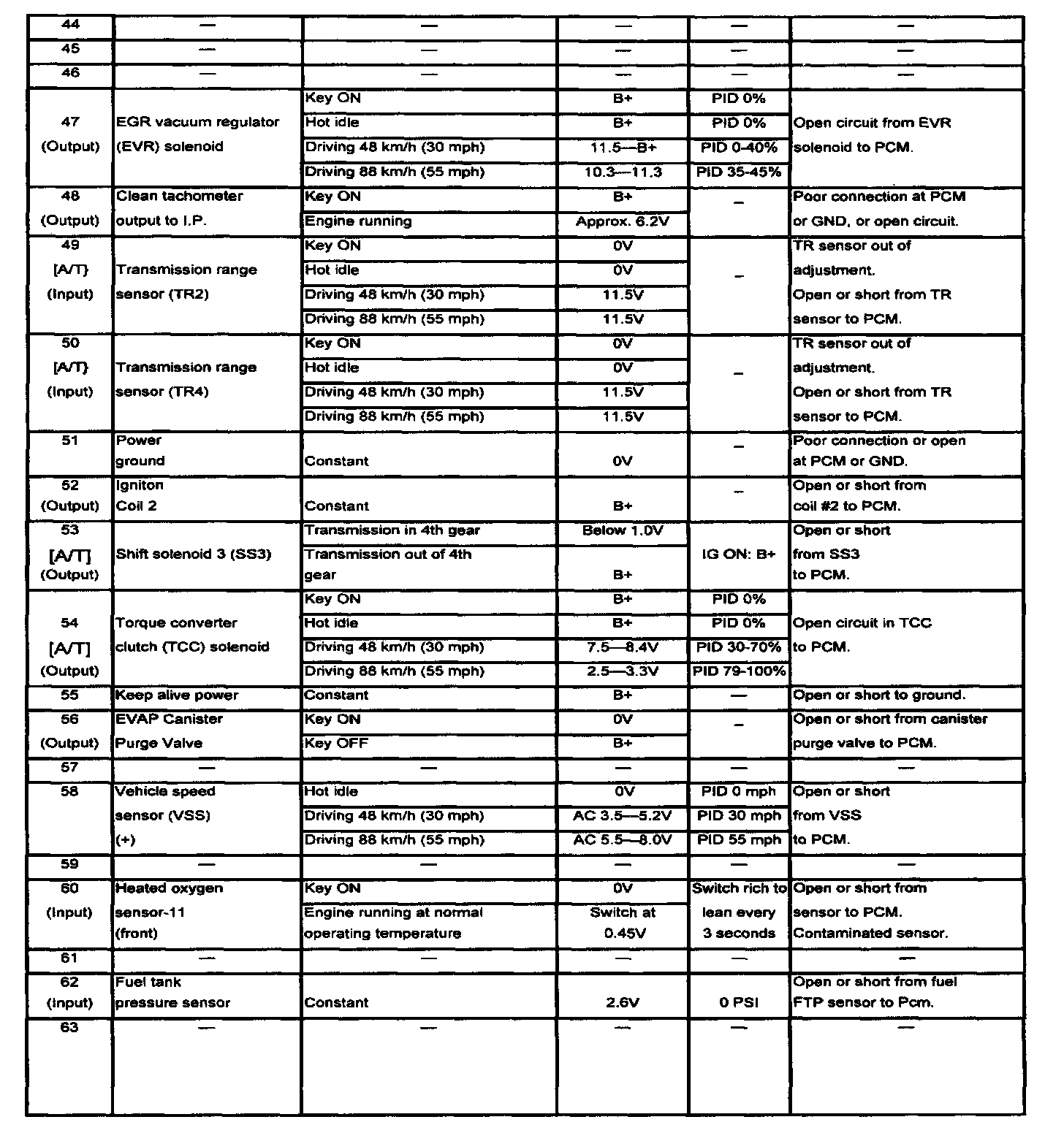

Terminals 44 - 63:

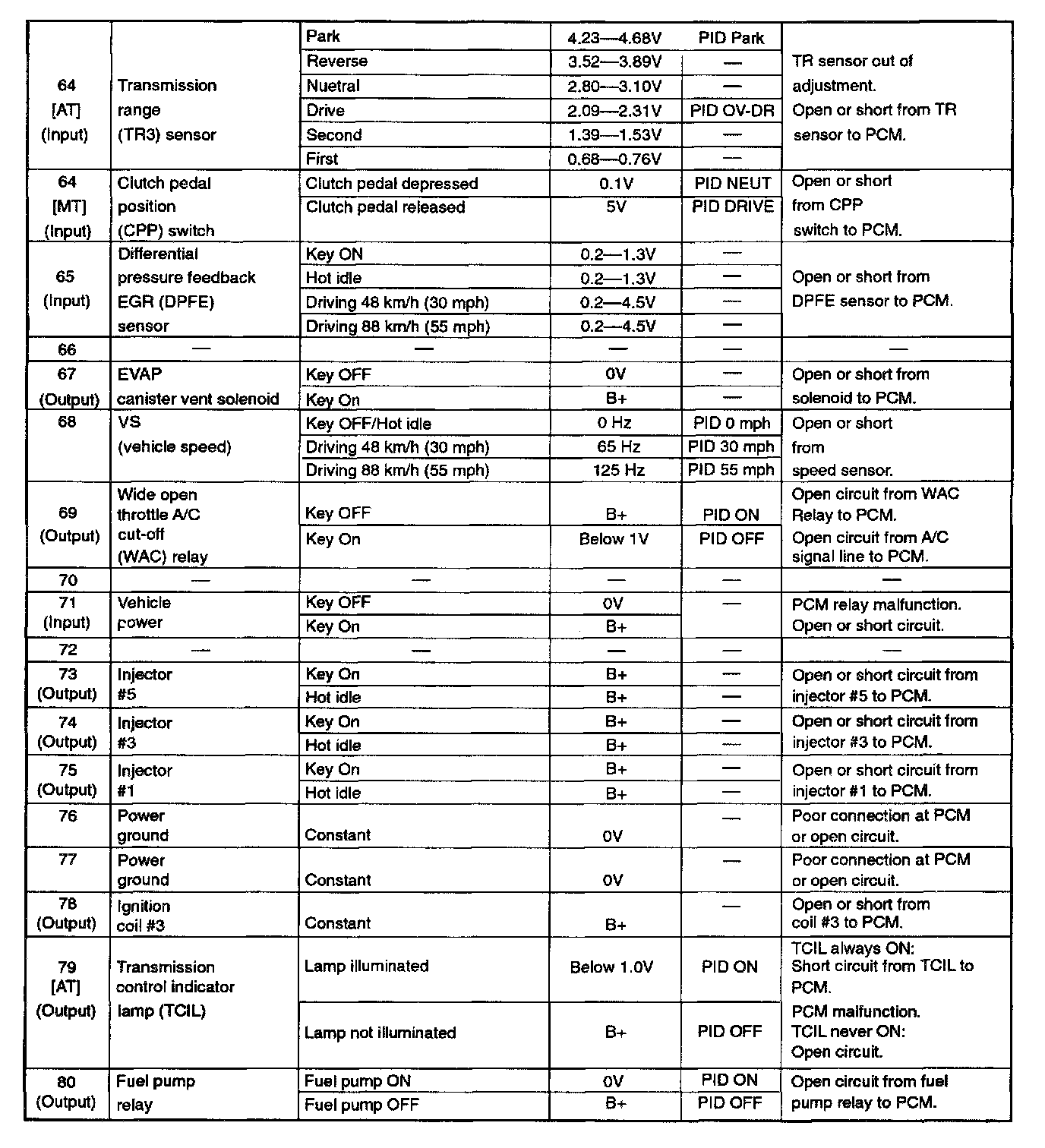

Terminals 64 - 80:

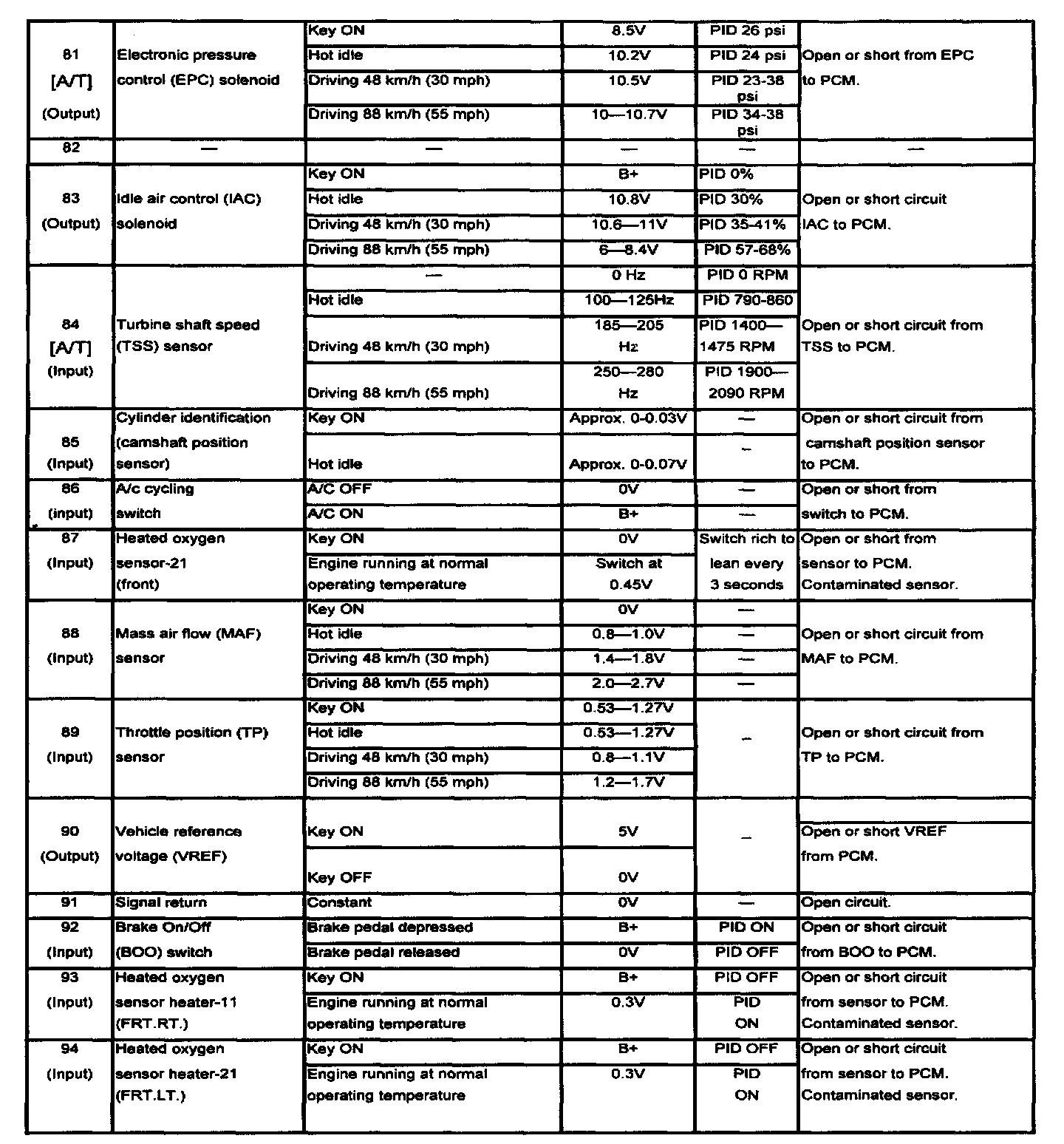

Terminals 81 - 94:

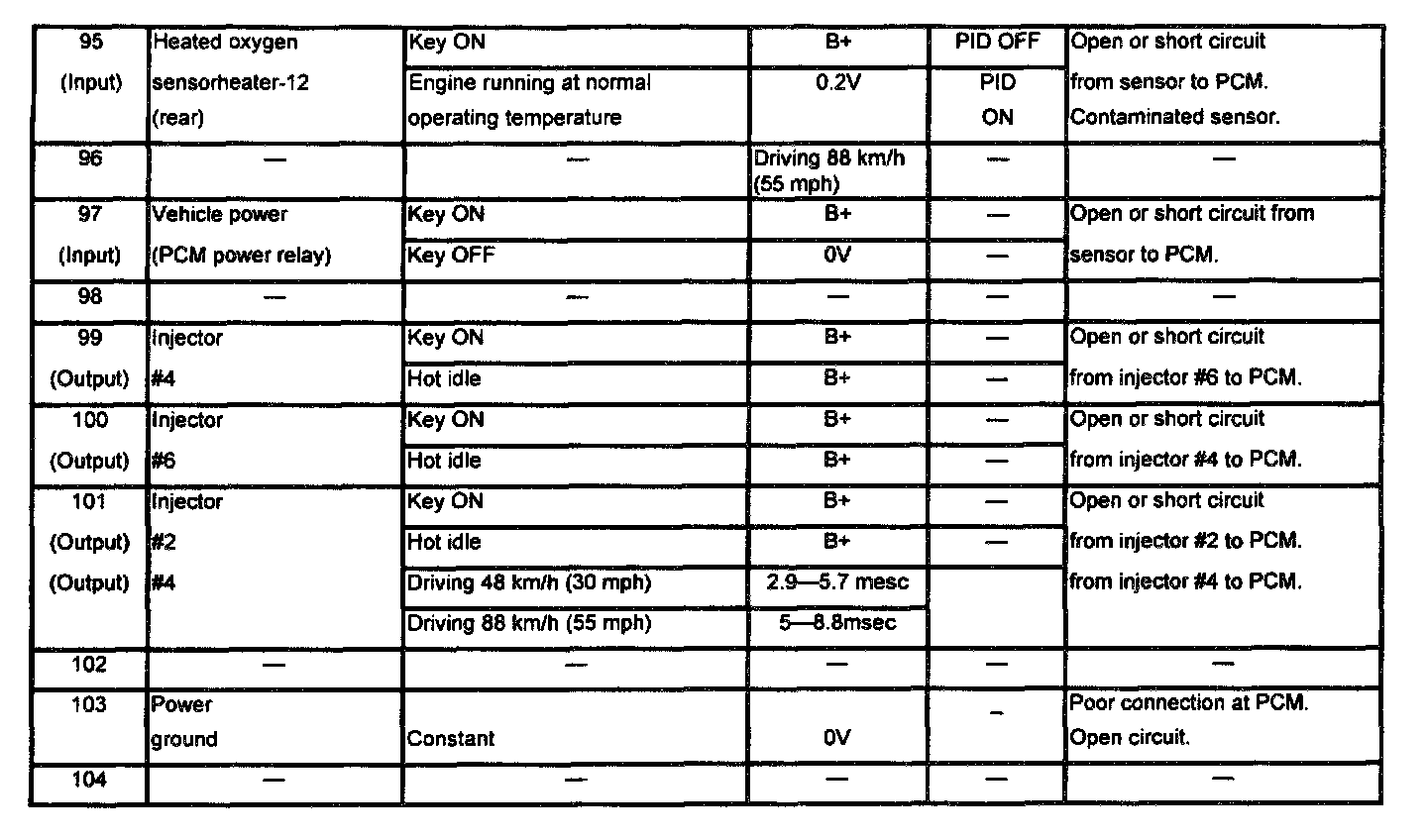

Terminals 95 - 104:
