Cooling System

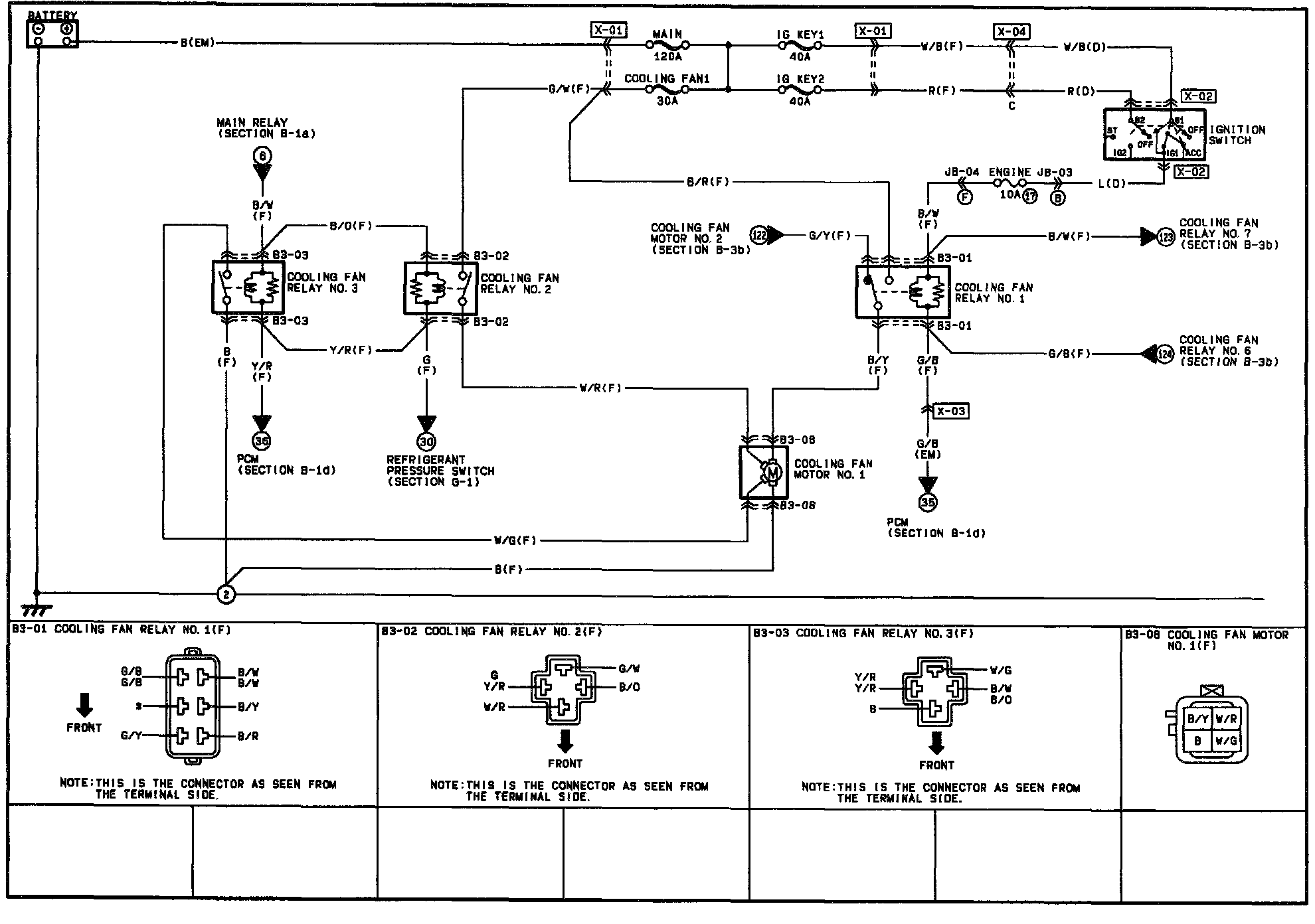

B-3a - Cooling Fan System (With A/C) Circuit:
B-3b - Cooling Fan System (With A/C) Circuit:

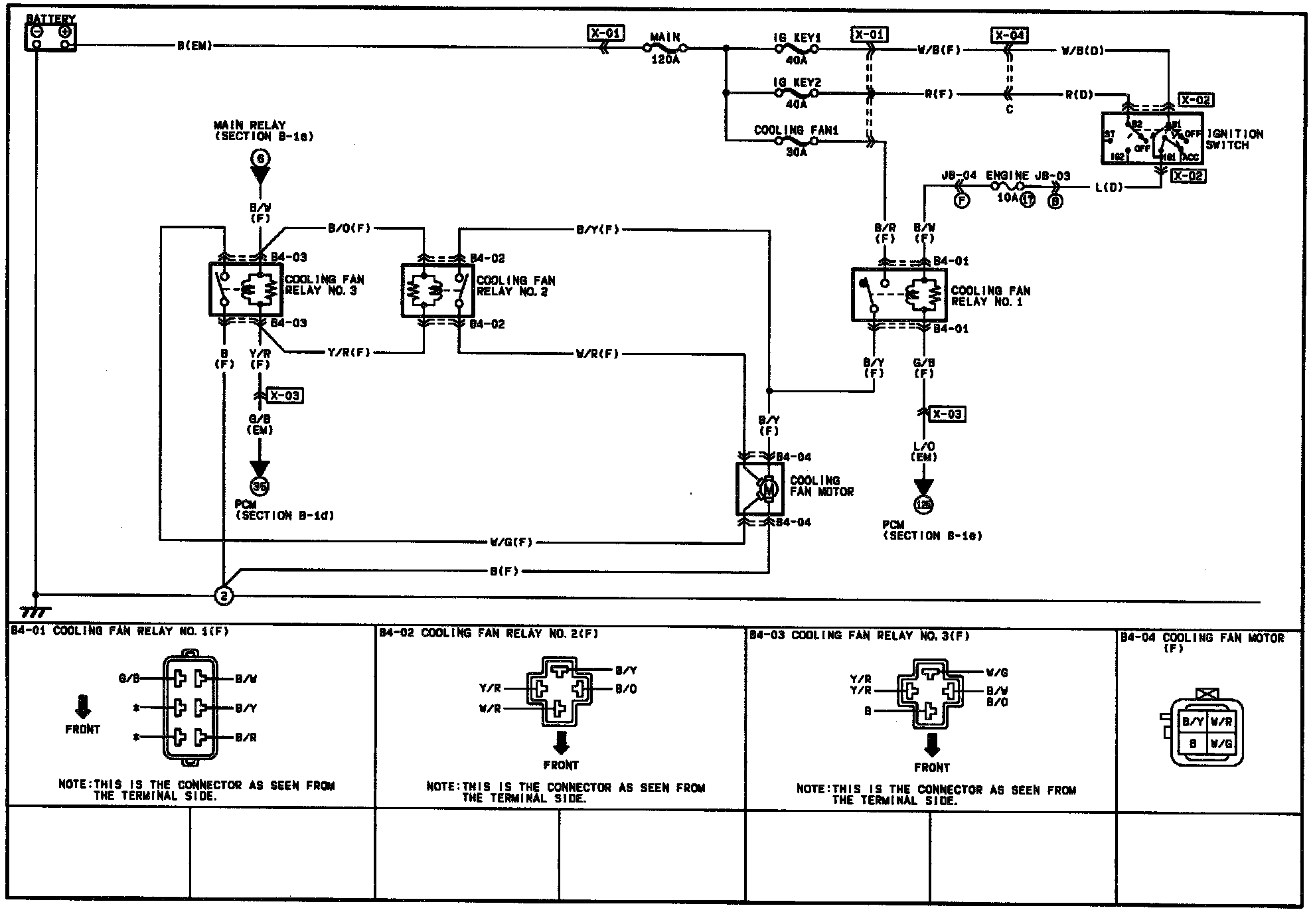

B-4 - Cooling Fan System (Without A/C) Circuit:
Wiring DiagramsNOTE: To view other sections referred to in these diagrams, see
Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
