Rear Resistor
REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the rear side trim (RH).
3. Remove in the order indicated below.

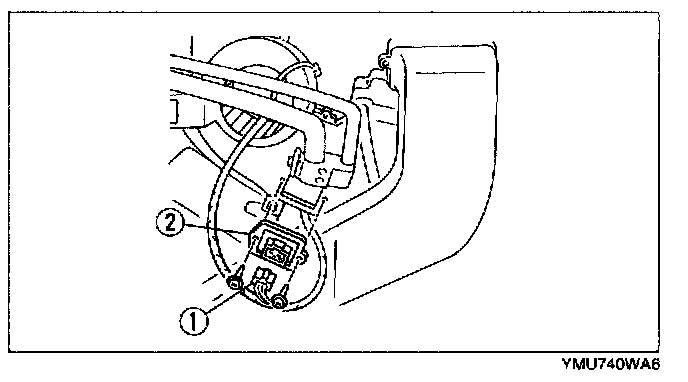

1. Connector
2. Rear resistor
4. Install in the reverse order of removal.
1. Disconnect the negative battery cable.
2. Remove the rear side trim (RH).
3. Remove in the order indicated below.
1. Connector
2. Rear resistor
4. Install in the reverse order of removal.
