Front Fan Switch

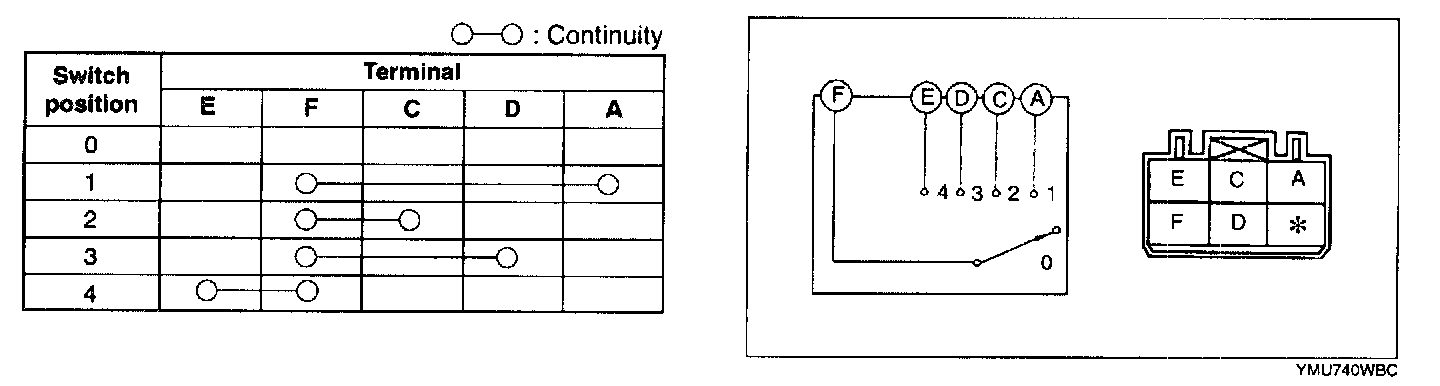

1. Inspect for continuity between the front fan switch terminals using an ohmmeter.
- If not as specified replace the front fan switch.
