Compressor Clutch: Service and Repair
MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY 1.
Remove the A/C compressor.
2.

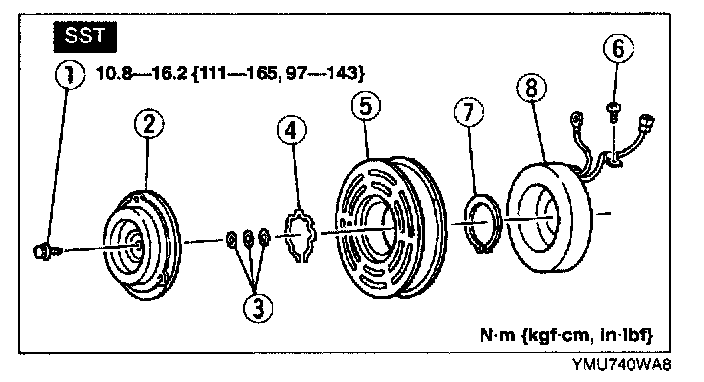

Disassemble in the order indicated below.
1.
Bolt
2.
Pressure plate
3.
Shim
4.
Snap ring
5.
A/C compressor pulley
6.
Screw
7.
Snap ring
8.
Stator
3.
Assemble in the reverse order of disassembly.
4.
Adjust the magnetic clutch clearance.

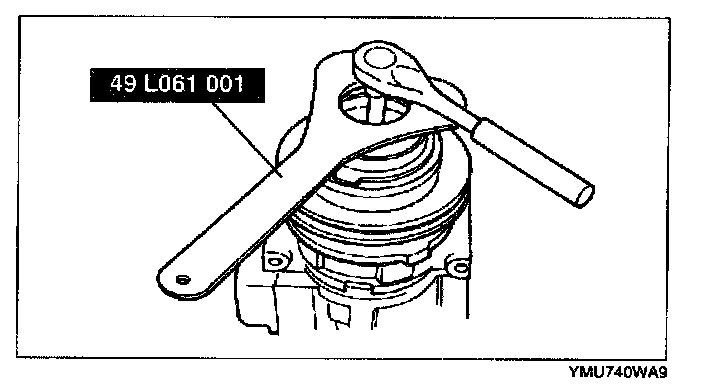

Bolt Disassembly Note 1.
Remove the bolt using the SST.
