Courtesy Lamp: Service and Repair

INTERIOR LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

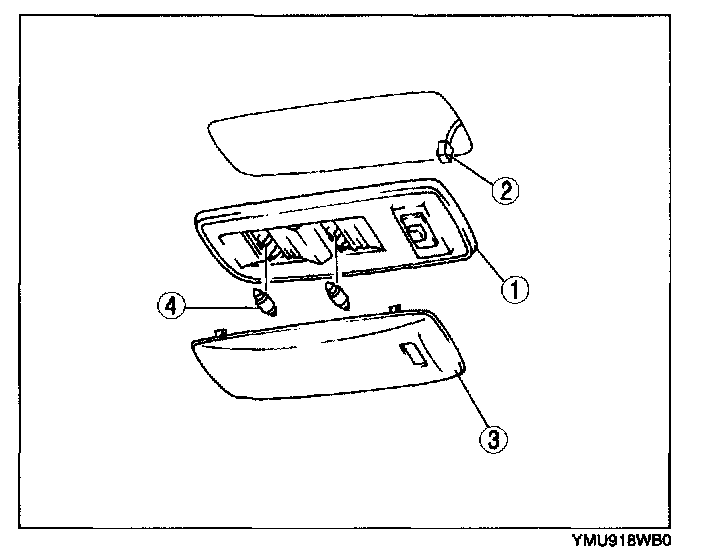

2. Remove in the order indicated below.
1. Interior light
2. Connector
3. Lens
4. Interior light bulb

3. Install in the reverse order of removal.

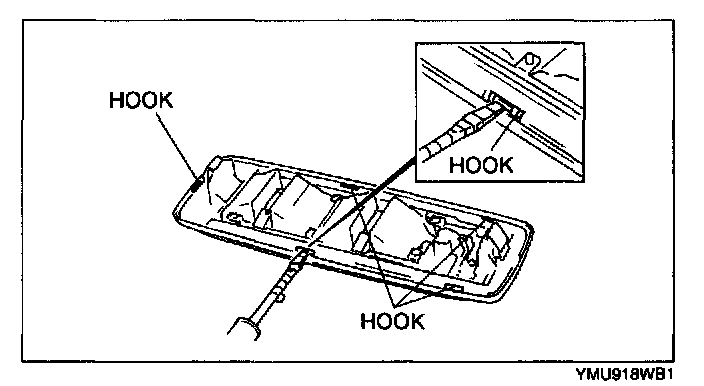

Lens Removal Note
1. Insert a tape-wrapped flathead screwdriver into the service hole.
2. Push the hooks to remove the lens.
