Front Combination Light

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

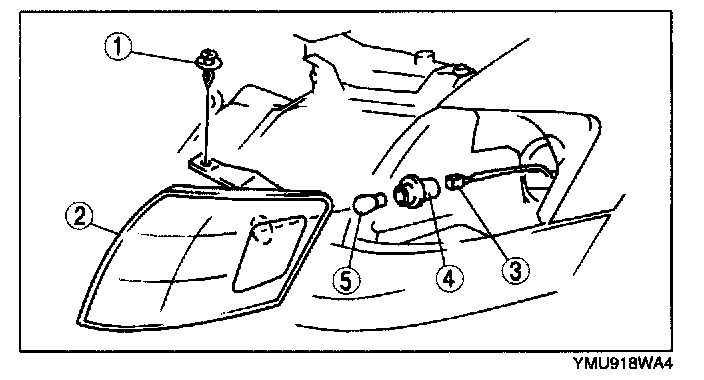

2. Remove in the order indicated below.
1. Fastener
2. Front combination light
3. Connector
4. Socket
5. Front turn light/parking light bulb

3. Install in the reverse order of removal.

Front Combination Light Removal Note

CAUTION: To prevent the front combination light and bumper from being scratched, attach protective tape to the metal ruler and the bumper.

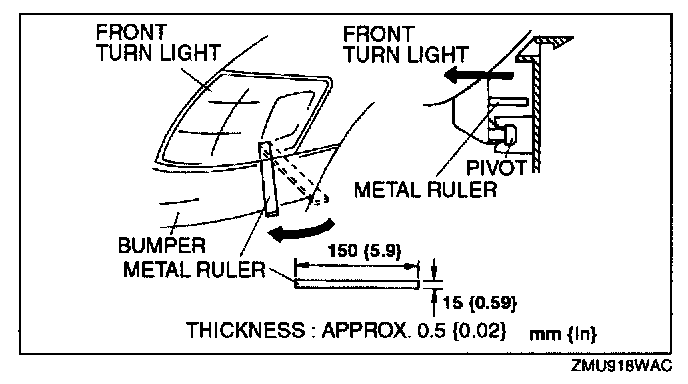

1. Insert a 15 mm {0.59 in} maximum width metal ruler into the end of the front combination light approximately 75 - 80 mm {3.0 - 3.1 in}. Rotate the metal ruler towards the front of the vehicle and remove the front combination light.
