X - Common Connector List
X - Common Connector List

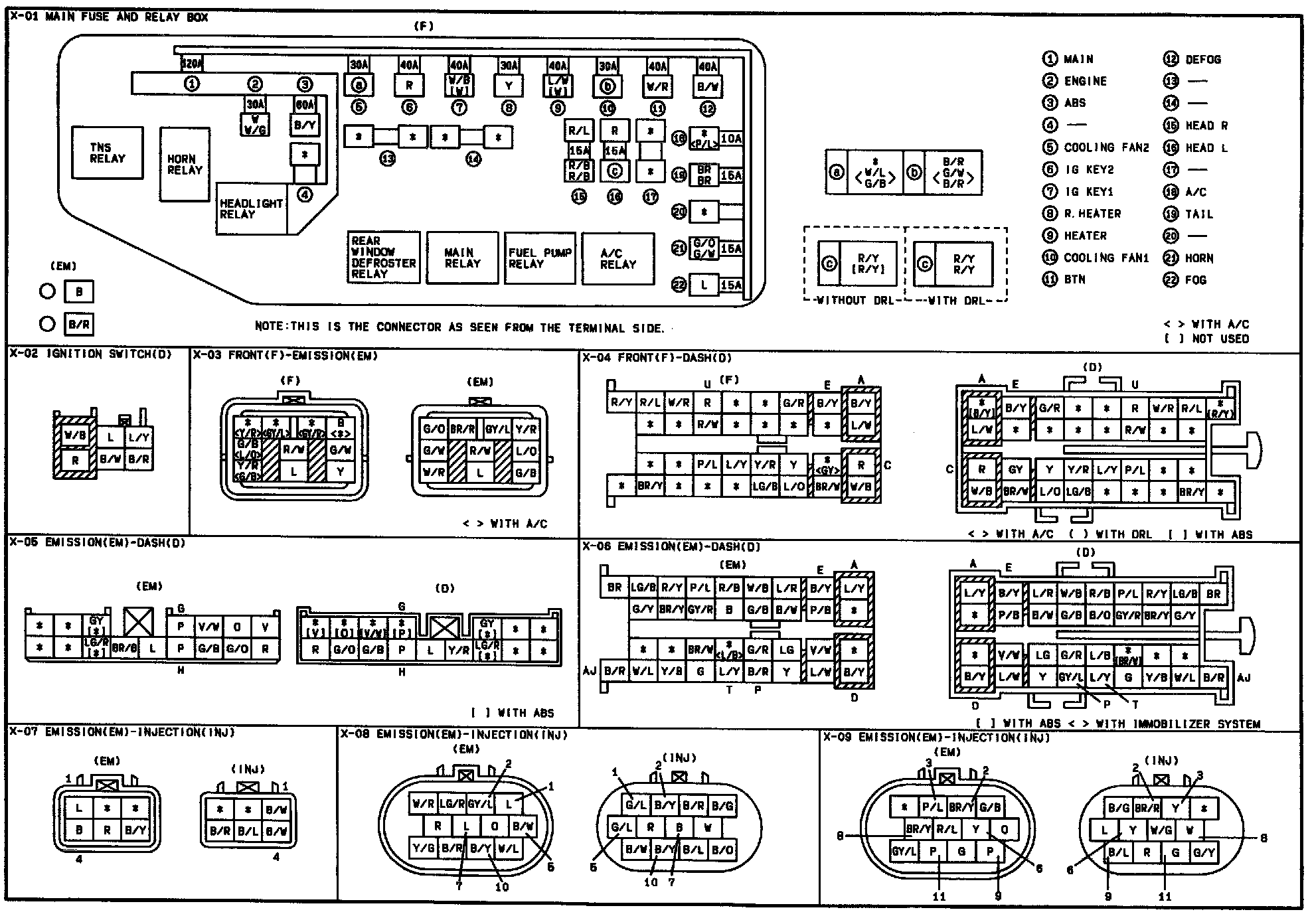

X-1 - Common Connector List:
X-2 - Common Connector List:

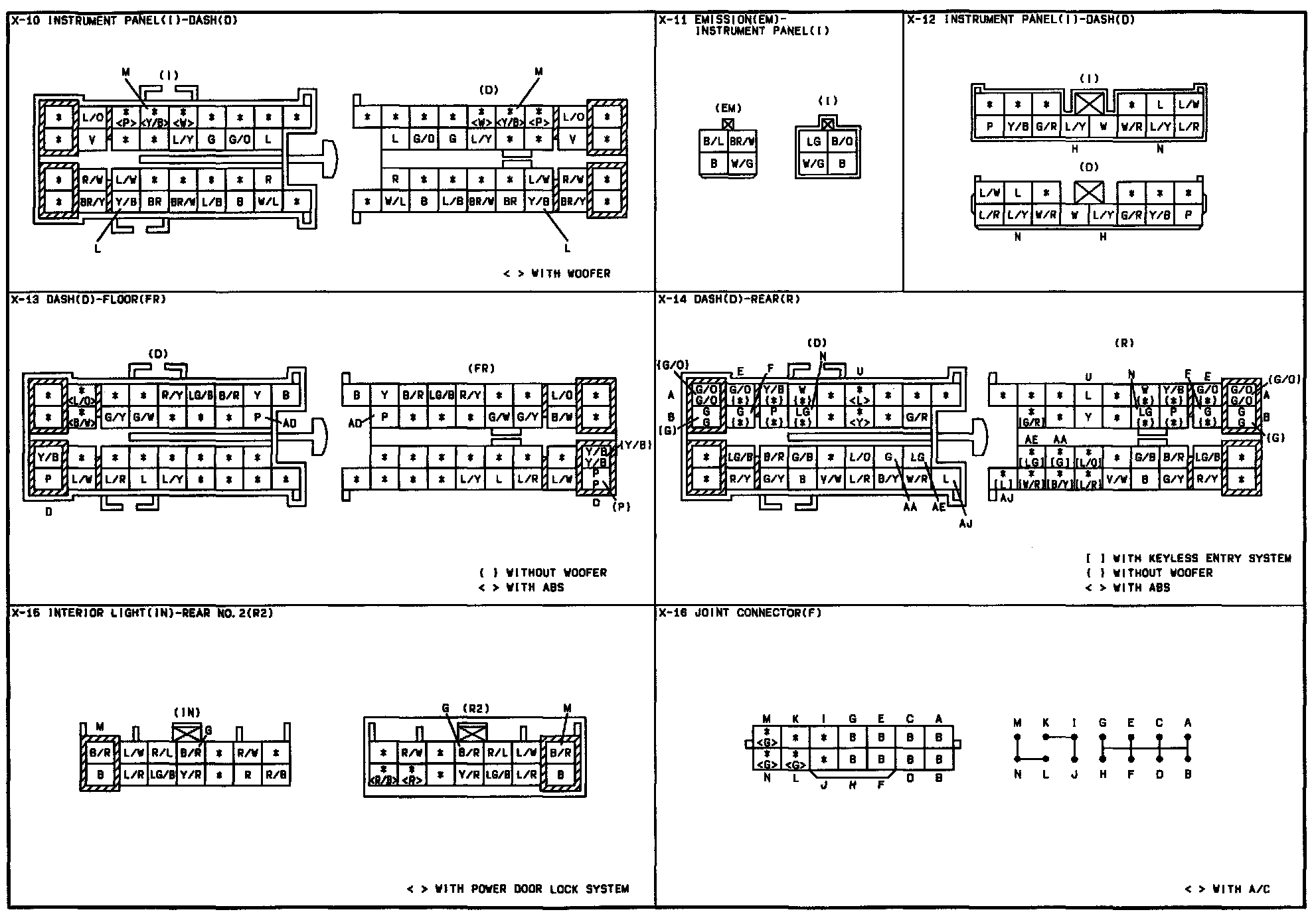

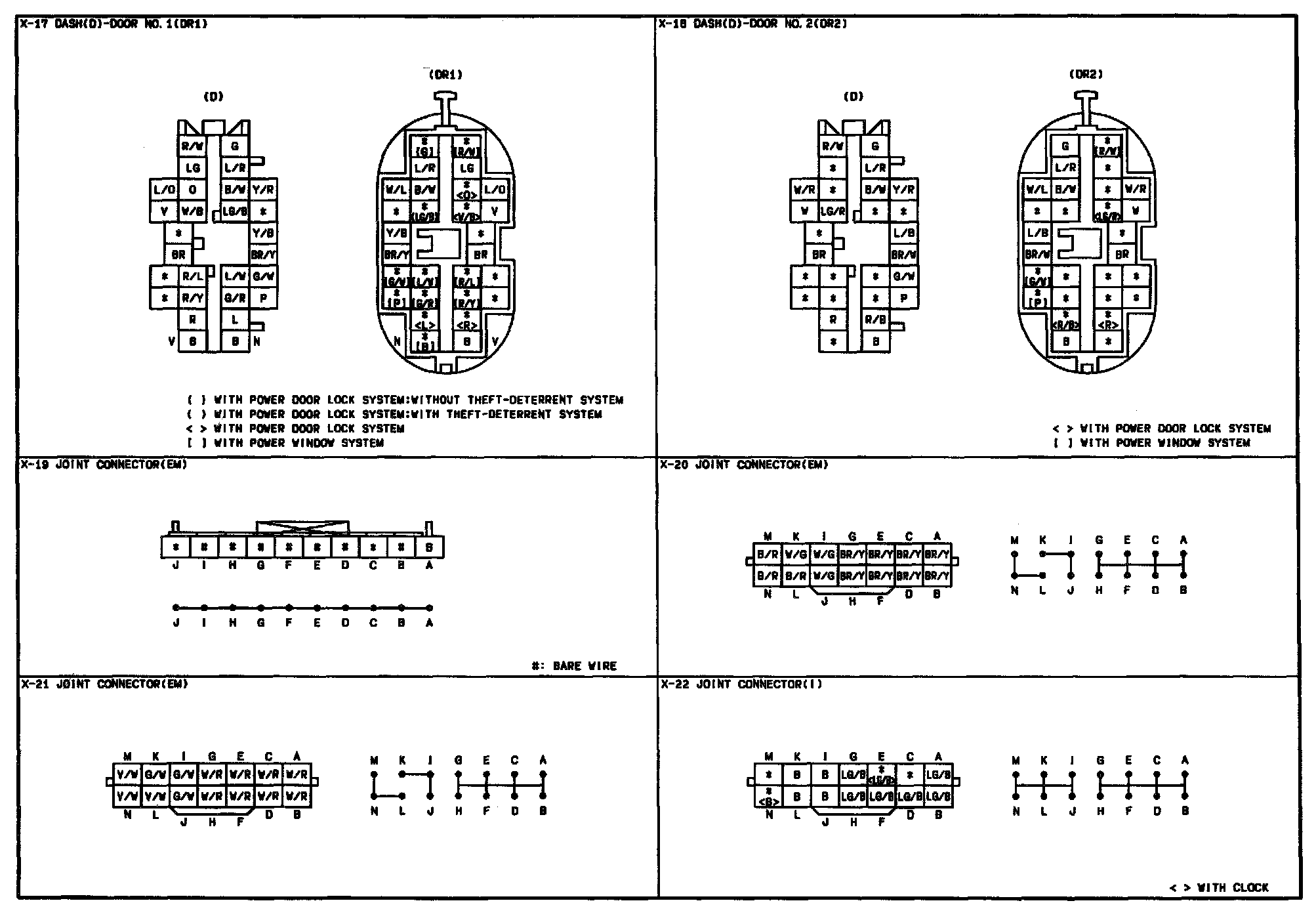

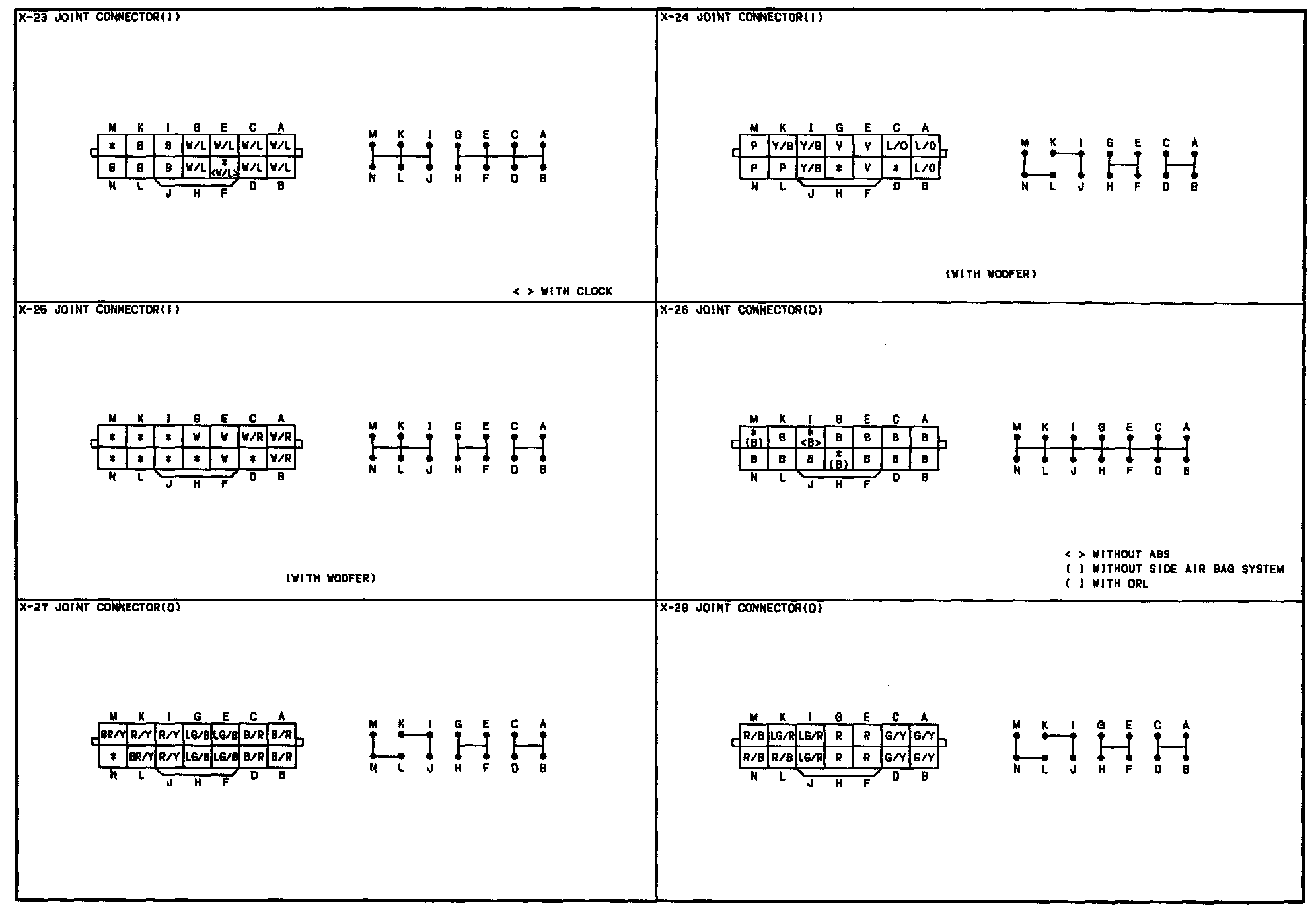

X-3 - Common Connector List:
X-4 - Common Connector List:
