Quick Diagnostic Symptom Chart
Quick Diagnostic Symptom Chart

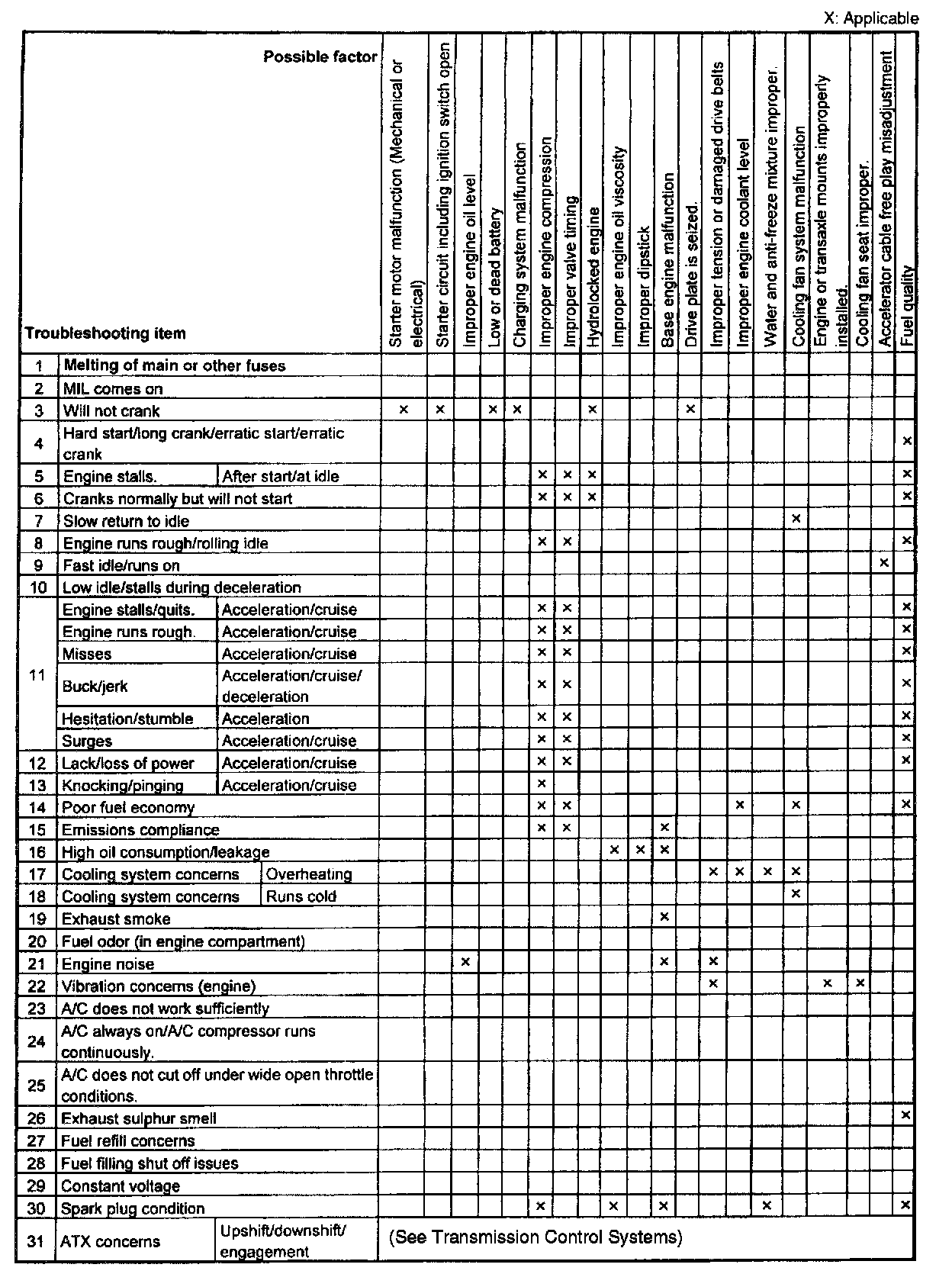

Quick Diagnosis Chart (Part 1):

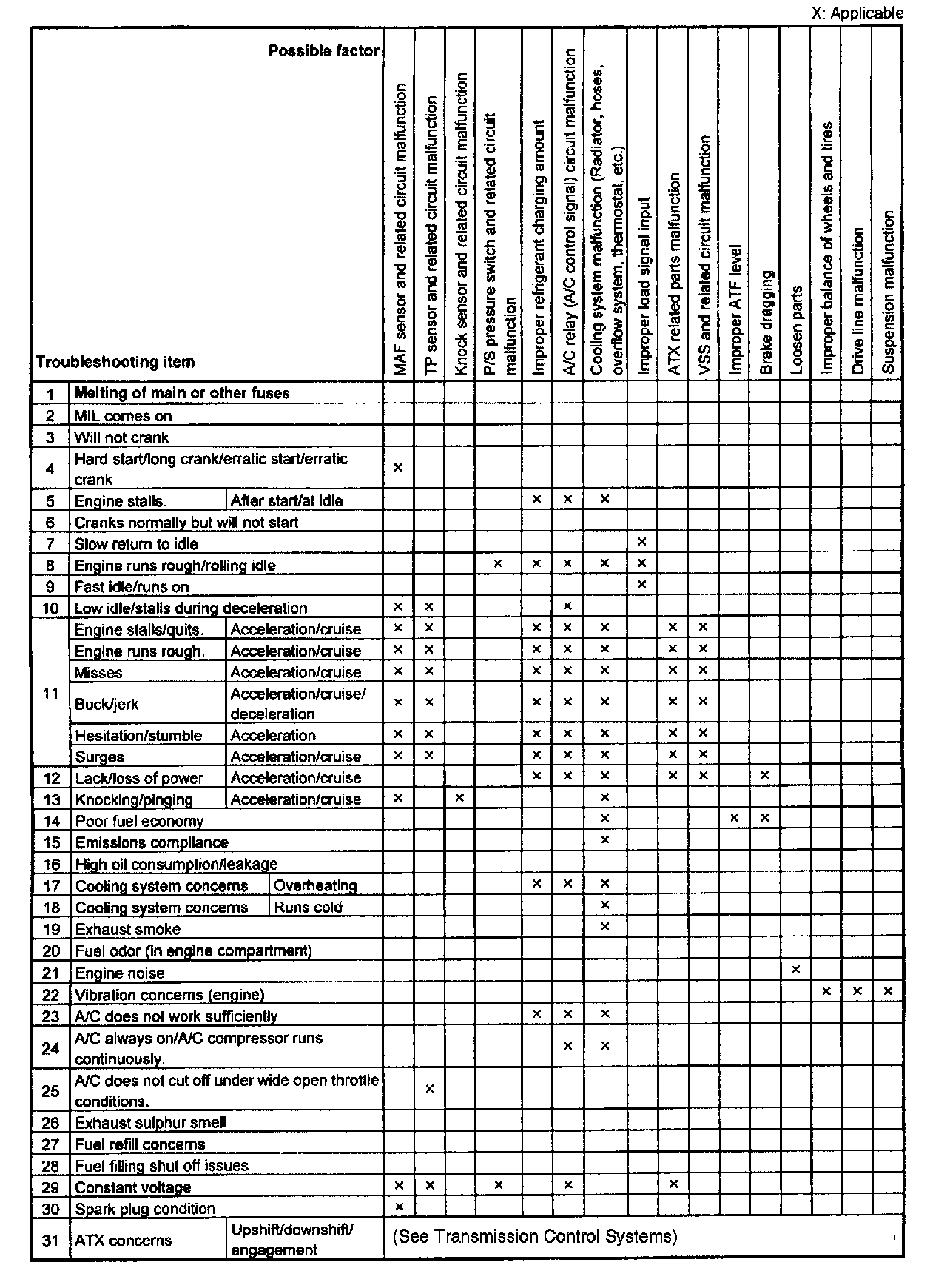

Quick Diagnosis Chart (Part 2):

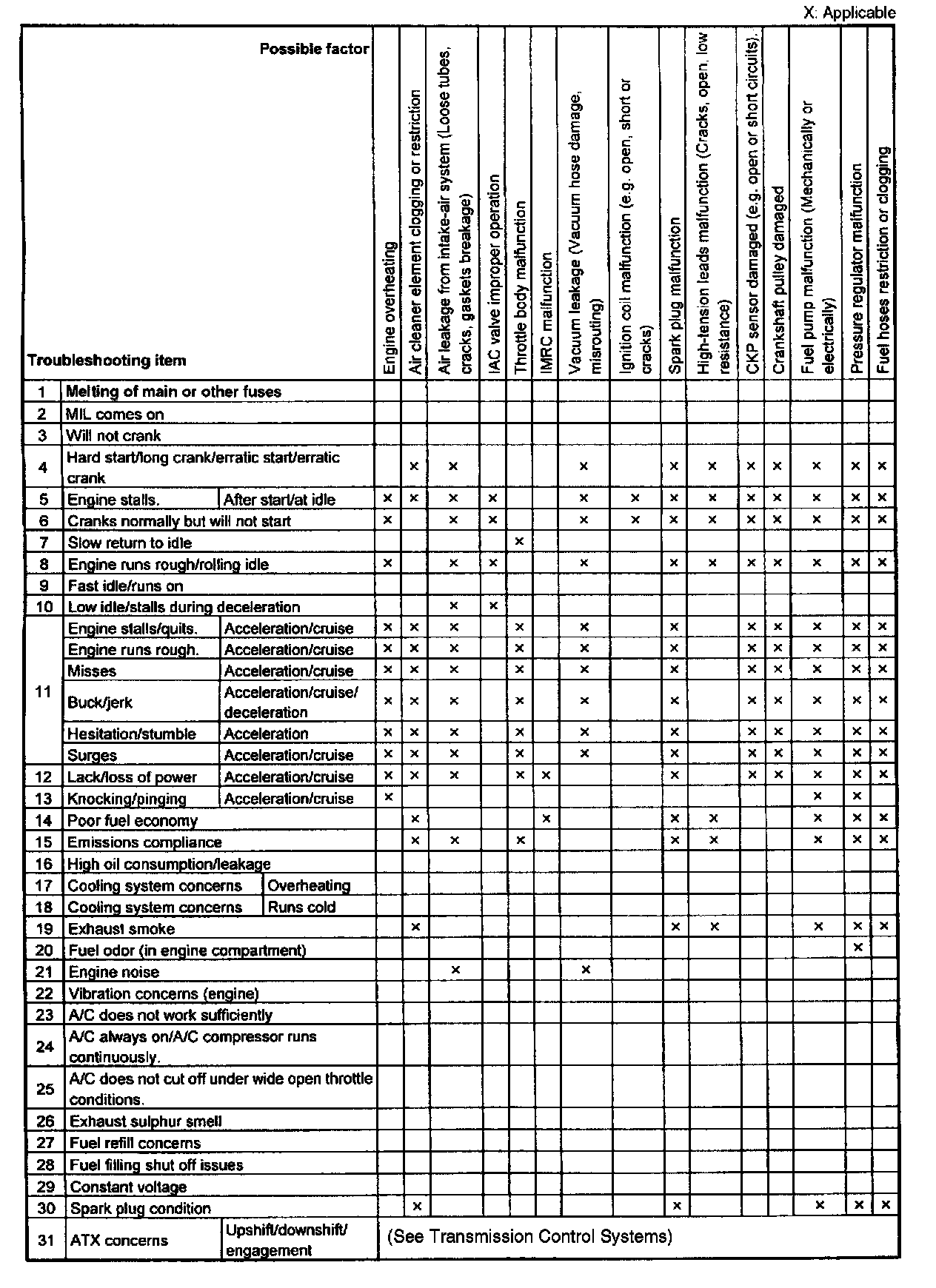

Quick Diagnosis Chart (Part 3):

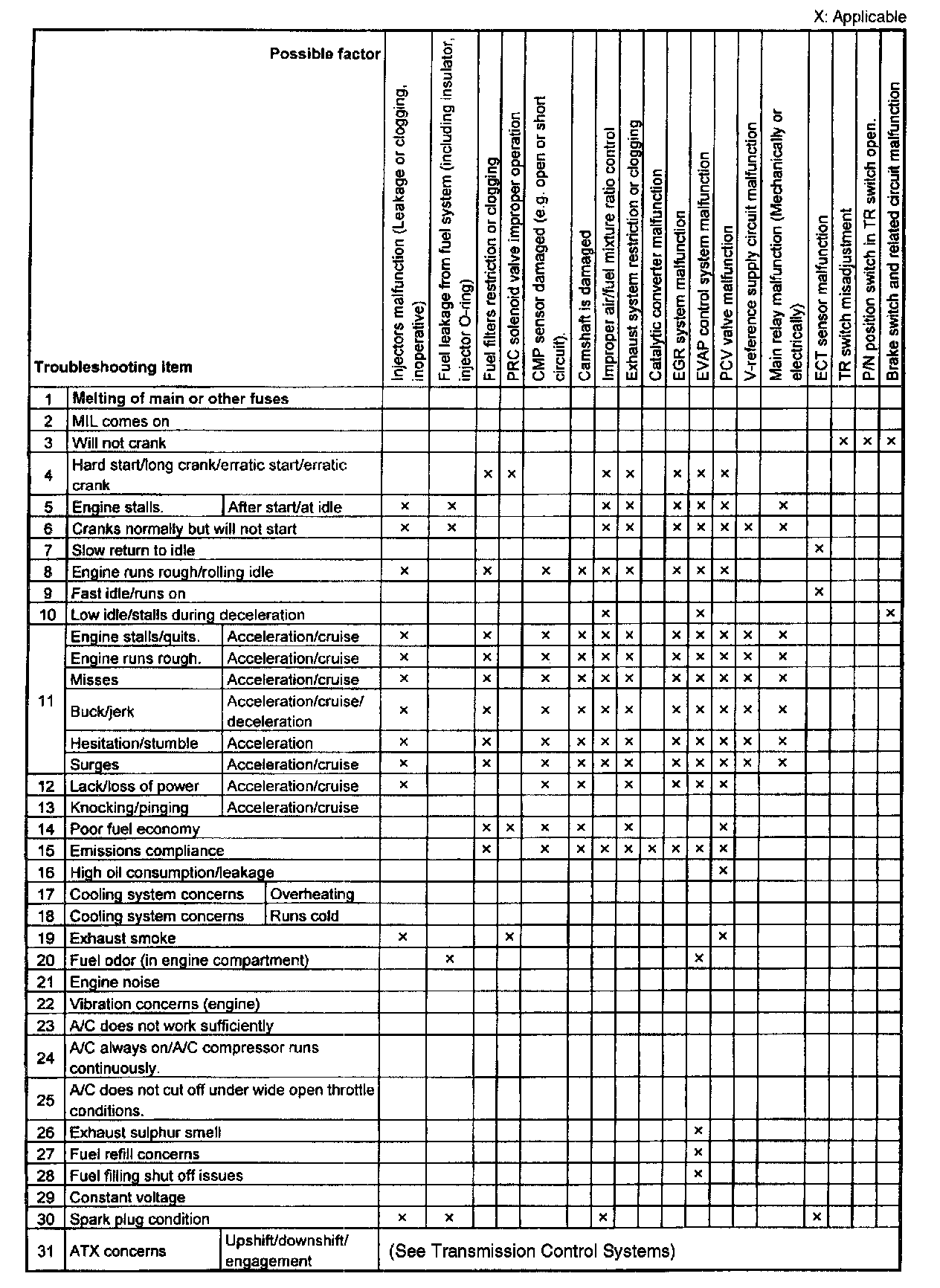

Quick Diagnosis Chart (Part 4):
