Voltage Signal: Testing and Inspection

Manufacturer Specific Pattern

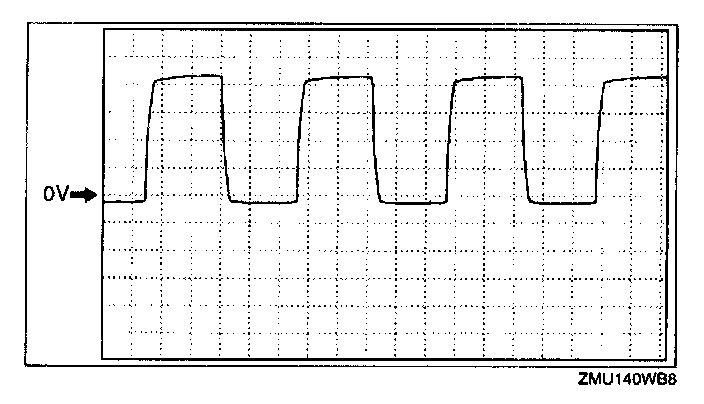

Generator output voltage signal

- PCM terminal: 30 (+) <-> 103(-)
- Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
- Vehicle condition: Idle after warm up
