Key Interlock Resistor Inspection

KEY INTERLOCK RESISTOR INSPECTION
Resistance Inspection
1. Disconnect the negative battery cable.





2. Disconnect the key interlock resistor connector.

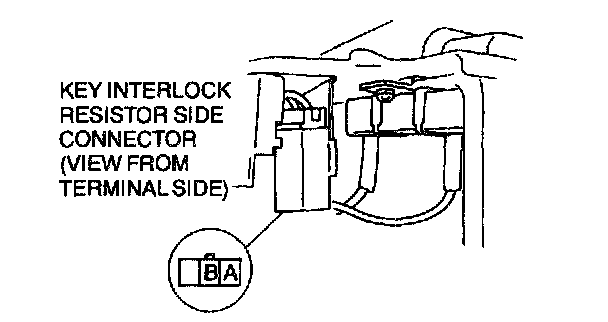

3. Inspect for resistance between terminals A and B.
- If not correct, replace the key interlock resistor.
Resistance 6.65 - 7.35 Ohms
4. Connect the key interlock resistor connector.
5. Connect the negative battery cable.
