Transmission Temperature Sensor/Switch: Testing and Inspection

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION
On-Vehicle Inspection
1. Disconnect the coupler component.
2. Remove the oil dipstick.

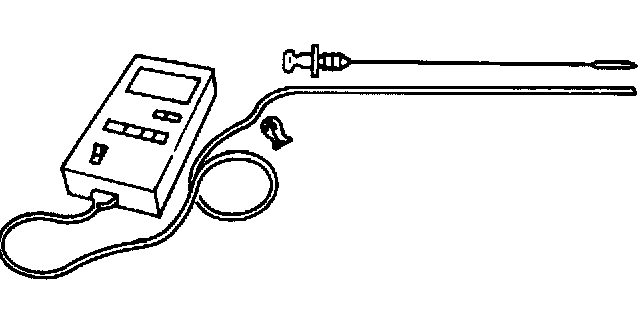

3. Insert the thermistor probe into the filler tube.
4. Start the engine.





1 of 3





2 of 3





3 of 3

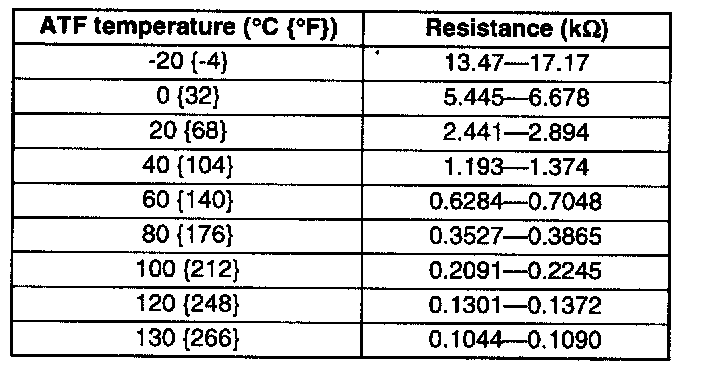

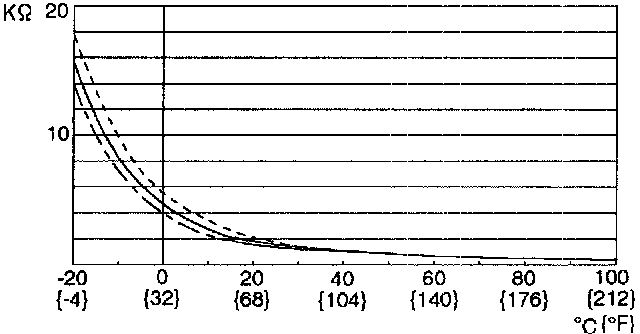

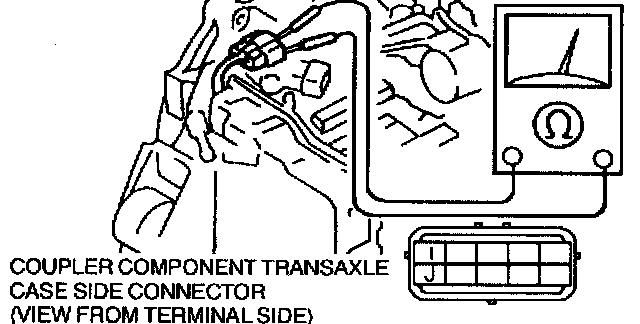

5. Measure resistance between the terminals of the TFT sensor.
^ If not as specified, inspect the TFT sensor.
6. Connect the coupler component.

Inspection of Individual Parts

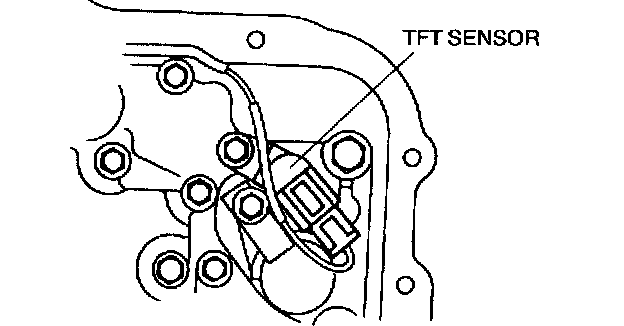

1. Remove the TFT sensor.

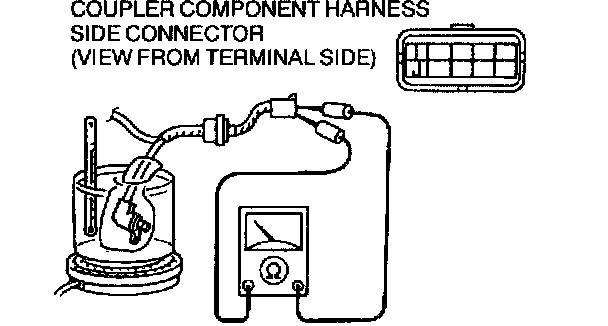

2. Place the TFT sensor in ATF with a thermometer as shown and heat the ATF gradually. Do not allow the test pieces to touch the bottom.





1 of 3





2 of 3





3 of 3

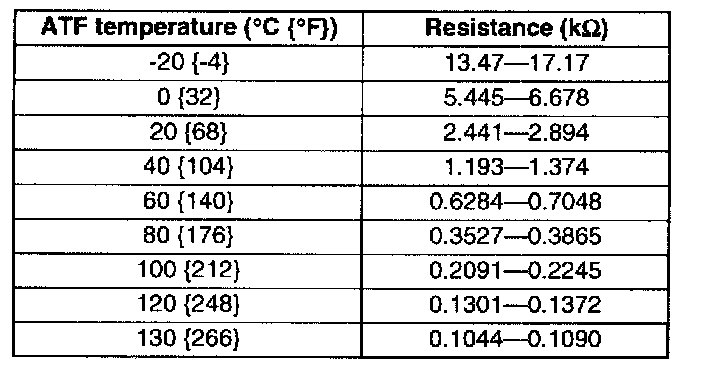

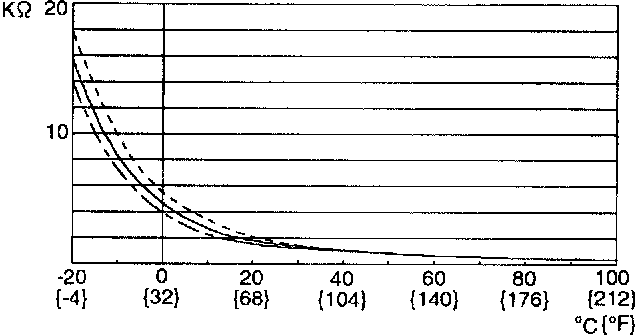

3. Measure resistance between the terminals of the TFT sensor.
^ If not as specified, replace the TFT sensor.
^ If it is normal, replace the harness.
4. Install the TFT sensor.
