Power Window Main Switch
1.
Remove the power window main switch.
2.
When inspecting the passenger's side and the rear, verify that the power-cut switch is at UNLOCK.
Driver's Side:

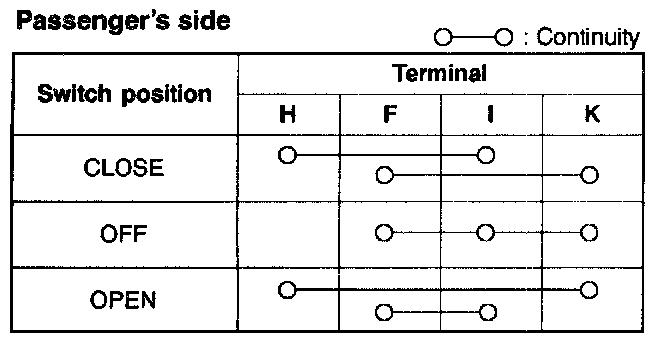

Passenger's Side:
Rear Right:

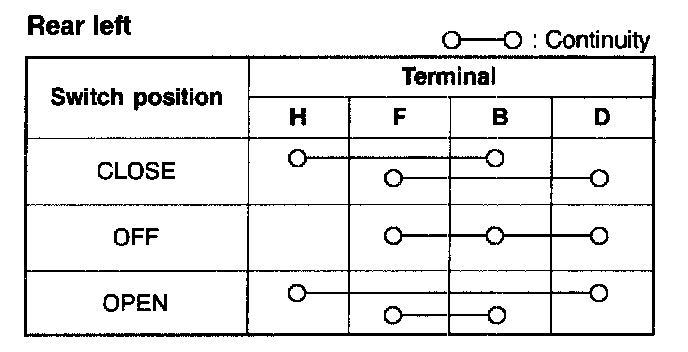

Rear Left:

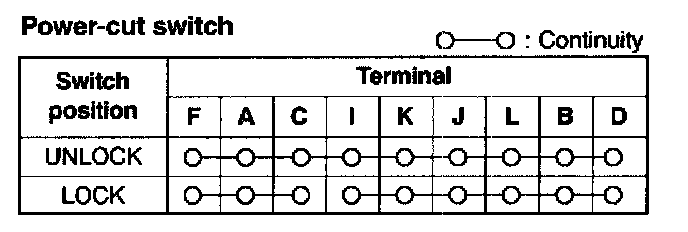

Power-cut Switch:
3.
Inspect for continuity between the power window main switch terminals using an ohmmeter.
-
If not as specified, replace the power window main switch.
