Wiper Relay: Testing and Inspection

INTERMITTENT REAR WIPER RELAY INSPECTION

1. Measure the voltage at the intermittent rear wiper relay terminals as indicated below.
2. Disconnect the intermittent rear wiper relay connector before inspecting for continuity at the terminal H.
- If not as specified, inspect the parts listed under "Action".
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the intermittent rear wiper relay.

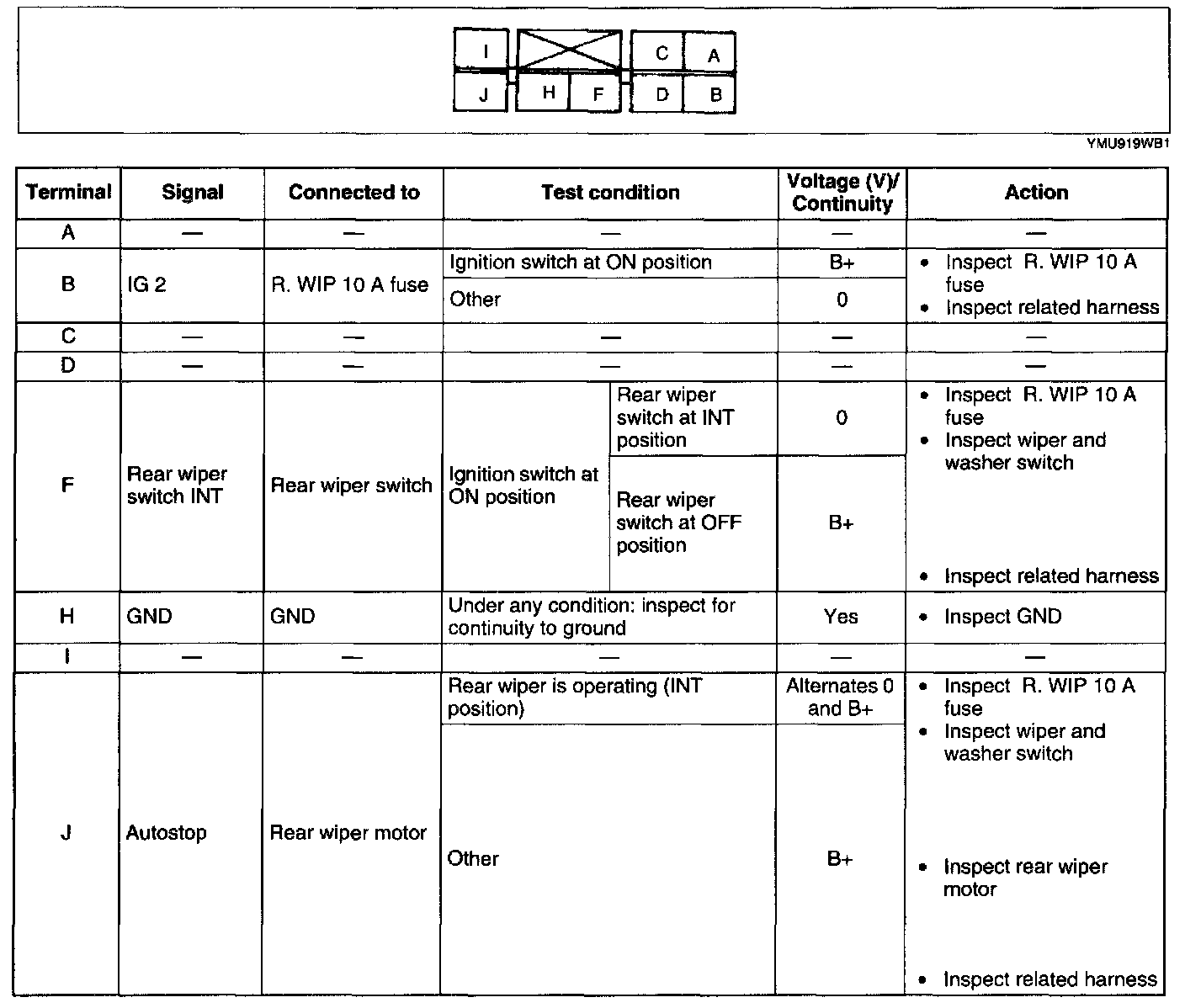

Terminal Voltage Table:

Terminal Voltage Table (Reference)
