Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the radiator grille.
3. Remove the front combination light.
4. Disconnect the front fog light connector.

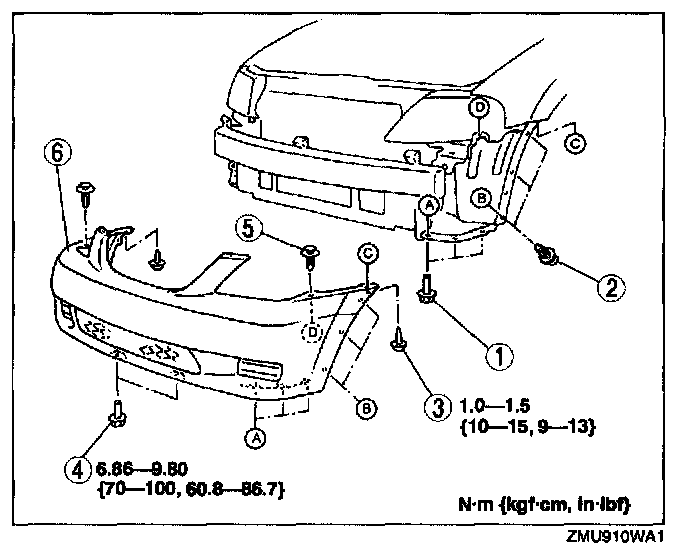

5. Remove in the order indicated below.
1. Bolt A
2. Fastener A
3. Screw
4. Bolt B
5. Fastener B
6. Front bumper

6. Install in the reverse order of removal.
