Connector Locations

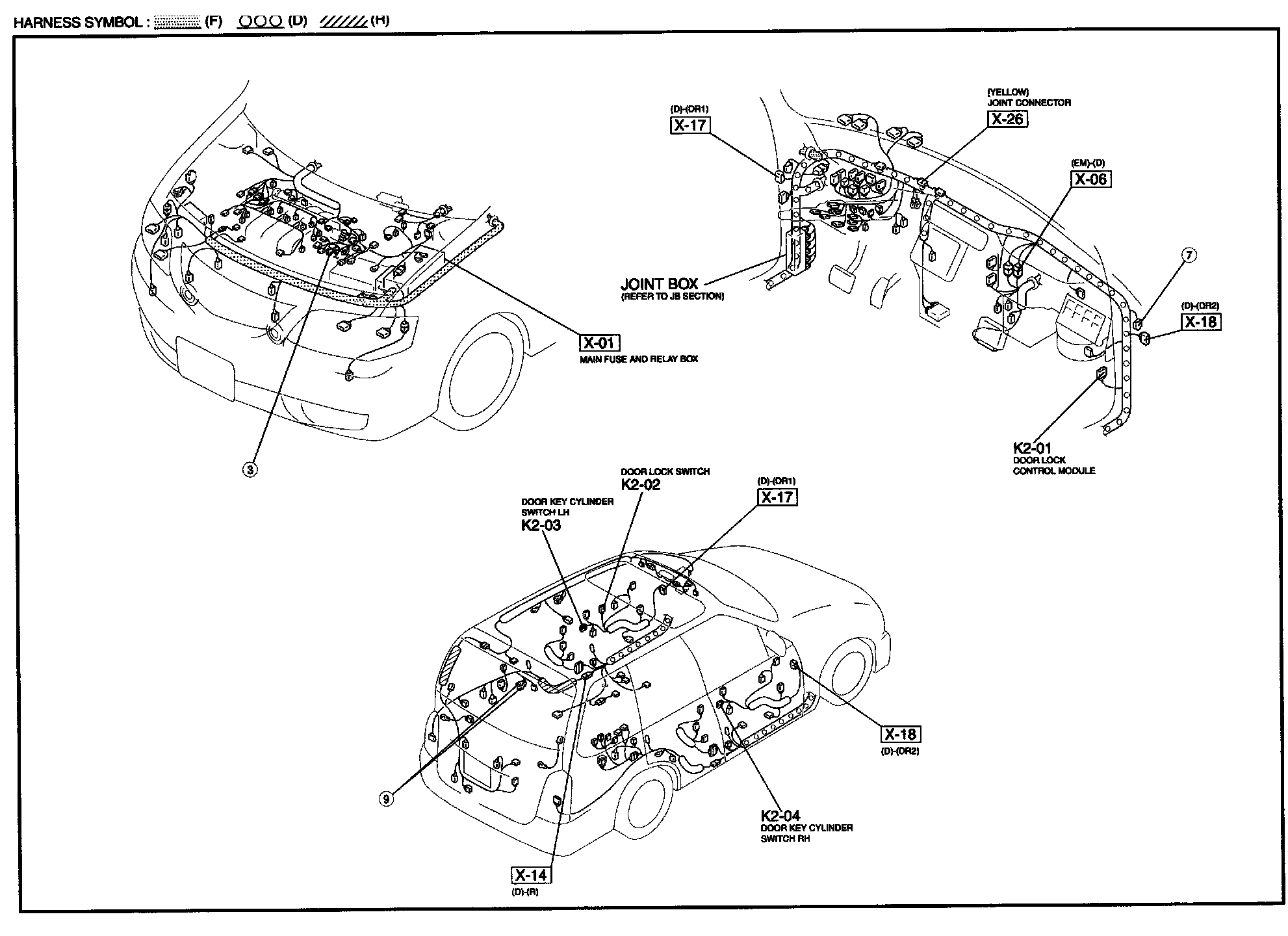

K-2a - Power Door Lock System Harness / Connector Symbols:

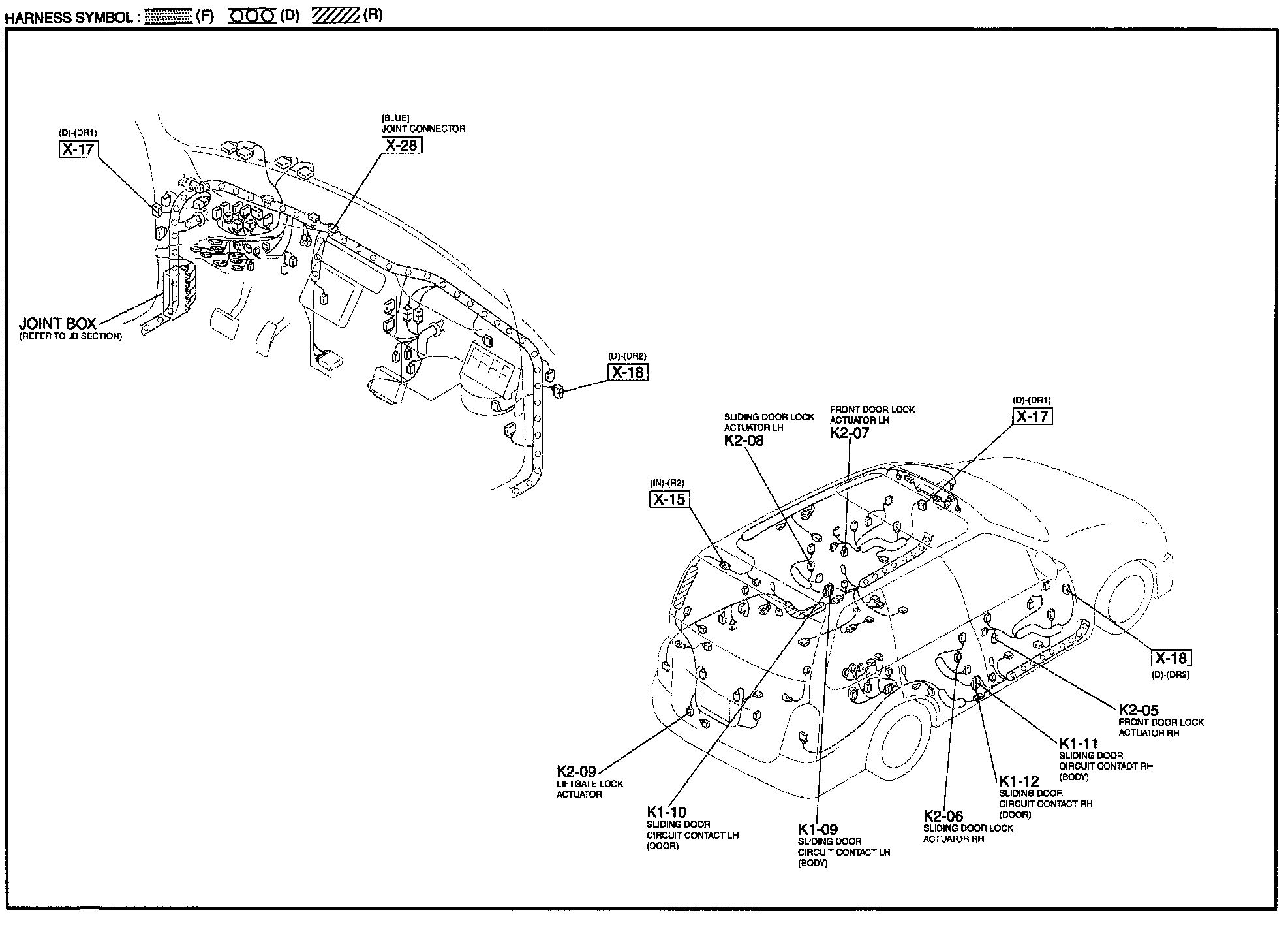

K-2b - Power Door Lock System Harness / Connector Symbols:
