Blower Motor Resistor: Testing and Inspection

FRONT BLOWER RESISTOR

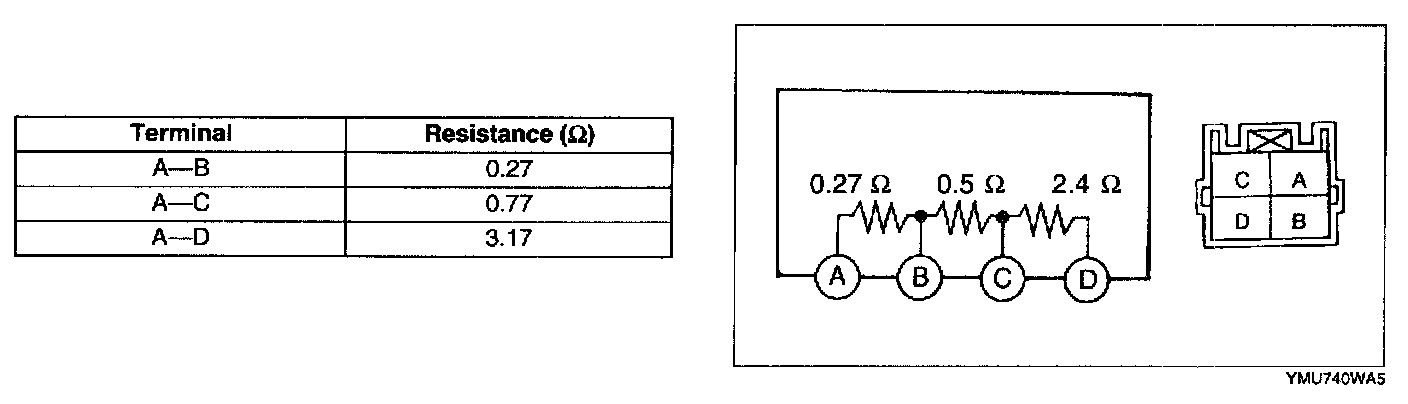

1. Verify that the resistance between the terminals of the front resistor is as shown in the table.
- If not as specified, replace the front resistor.
