Disassembly and Assembly
1.
Remove the rear main fan switch.
2.

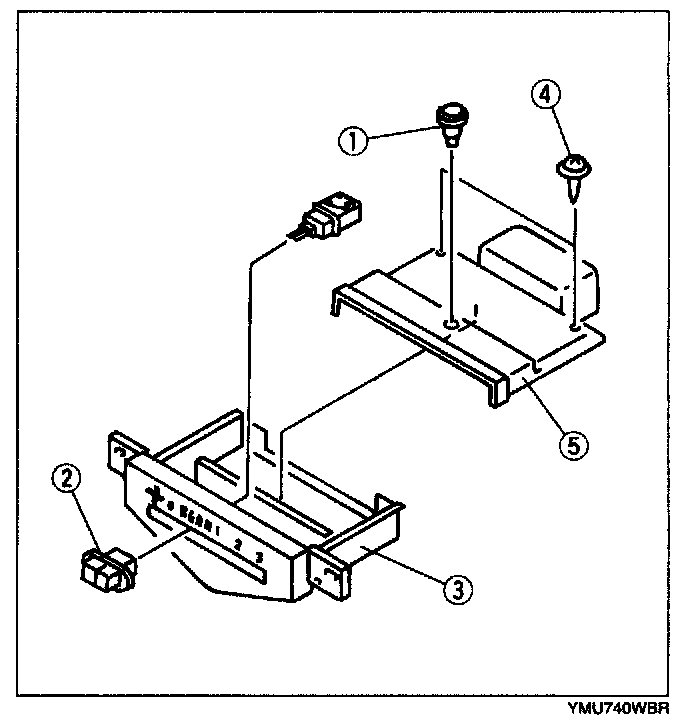

Disassembly in the order indicated below.
1.
bulb
2.
knob
3.
Body
4.
Screw
5.
Cover
3.
Assemble in the reverse order of disassembly.
