Rear Main Fan Switch

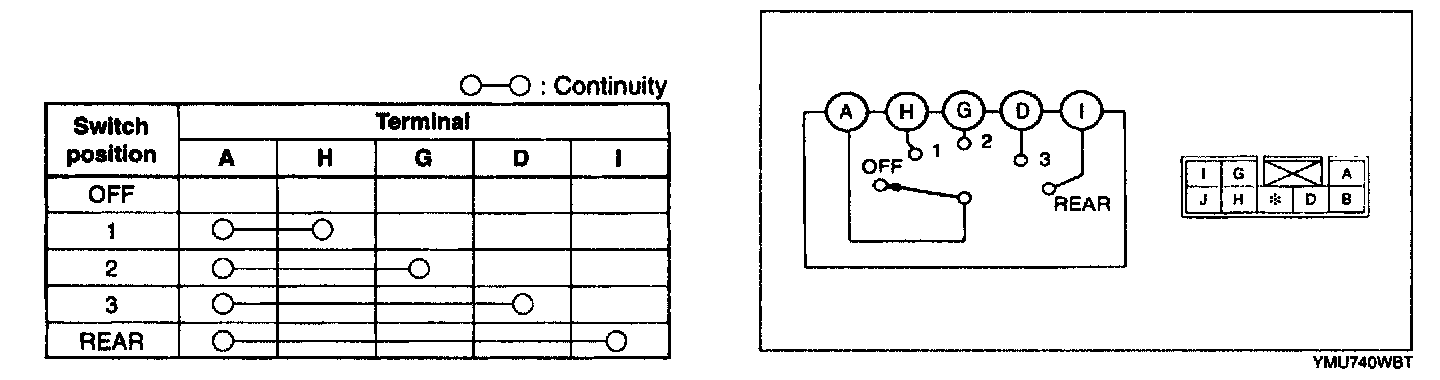

1. Inspect for continuity between the rear main fan switch terminals using an ohmmeter.
- If not as specified, replace the rear main fan switch.
