Front Blower Motor

1. Disconnect the front blower motor connector.

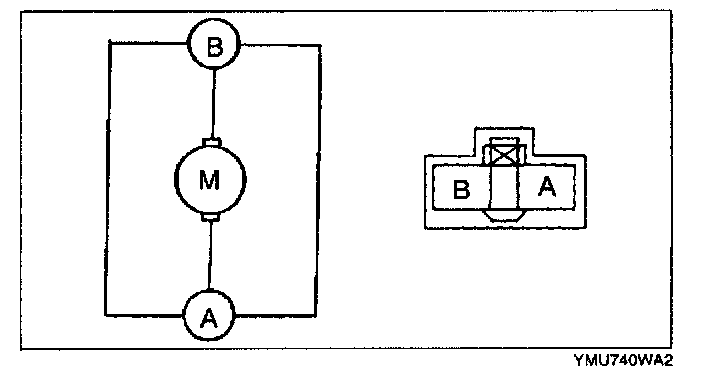

2. Connect battery positive voltage to terminal B and ground to terminal A of the front blower motor and verify its that thee motor operates.
- If not as specified, replace the front blower motor.
