Evaporator Temperature Sensor / Switch: Service and Repair

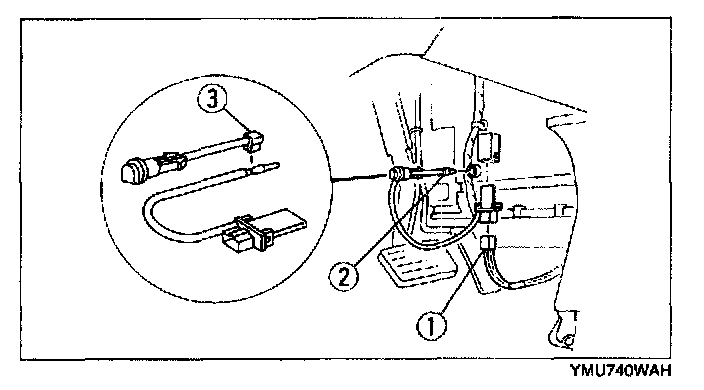

THERMOSENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Remove in the order indicated below.
1. Connector
2. Thermosensor
3. Clip

3. Install in the reverse order of removal.
