Fog/Driving Lamp Switch: Service and Repair

FRONT FOG LIGHT SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the driver-side side panel.

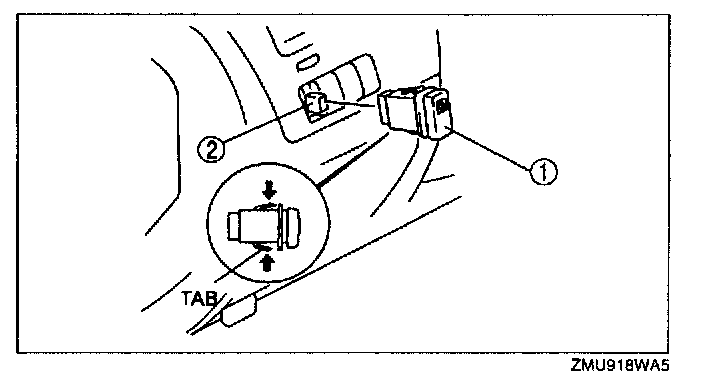

3. Remove in the order indicated below.
1. Front fog light switch
2. Connector

4. Install in the reverse order of removal.

Front Fog Light Switch Removal Note
1. Insert your hand into the hole for the driver-side side panel,
