Map Light: Service and Repair

MAP LIGHT REMOVAL/INSTALLATION

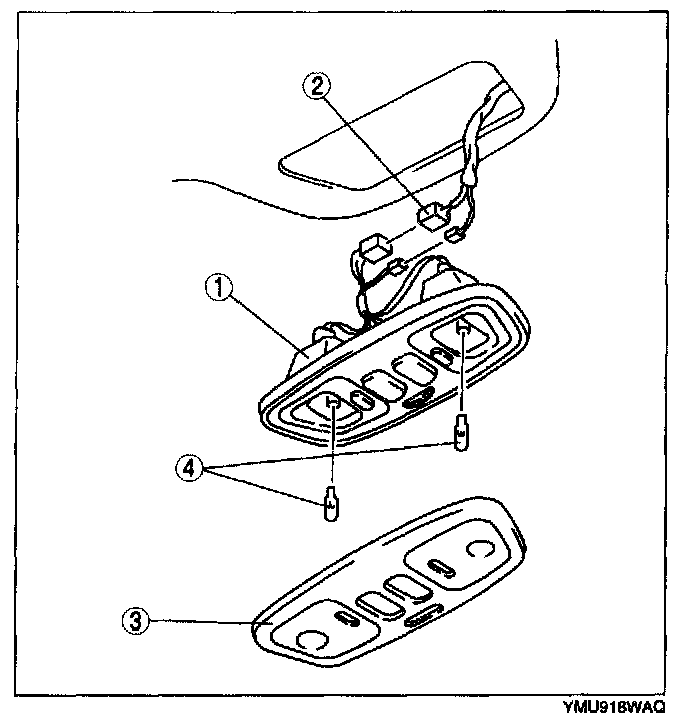

With Sliding Sunroof
1. Disconnect the negative battery cable.




2. Remove in the order indicated below.
1. Map light
2. Connector
3. Lens
4. Map light bulb

3. Install in the reverse order of removal.




Lens removal note

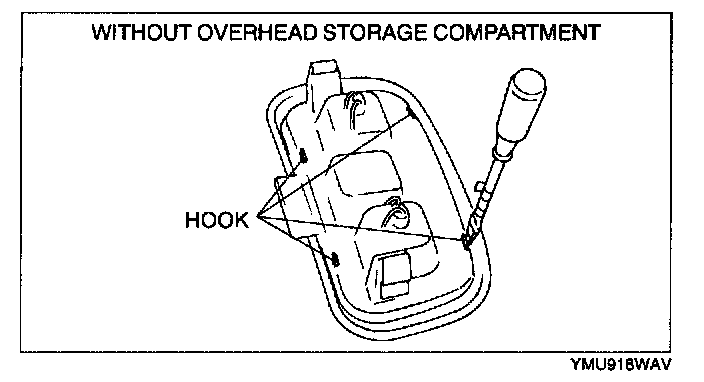

1. Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.

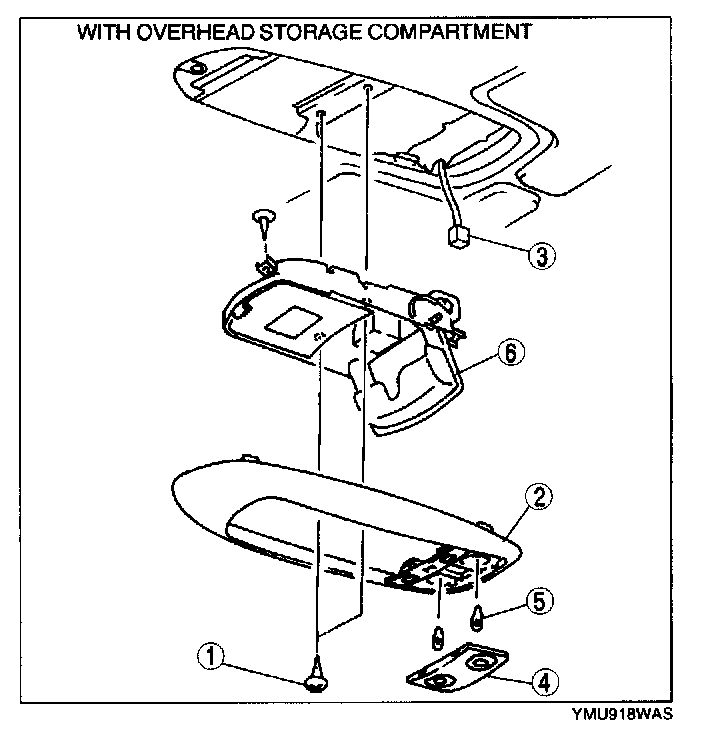

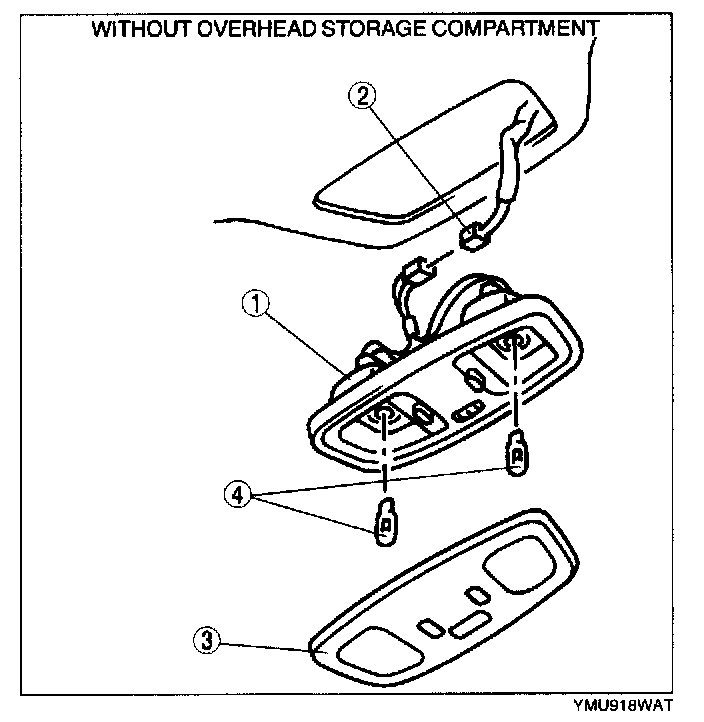

Without Sliding Sunroof
1. Disconnect the negative battery cable.
2. Remove in the order indicated below.




1. Screw
2. Overhead console
3. Connector
4. Lens
5. Map light bulb
6. Holder




1. Map light
2. Connector
3. Lens
4. Map light bulb

3. Install in the reverse order of removal.







Lens removal note

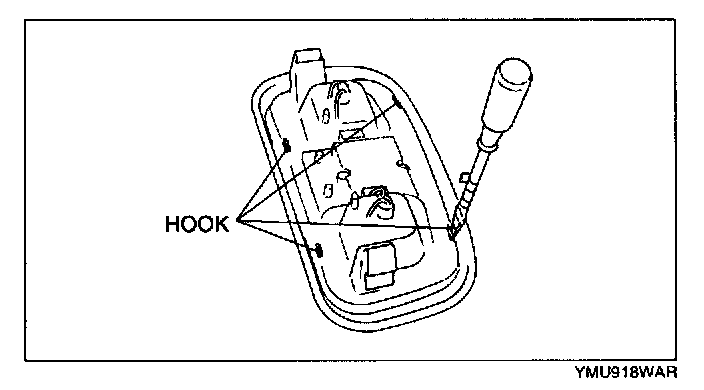

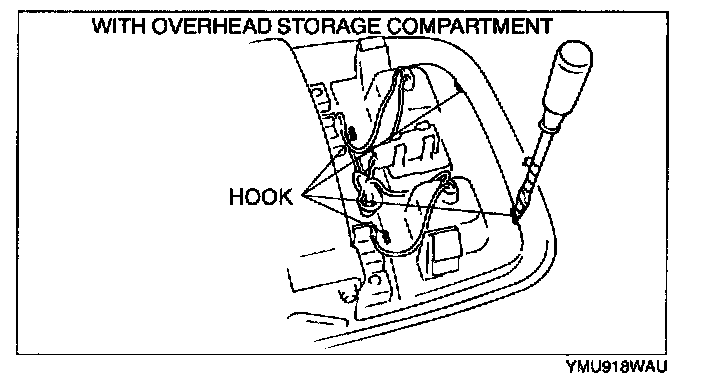

1. Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.
