C - Instrument Cluster
C - Instrument Cluster

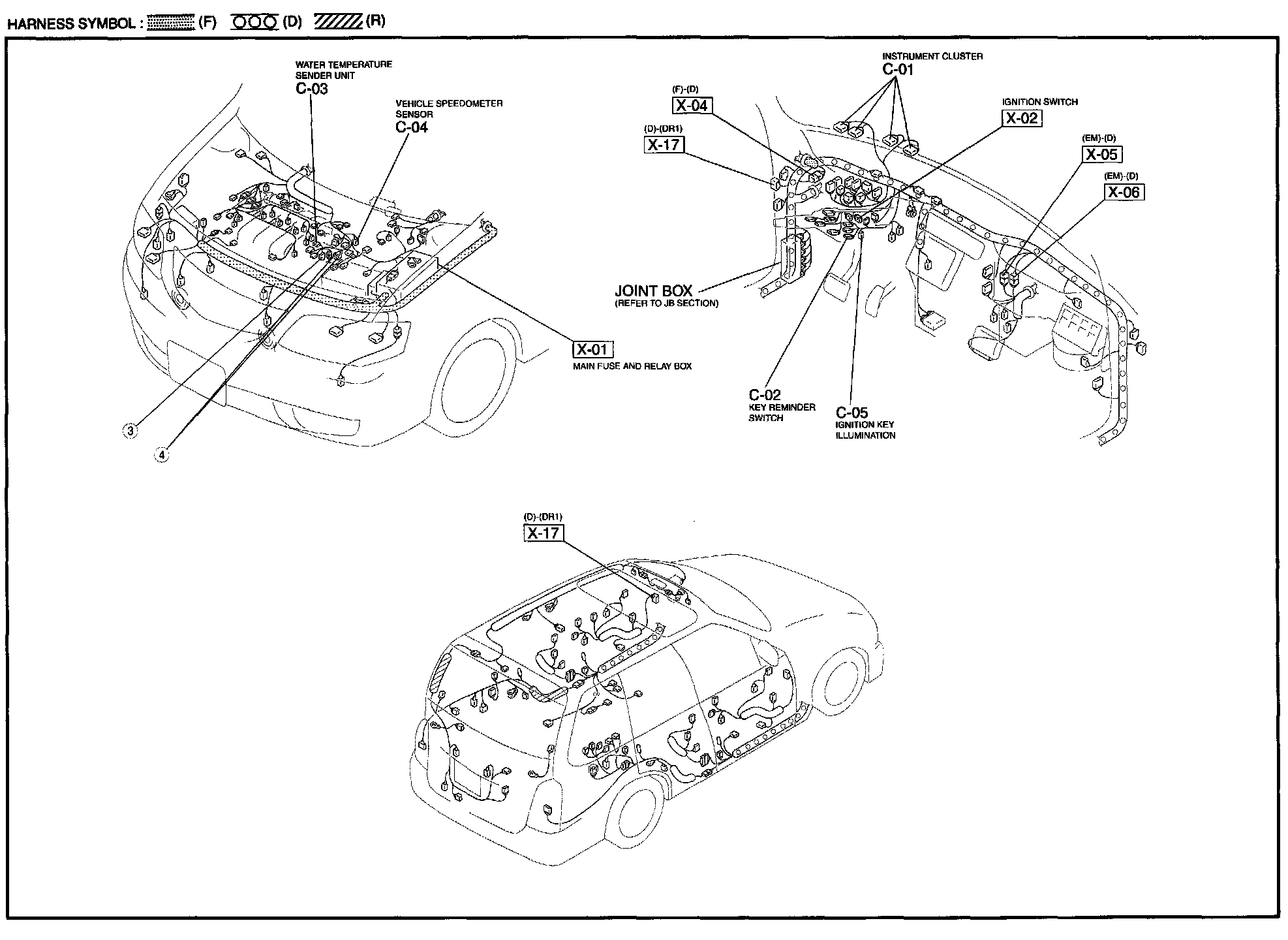

C-a - Instrument Cluster Haress / Connector Symbols:

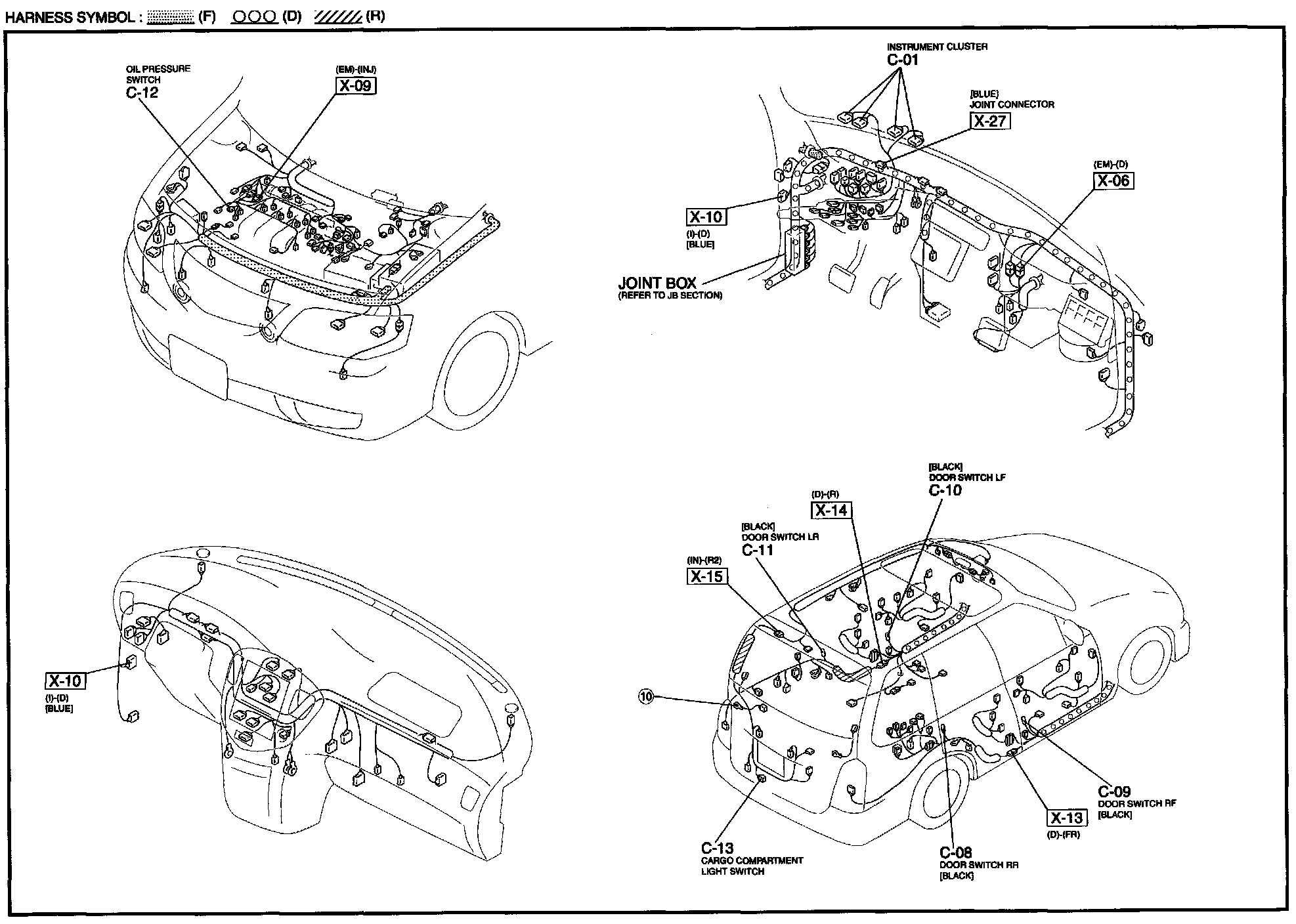

C-b - Instrument Cluster Harness / Connector Symbols:

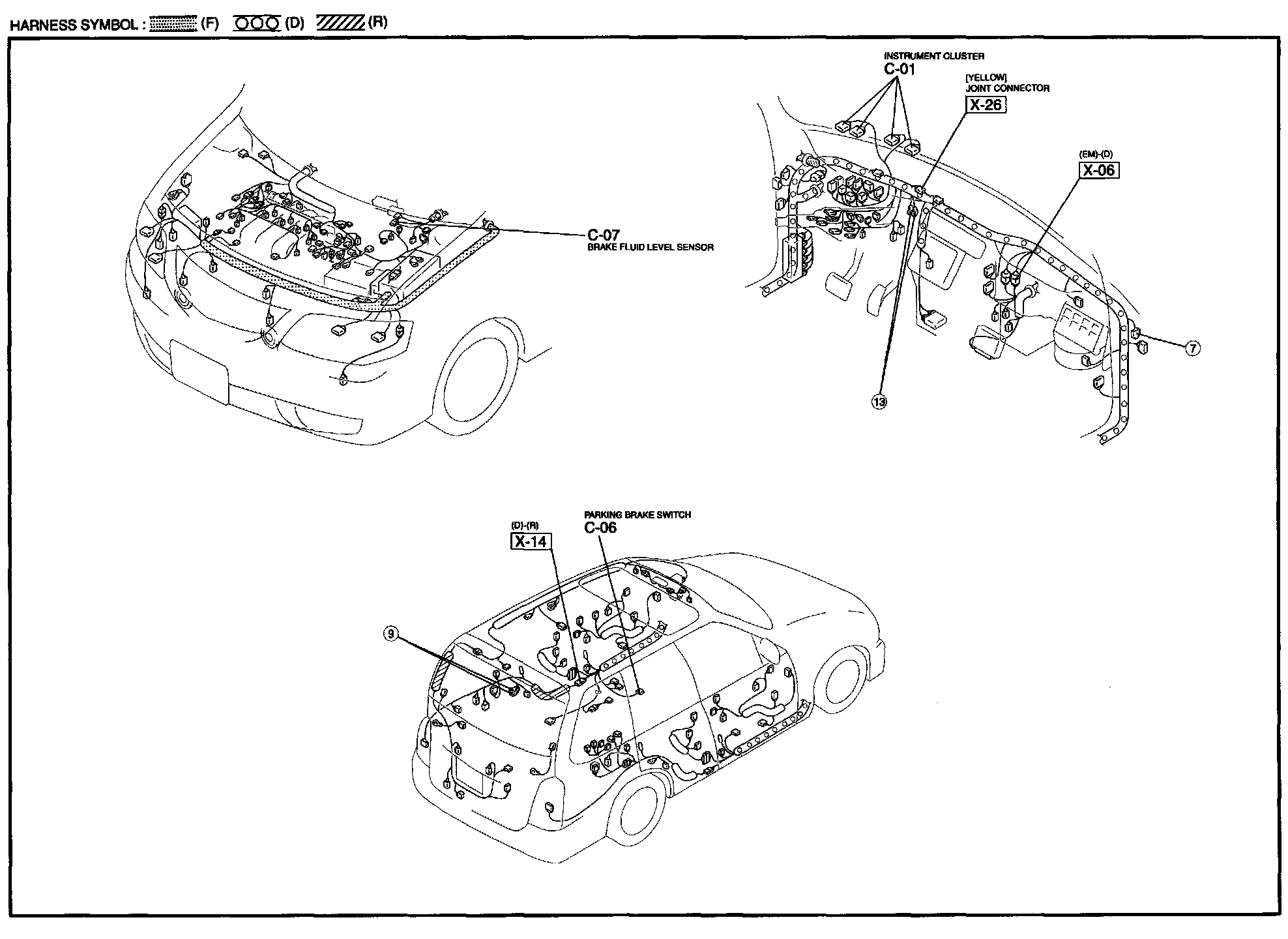

C-c - Instrument Cluster Harness / Connector Symbols:

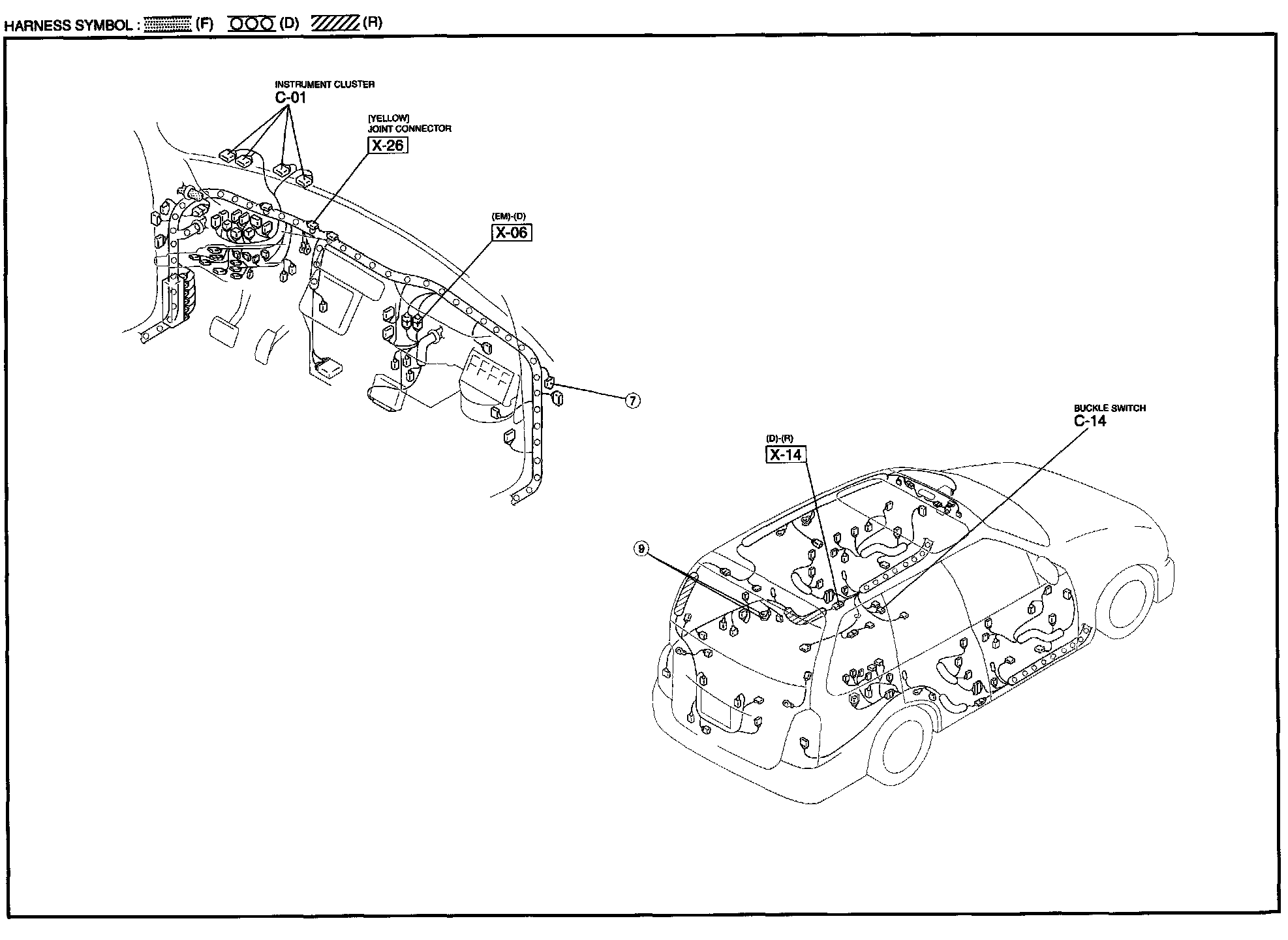

C-d - Instrument Cluster Harness / Connector Symbols:
