Power Steering Pressure Switch: Testing and Inspection

NOTE: Perform the following test only when directed.

Continuity Inspection

1. Inspect the following if the power steering is inoperative (See POWER STEERING FLUID INSPECTION.):
- Power steering fluid level
- Power steering fluid leakage
- Power steering fluid pressure

2. Disconnect the PSP switch connector.
3. Start the engine.

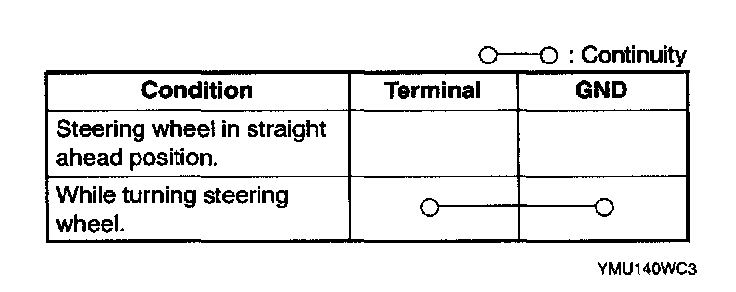

4. Inspect for continuity between the PSP switch terminal and GND using an ohmmeter.
- If not as specified, replace the PSP switch.
- If the PSP switch is okay, but PID value or PCM terminal 31 voltage are out of specification, perform the "Circuit Open/Short Inspection".

Circuit Open/Short Inspection

1. Disconnect the PCM connector.

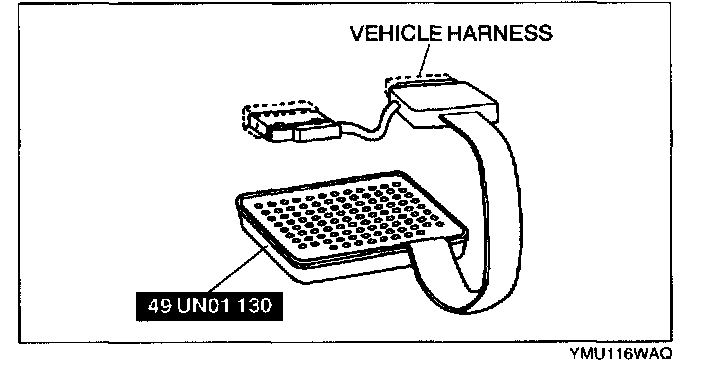

2. Connect the SST (104 Pin Breakout Box) with the PCM disconnected.
3. Tighten the connector attaching bolt.

Tightening torque
3.0 - 5.4 N.m {30 - 56 kgf.cm, 27 - 48 in.lbf}

4. Inspect the following harness for open or short (Continuity check).

Open circuit
- If there is no continuity, the circuit is open. Repair or replace the harness.
- PSP switch terminal and PCM terminal 31
