Vehicle Speedometer Sensor Inspection (Without ABS)

VEHICLE SPEEDOMETER SENSOR INSPECTION (WITHOUT ABS)
Inspection of Operation





1. Remove the vehicle speedometer sensor.





1 of 2





2 of 2

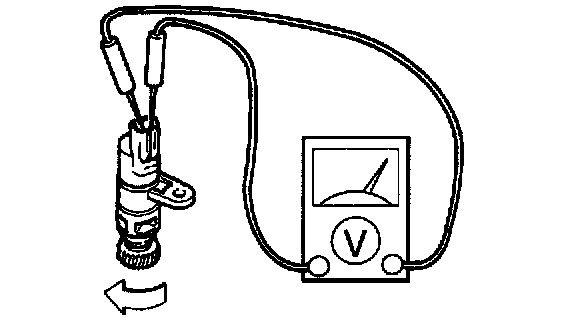

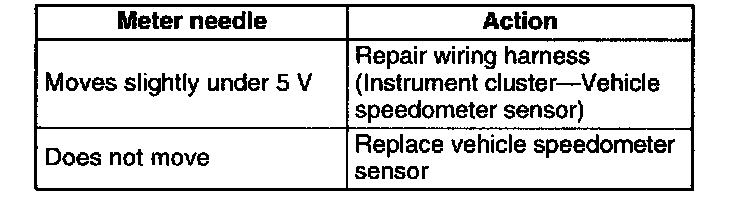

2. Measure the voltage between terminals of the vehicle speedometer sensor while rotating the driving gear.
3. Install the vehicle speedometer sensor.
