Evaporative Emissions System: Locations

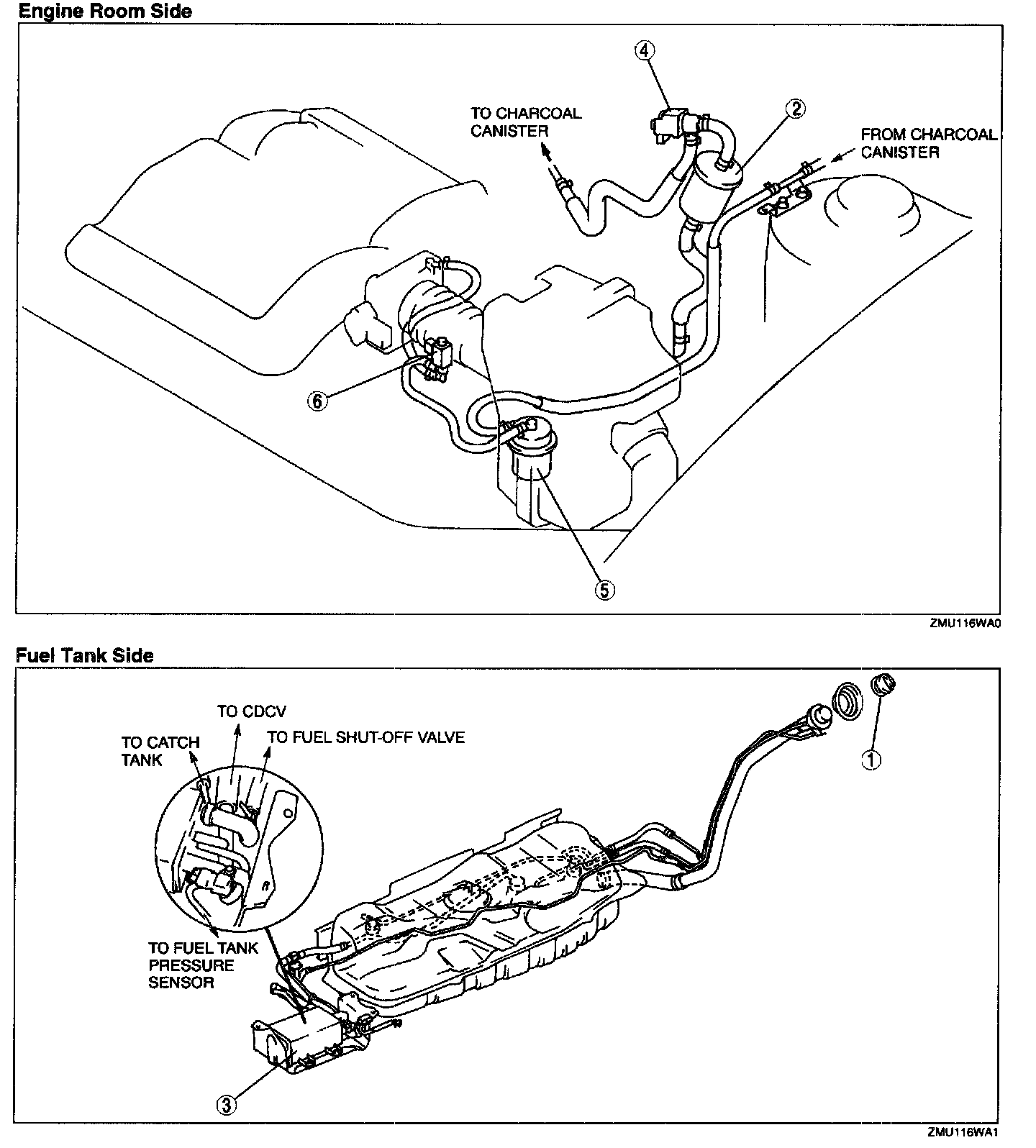

Evaporative Emission (EVAP) Control System Location Index:

1. Fuel-filler cap
2. Air filter
3. Charcoal canister
4. Canister drain cut valve (CDCV)
5. Catch tank
6. Purge solenoid valve
