Oscilloscope Patterns and Waveforms

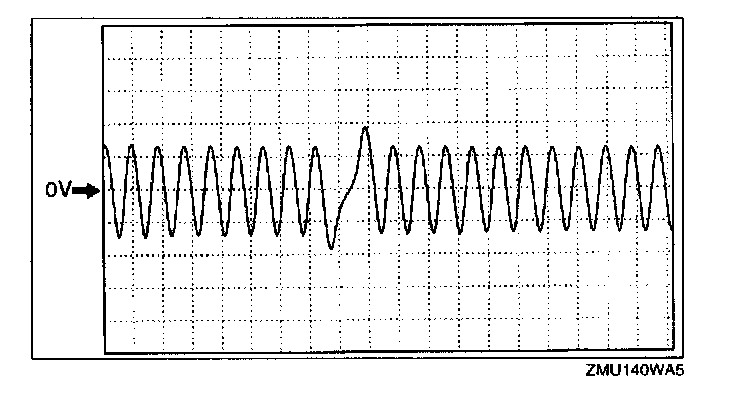

Manufacturer Specific PatternNE signal
- PCM terminal: 2 (+) <-> 22(-)
- Oscilloscope setting: 4 V/DIV (Y), 2.5 ms/DIV (X), AC range
- Vehicle condition: Idle after warm up
NE signal
- PCM terminal: 2 (+) <-> 22(-)
- Oscilloscope setting: 4 V/DIV (Y), 2.5 ms/DIV (X), AC range
- Vehicle condition: Idle after warm up
