Cruise Control Module

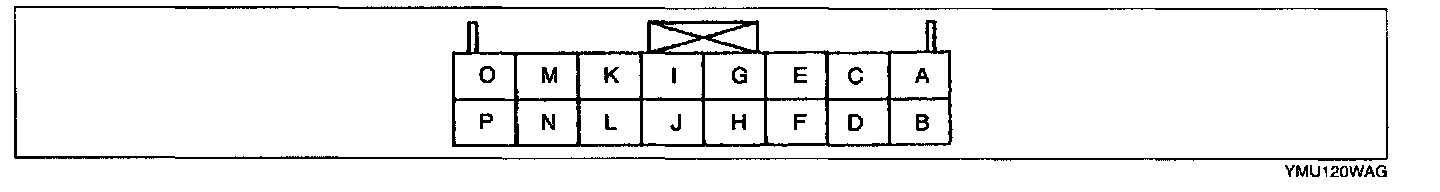

Terminal Pinout

Terminal Pinout:

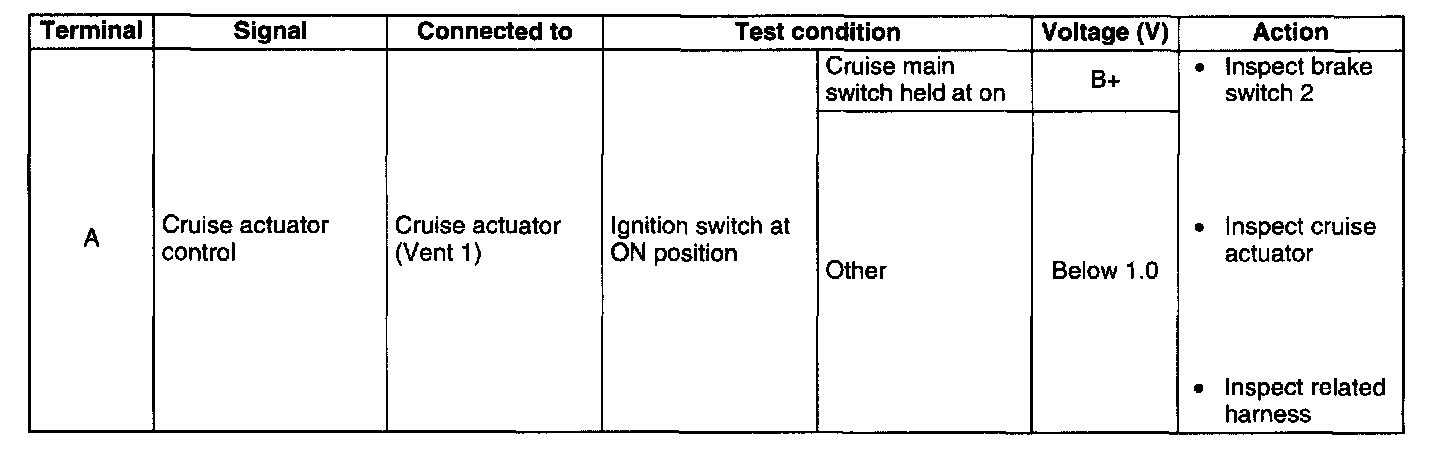

Terminal A

Terminal A:

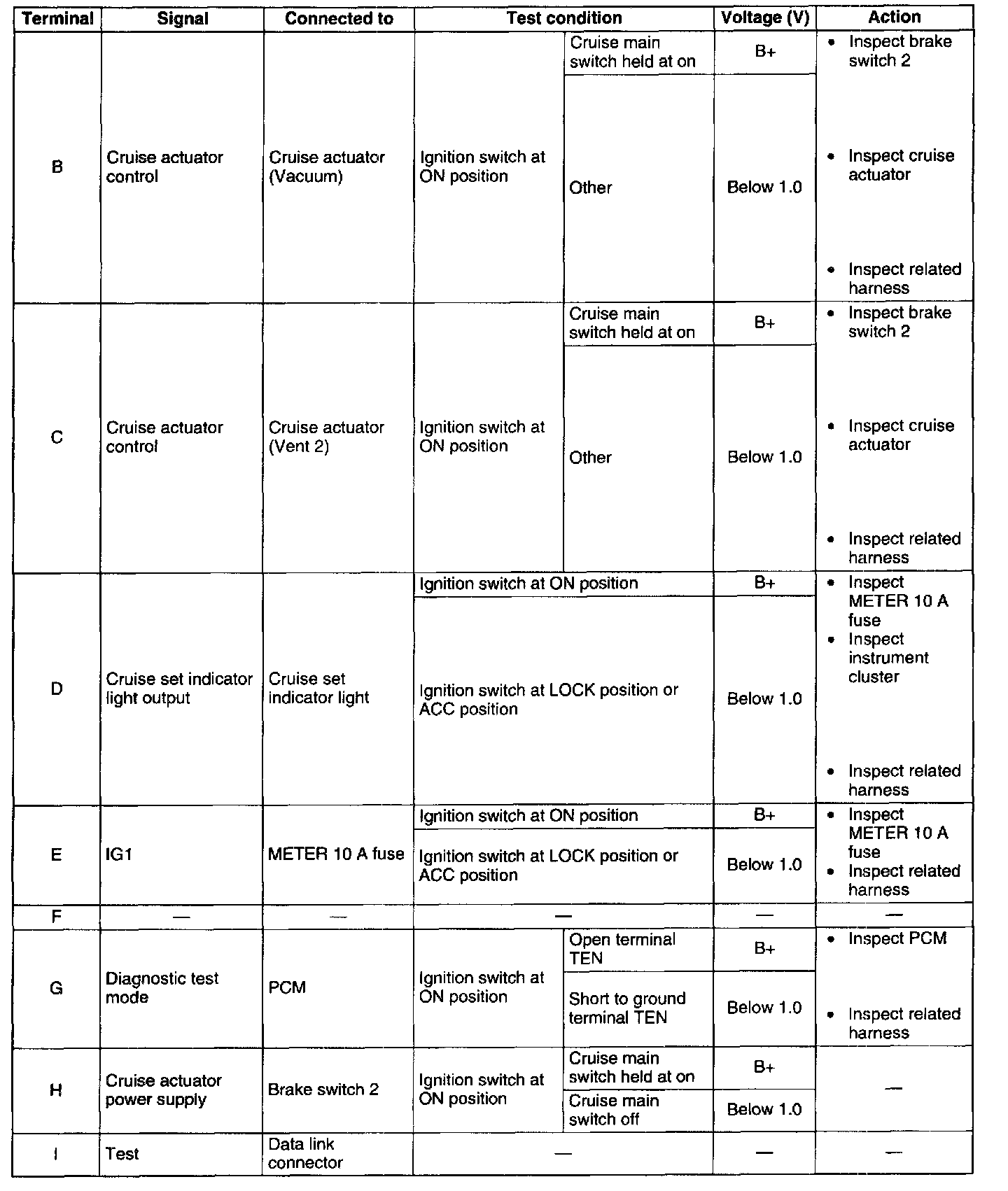

Terminal B - I

Terminal B - I:

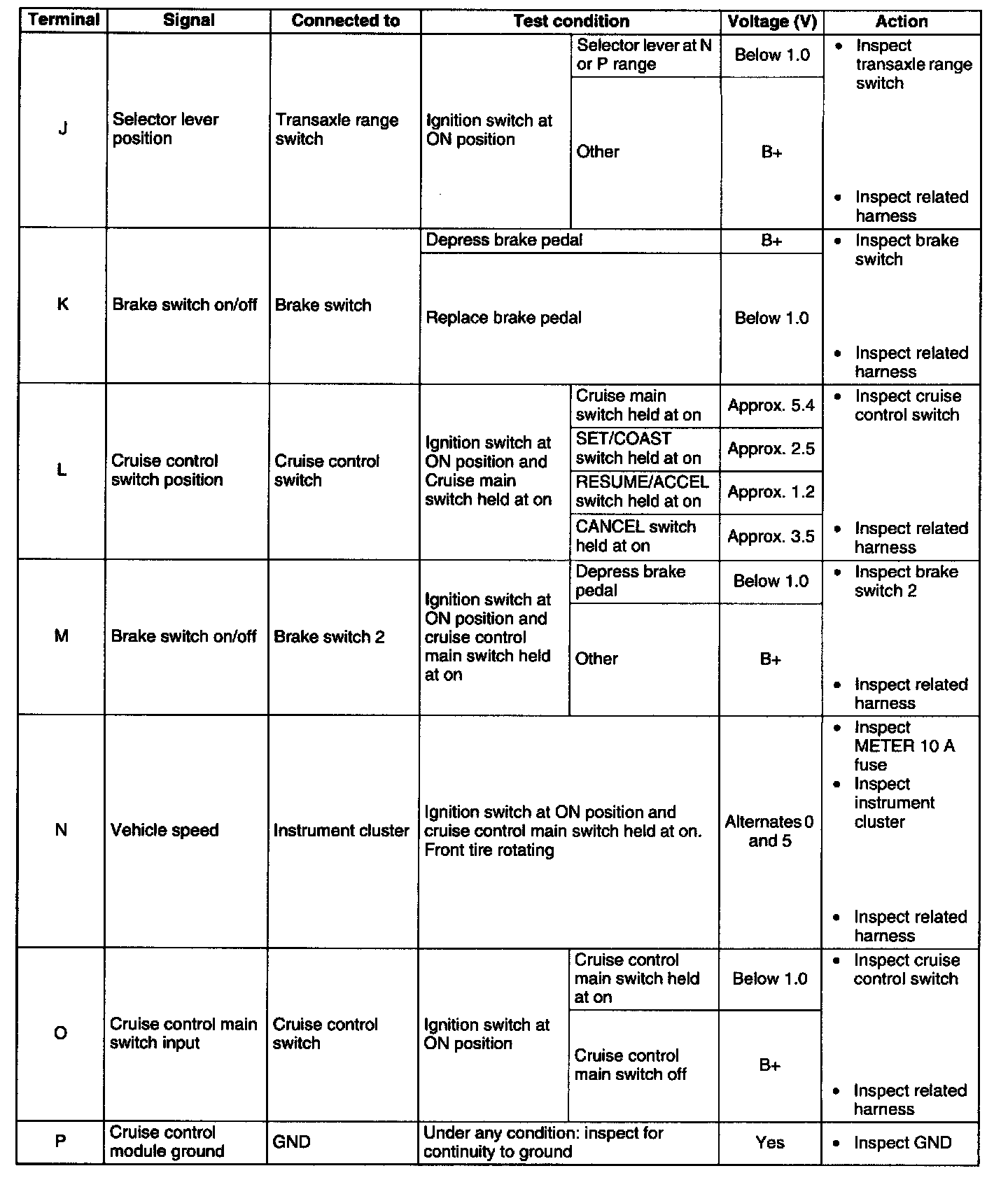

Terminal J - P

Terminal J - P:
