Front Washer Motor

REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.
3. Remove the washer tank.




4. Remove in the order indicated below.

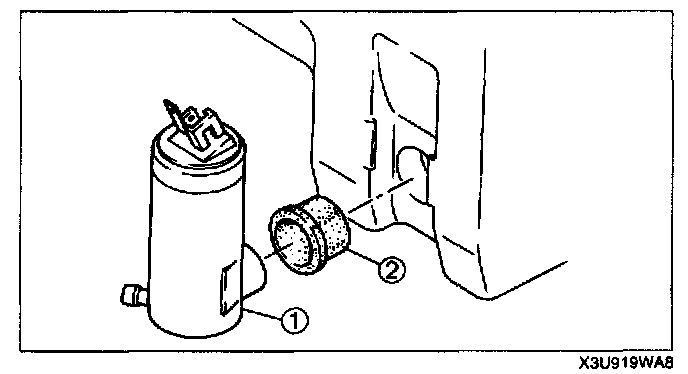

1. Windshield washer motor
2. Grommet

5. Install in the reverse order of removal.
