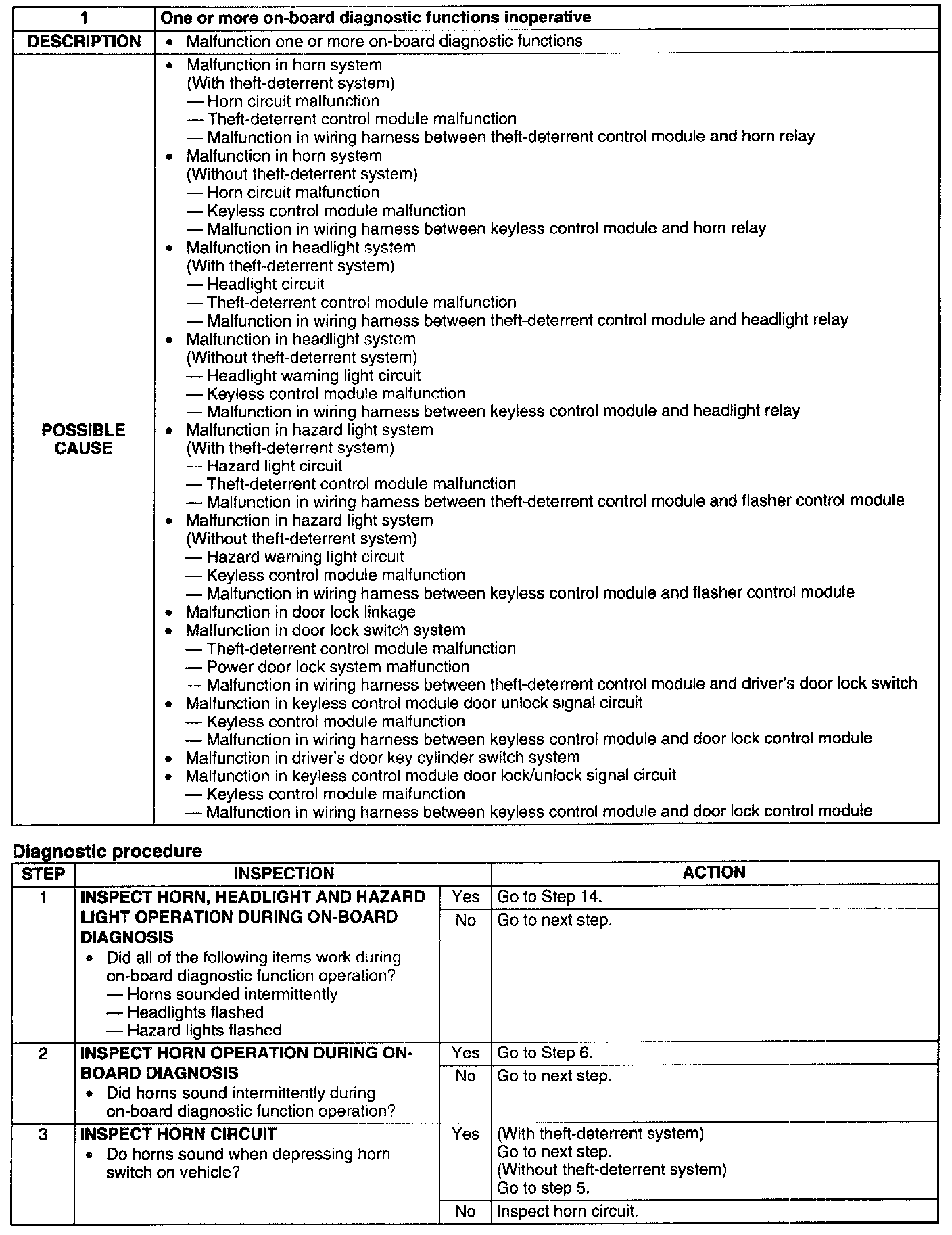

1 - One or More on-Board Diagnostic Functions Inoperative

Step 1 - 3:

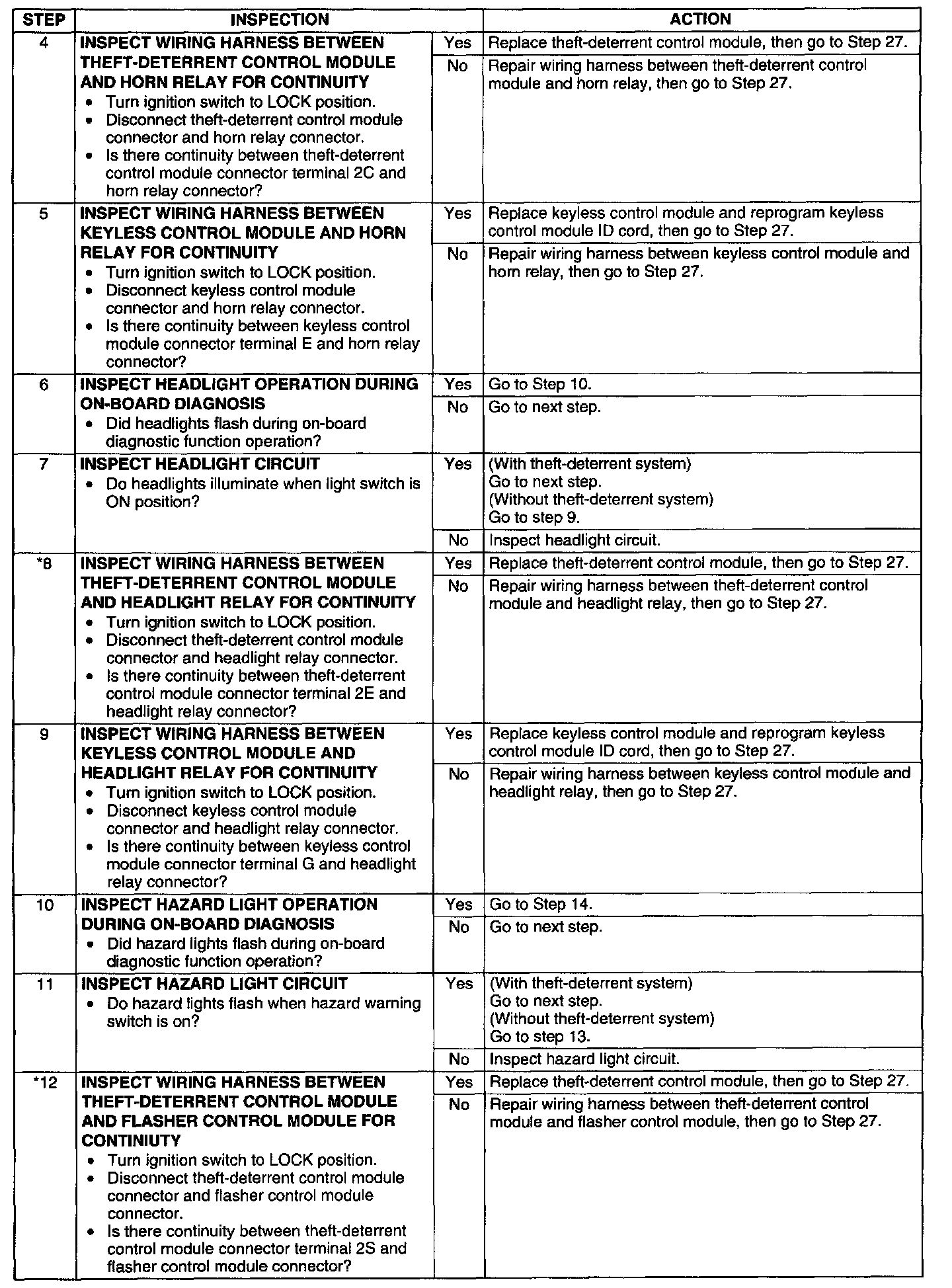

Step 4 - 12:

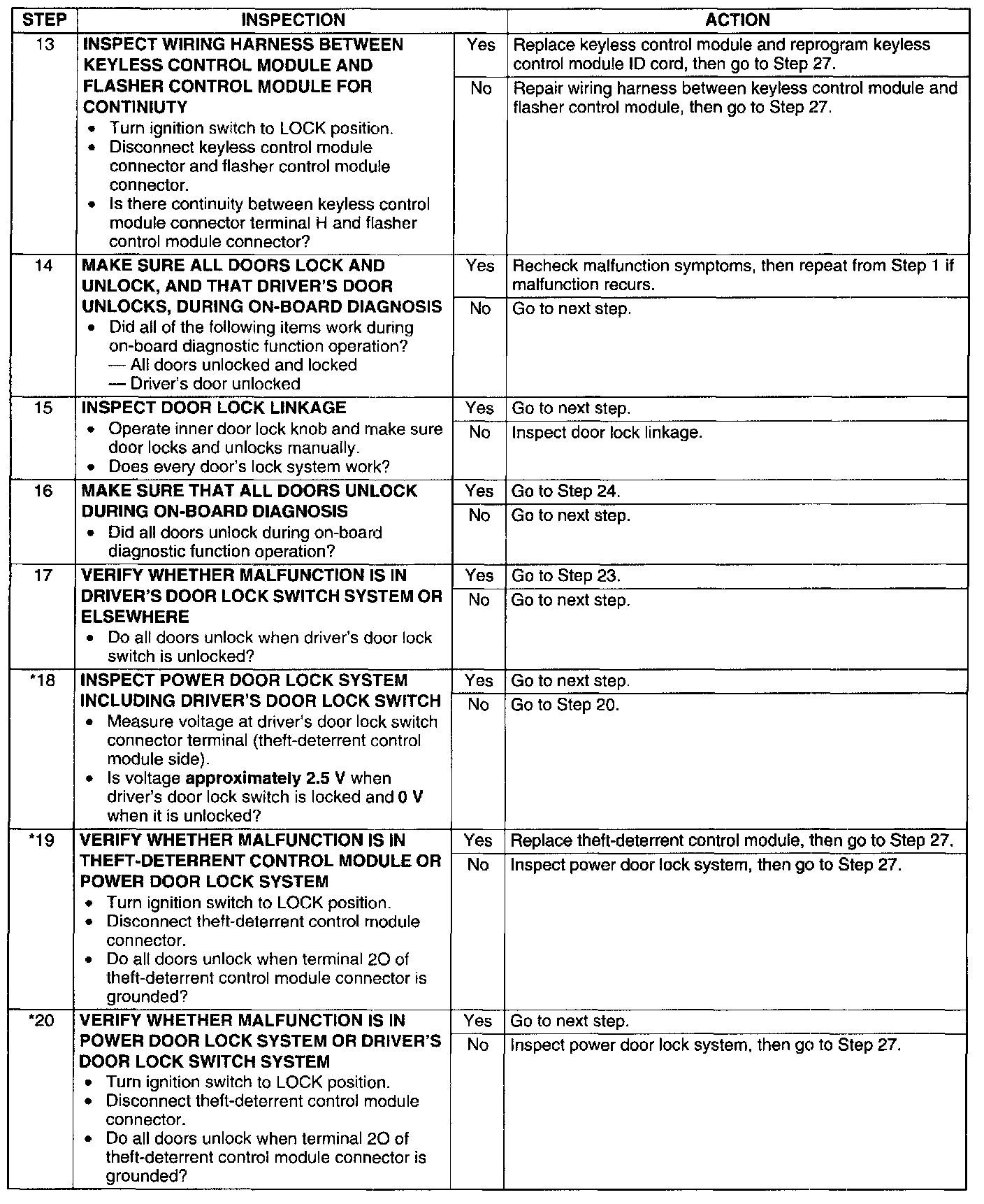

Step 13 - 20:

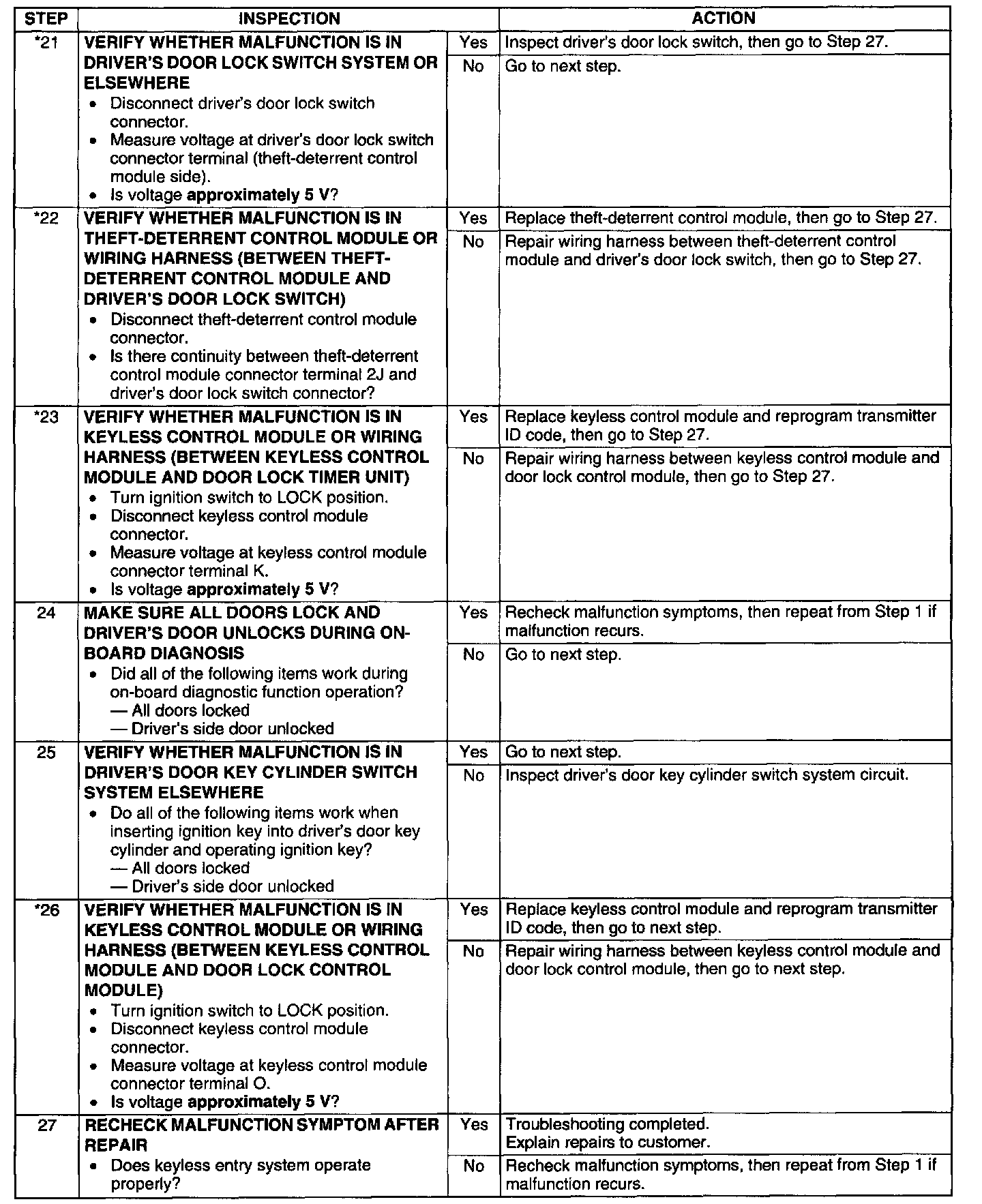

Step 21 - 27:

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
