Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2001
>>
MPV LX V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Bumper
>>
Front Bumper
>>
Service and Repair
>>
Disassembly/Assembly
Disassembly/Assembly

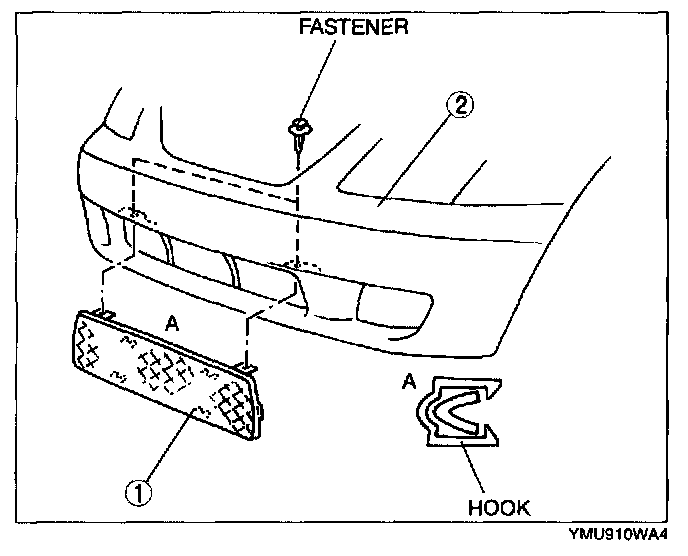

1.
Disassemble in the order indicated below.
1.
Front
bumper
mesh
2.
Front
bumper
fascia
2.
Assemble in the reverse order of disassembly.
