Cruise Control Module: Service and Repair

CRUISE CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the lower panel.

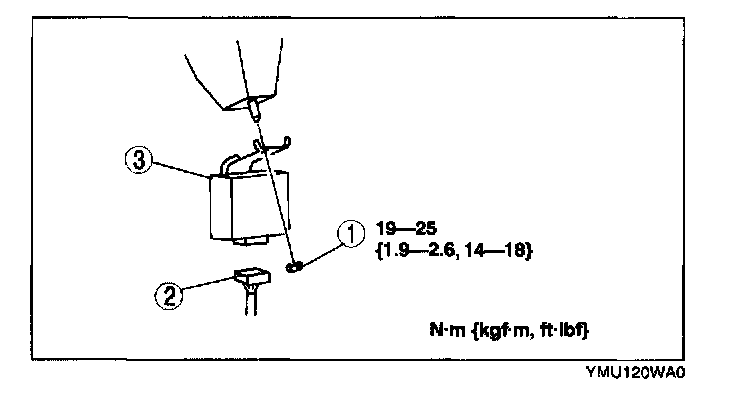

3. Remove in the order indicated below.
1. Nut
2. Connector
3. Cruise control module

4. Install in the reverse order of removal.
