Front Climate Control Unit

FRONT CLIMATE CONTROL UNIT INSPECTION

1. Slide out the front climate control unit with the connectors still connected.
2. Measure the voltage at each front climate control unit terminal and refer to the terminal voltage list.
3. Disconnect the front climate control unit connector before inspecting for continuity at terminal D.
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the front climate control unit.

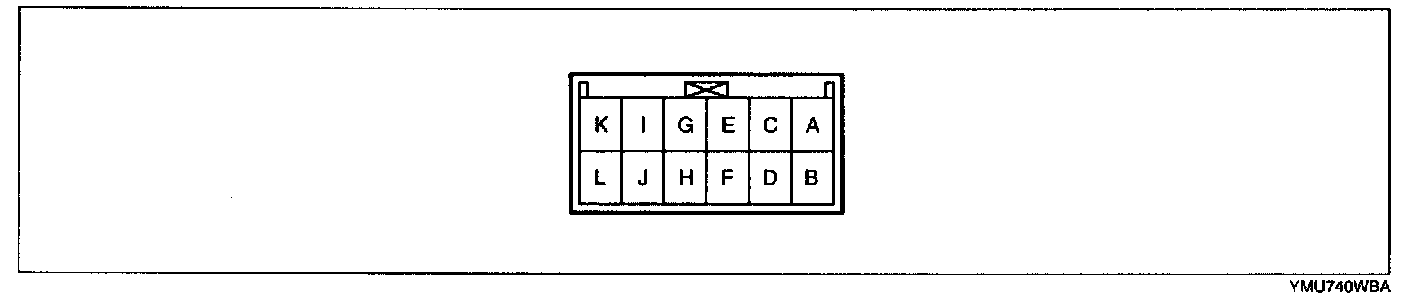

Terminal Pinouts:

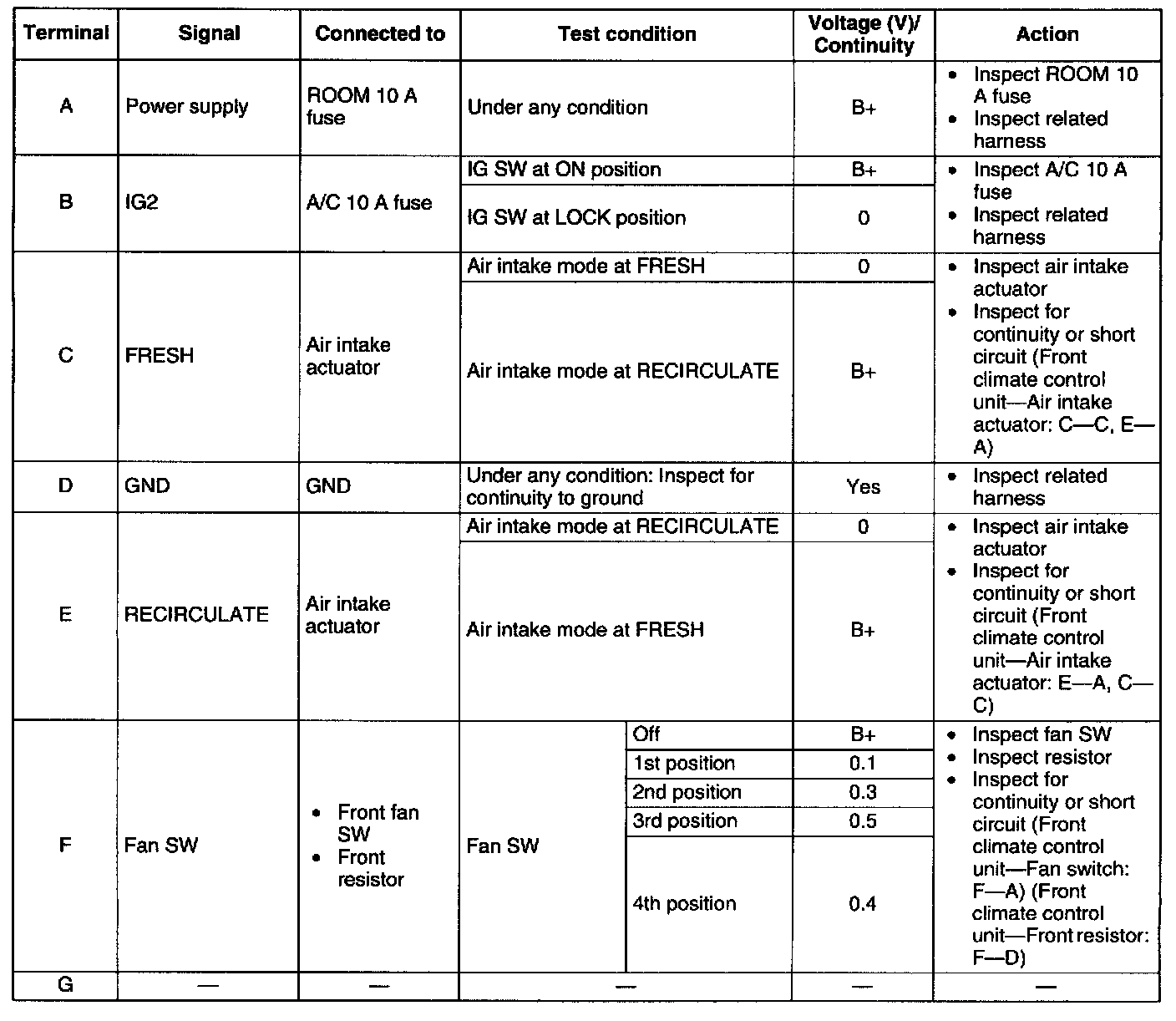

Terminal A - G:

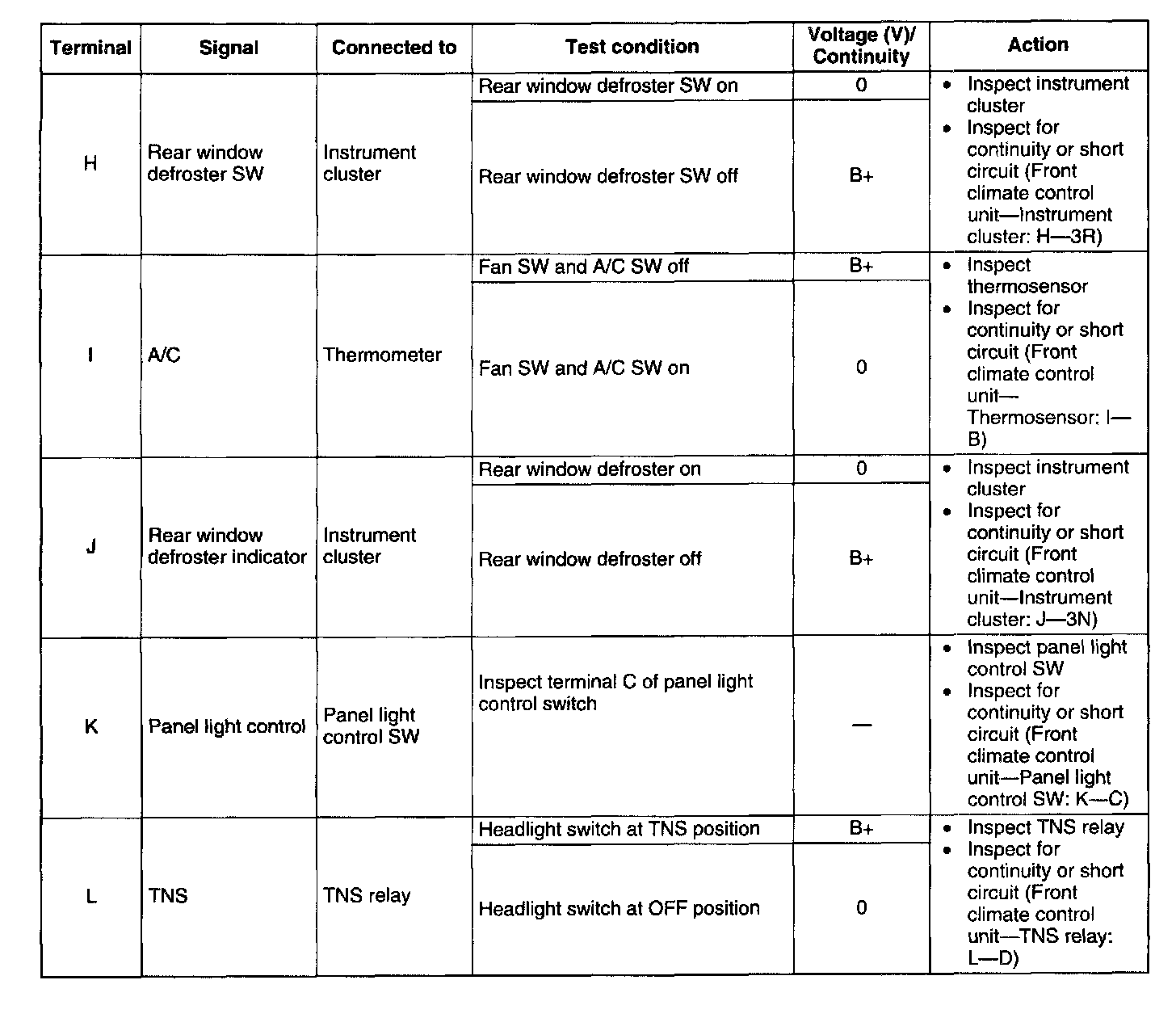

Terminal H - L:

Terminal Voltage Table (Reference)
