Rear Climate Control Unit

REAR CLIMATE CONTROL UNIT INSPECTION

With A/C and Heater
1. Slide out the rear climate control unit with the connectors still connected.
2. Turn the ignition switch to ON position.
3. Measure the voltage at each rear climate control unit terminal and refer to terminal voltage list.
- If not as specified, inspect the appropriate area.
- If the inspection area is okay, replace the rear climate control unit.

4. Disconnect the rear climate control unit connector before inspecting for continuity at terminals C, E and J.

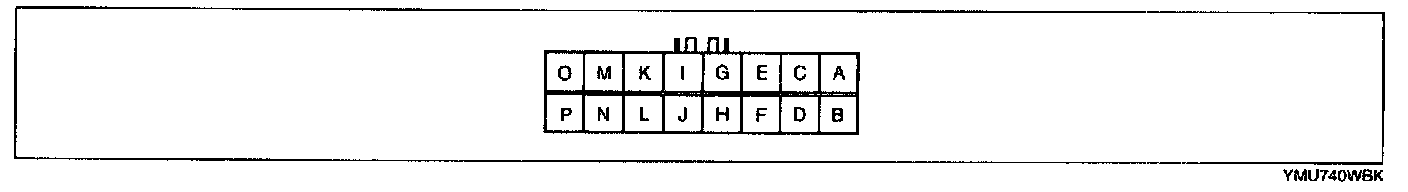

Terminal Pinouts:

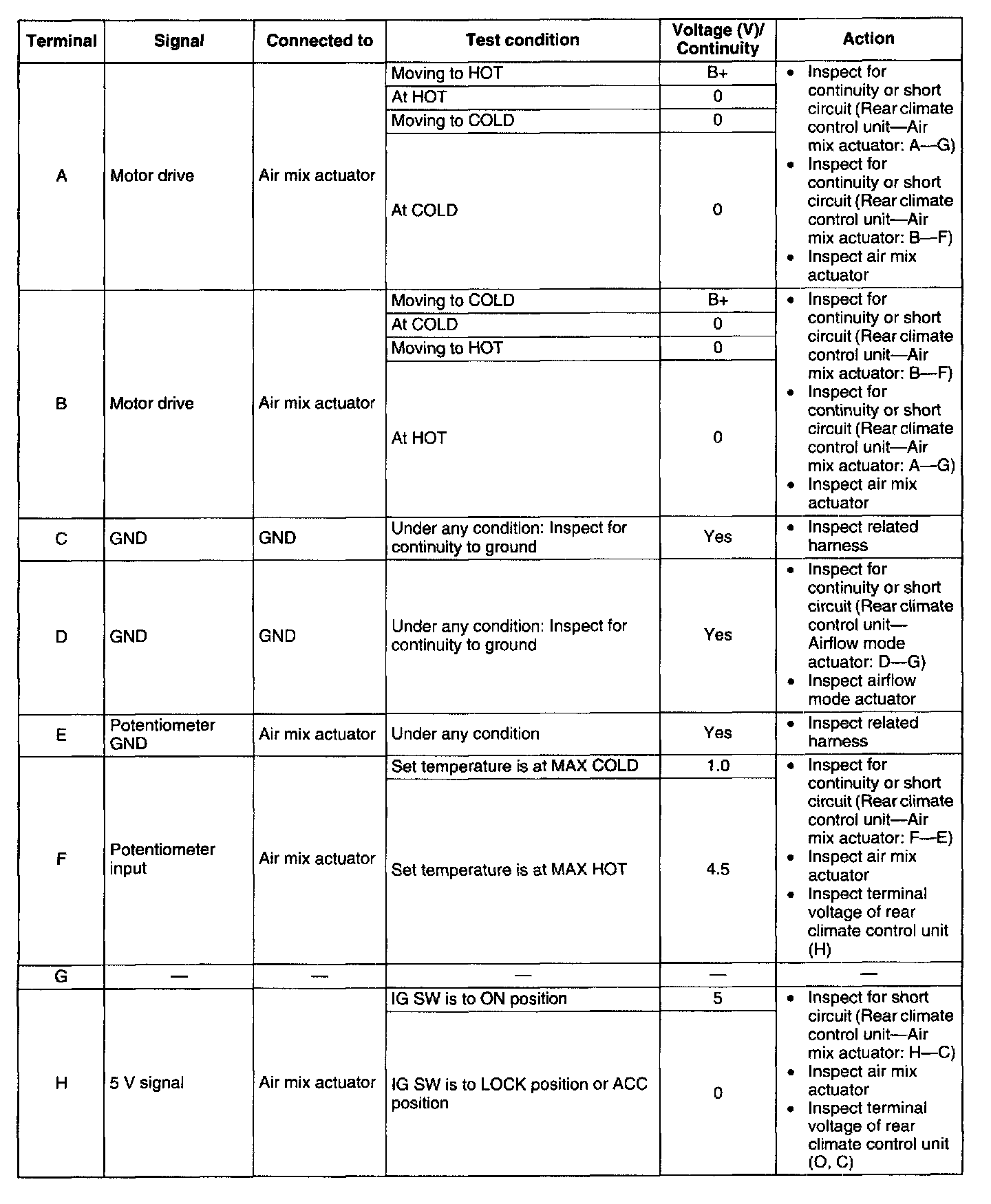

Terminal A - H:

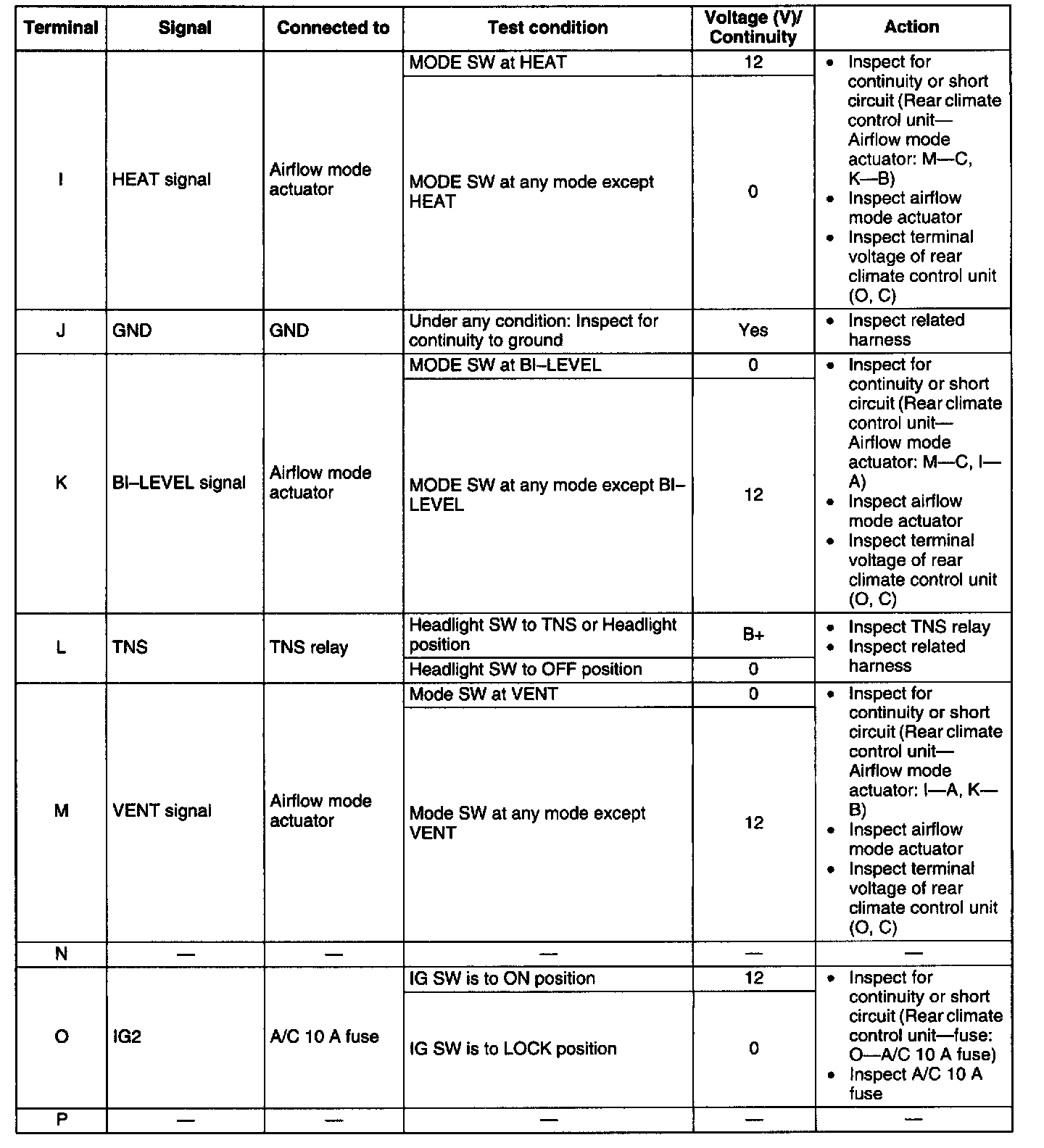

Terminal I - P:

Terminal voltage table (Reference)

With A/C Only or Heater Only

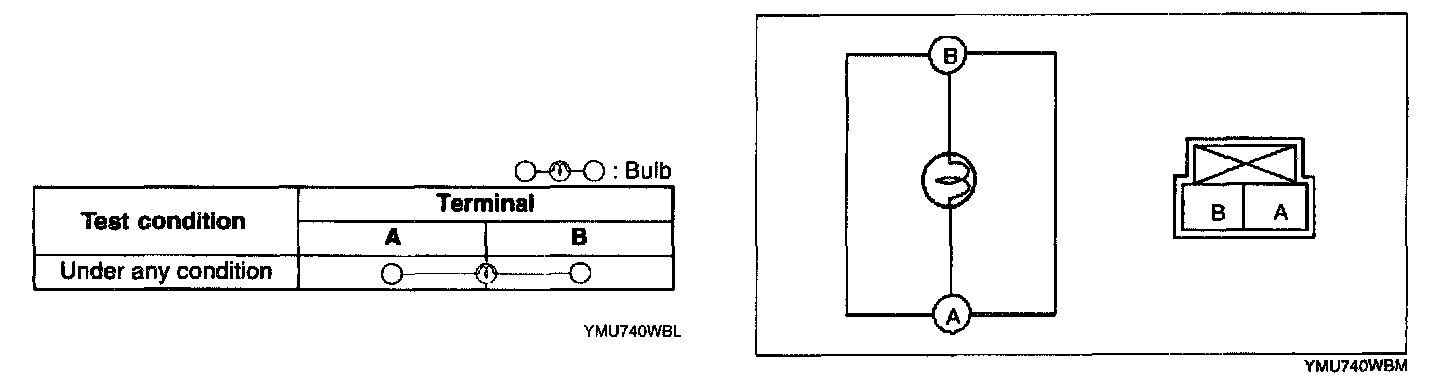

1. Connect the battery positive voltage to terminal B and ground to terminal A.
2. Verify that the bulb illuminates.
- If not as specified, replace the bulb.
